Jeans Laser Marking Machine Gld-150

Jeans Laser Marking Machine Gld-150

Laser engraving processing is a process based on CNC technology, laser beam as the processing media. Under the laser radiation, the material will be instantaneously melt and evaporate, achieve the laser engraving.



The characteristics of laser engraving:
1. It's a non-contact processing, avoid scratching or mechanical pressing the work pieces, won't be affected by mechanical motion, generally don't have to fix the working objects.

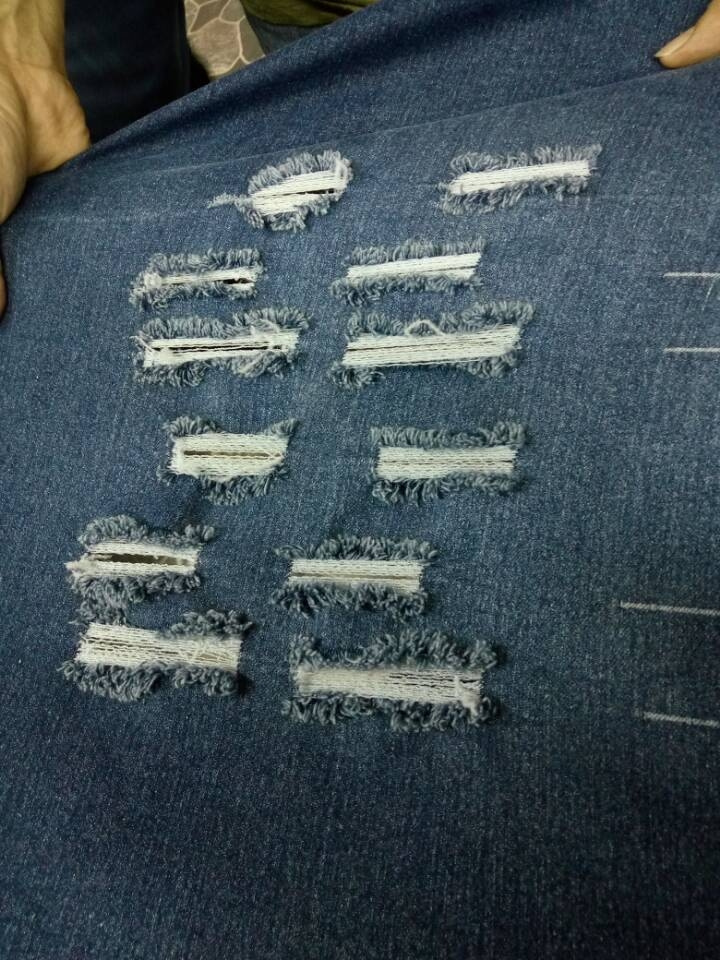

2. It won't be restricted by the elasticity and flexibility of materials, it's easy to laser engraving of soft materials, such as laser engraving on cloth, jeans.
3. High working accuracy, rapid working speed, and wide application.

Advantages of laser engraving:
1. Wide application: Almost any materials can be laser engraved.
2. High engraving quality: The laser processing accuracy can be ± 0.02mm.
3. Good production efficiency: Rapidly laser engraving as per the designs or patterns which exported from computer.
4. Saving cost: No consumable materials are requires.

Glorystar Laser supply a variety of laser engraving machine with trustable quality and reasonable for you.
Provide a material to us, we will return a beautiful sample with laser engraving to you.

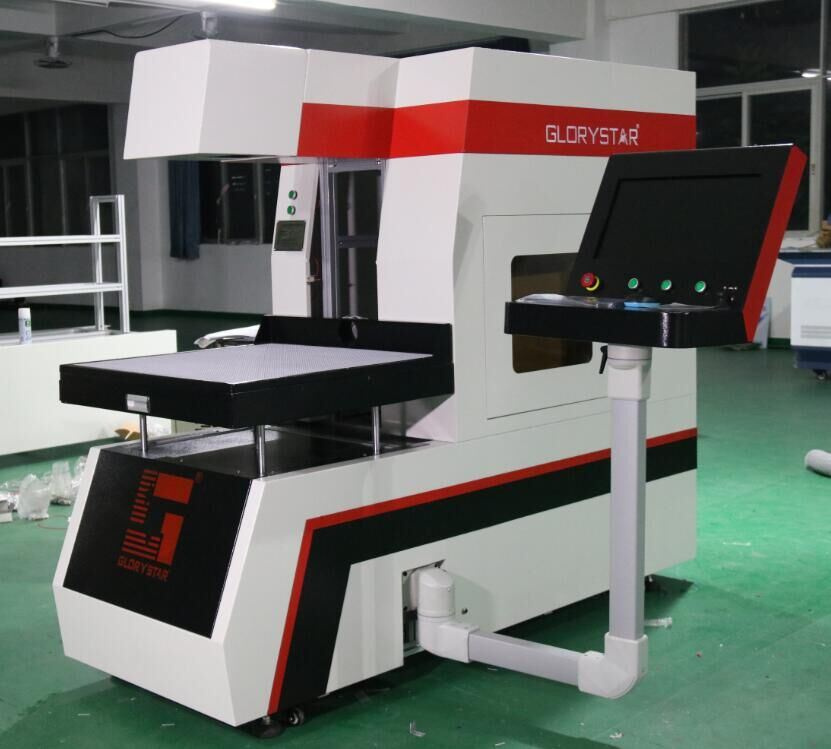

The GLD series adopt the Coherent or Rofin RF metal laser, which features large power, finer laser spot, stable power and long lifetime. The machine has been enabled to run smoothly with even longer lifetime by utilizing the dual water cooling system for RF laser generator and the expander lens. The USB interface bus is adopted with the MCU board, which supports the off-line operating, stepper motor with four axis X, Y, Z, and R, start-up and stop marking by external control. It also supports the Ture Type font, the letter, 1D barcode, 2D barcode, compatible to the normal format (bmp, jpg, tif), and the vector figures (plt, dxf).




Optical Design:
It adopts the whole-sealed laser optical system, free maintenance without adjustment. Therefore, it can be put into use whenever it is fixed.

Mechanical Design:

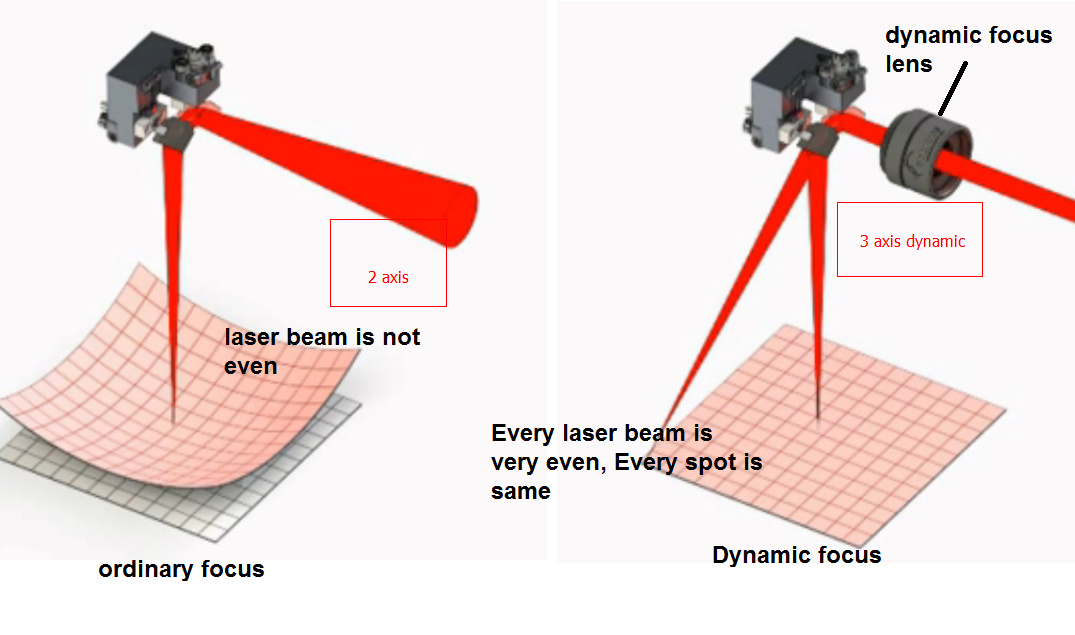

The 3 axes laser scanning system features compact structure, dust-proof, easy and accurate assembly, strong anti-jamming. It has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design, which ensures the stability of system under the conditions of long-time running.

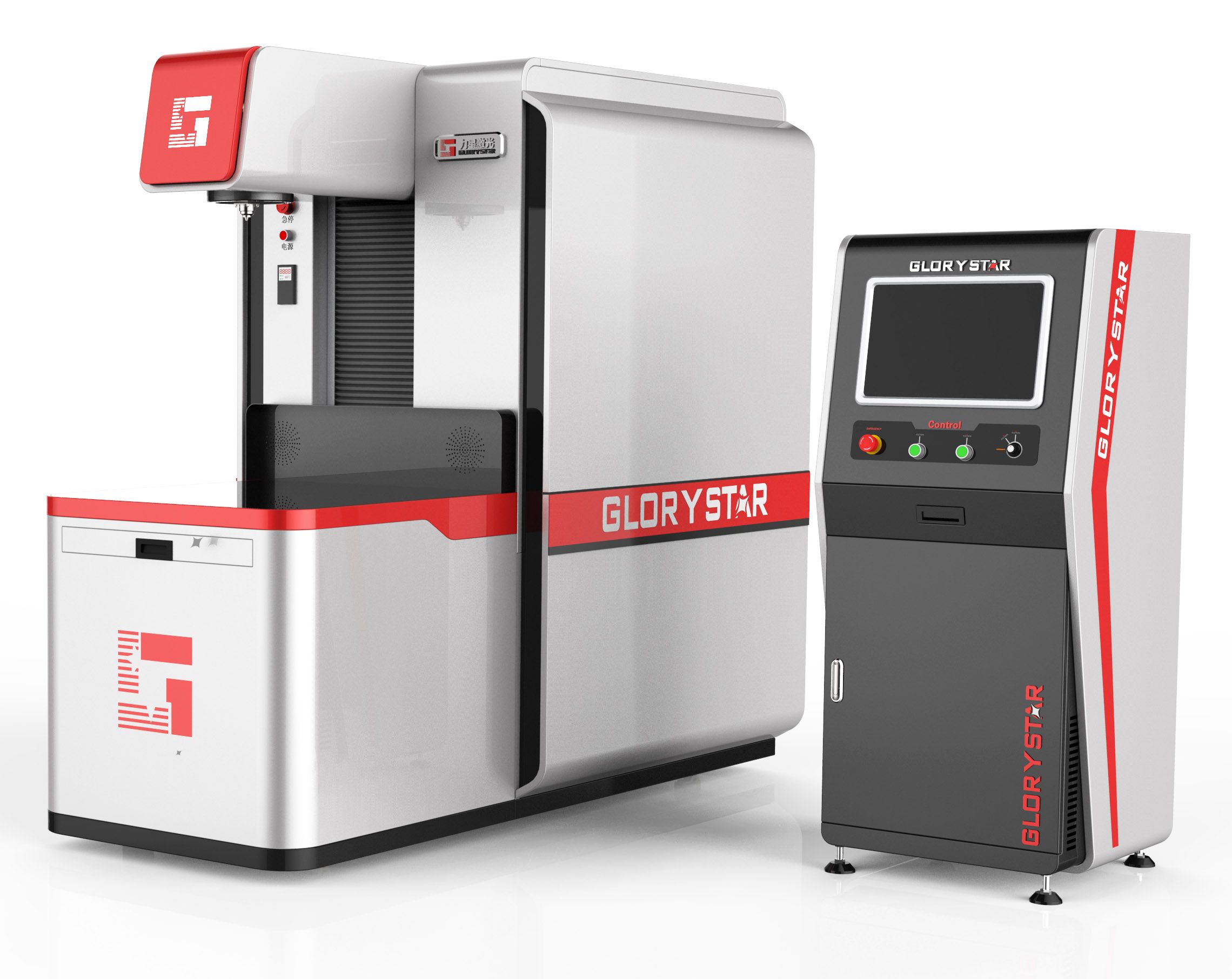

New Design


Application Industries:
Arts & crafts, bamboo and wooden products, advertisement decoration, plate making for leather and printing, architectural model and so on.

Applicable Materials:
Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade, crystal, fabric and other non-metal materials.

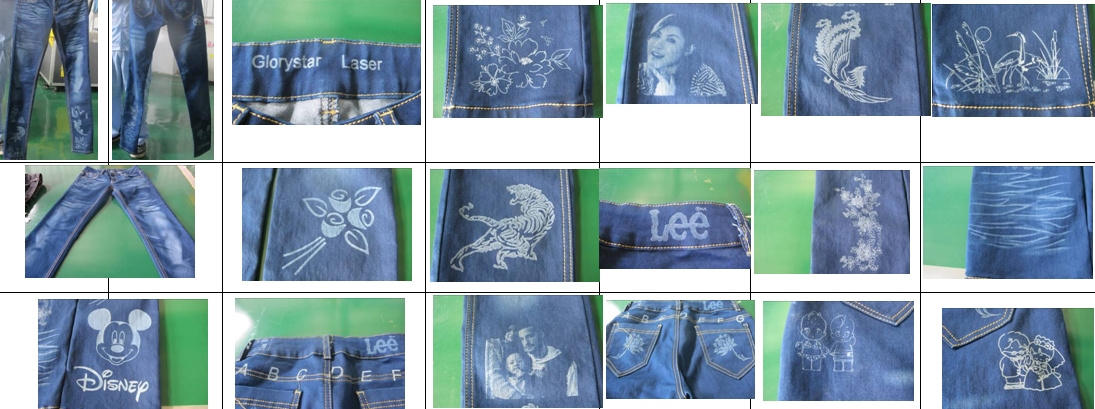

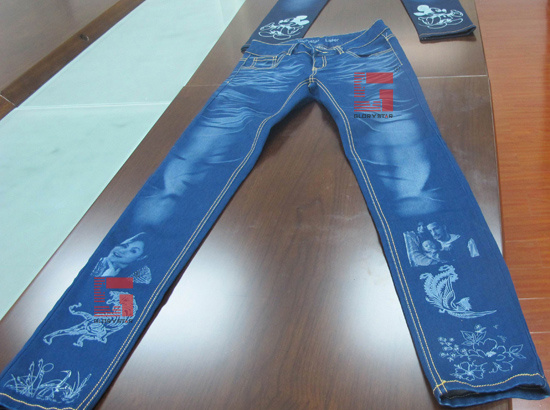

Sample Show






Technical Data

Model			GLD-100/150/275
Wavelength			10.64um
Average Power			100W/150W/275W
Marking Area			550mm*550mm / 650mm*650mm / 800mm*800mm
Max. Linear Speed			7000mm/s
Dynamic Axial Response Time			<4ms
Min. Character			1mm
Repeat Accuracy			±0.02mm
Cooling System			Water-cooling
Average Power Consumption			≤4K W
Power Voltage			AC220V 30A 50Hz(60Hz)
Marking Graph			User-defined character , CAD data
Supported Format			BMP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT
Humidity			45%-75%
Environment Temperature			10 ºC -30ºC
GLD-100	Working Area: 650mmX650mm	G.W.: 330KG		Packing Dimension: 1800X1600mmX1800mm
GLC-150	Working Area: 650mmX650mm	G.W.: 340KG		Packing Dimension: 2000X1600mmX1800mm
GLD-275	Working Area: 800mmX800mm	G.W.: 350KG		Packing Dimension: 2200X1600mmX1800mm
