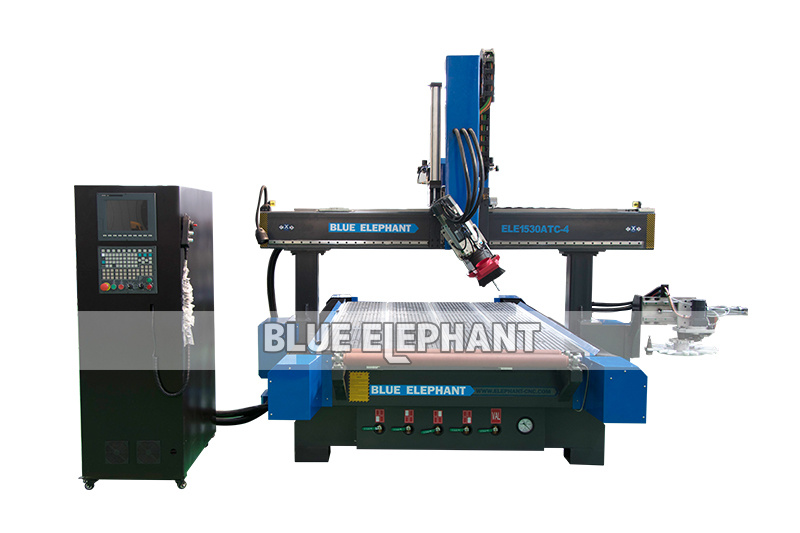

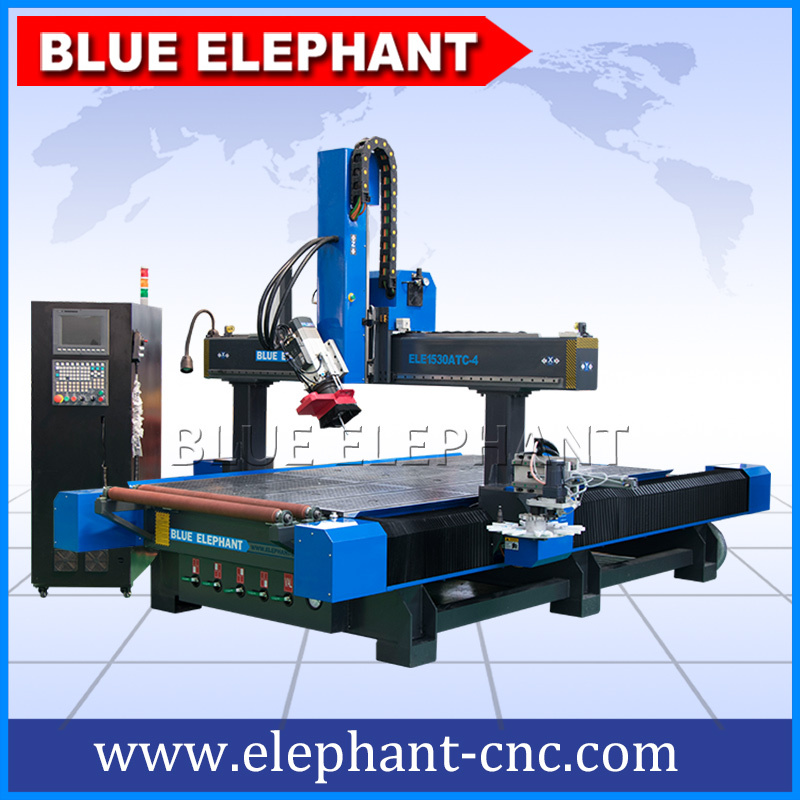

Jinan 1530atc-4 Atc CNC Wood Router CNC Engraving Machine

Jinan 1325 Atc CNC Wood Router CNC Engraving Machine

Features

• Effective working area: 1500*3000*400mm

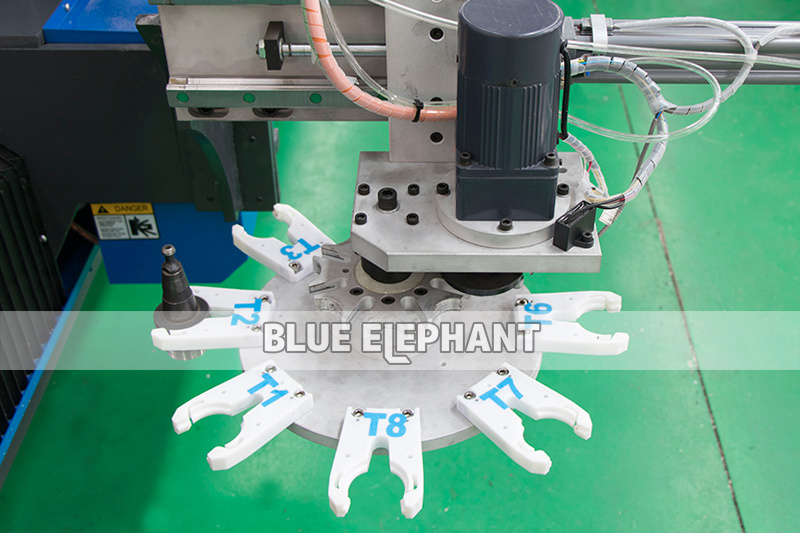

• Carousel type automatic tool changer
• 9kw Italy HSD ATC air cooling spindle, to swing 180 degree
• 11kw Taiwan Delta inverter
• Syntec 21MA control system
• Japan YASKAW 850w servo system and 1000w servo driver
• Japan reducer
• German Becker 4kw vacuum pump, kvt 3.140
• 1.5kw New type dust collector system with 2 bags
• Roller for 2 pieces
• ISO30 tool holder-10 pieces in total
• White tool clip---10 pieces in total
• Dust cover for Y axis
• Position cylinder---5 pieces
• Taiwan TBI ball screw
• Sweden Sweden SKF ABBA square linear guide for 25mm
• Automatic Tool sensor calibration
• Automatic oil lubrication system
• Vacuum & T-slot working table
• Japan Omron limit switch
• France Schneider safety switch
• Shanghai Cardiff cable
• UG Software
• Working voltage:380v 3phase 60HZ

Advantages

• Jinan fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree.
• 2 pieces roller in the front of table is customized for customer, which make mdf or wood plate get through table conveniently.
• Lots of our customer like adding dust cover on y axis or other axis, which save your much maintenance time. Just tell us what you need, we customize for you

Technical parameters

Product Details

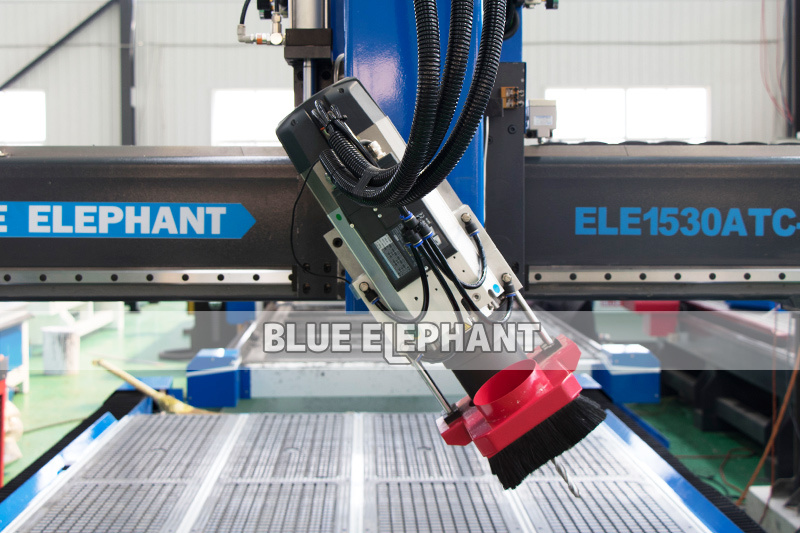

1. Spindle	Italy HSD Air Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM
2. Inverter	Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control.
3. Motor and Drive	Servo Motor Japan YASKAWA and Panasonic Motor.  high working efficiency and stable running promised
4. Control system	Taiwan SYNTEC Control System Imported SYNTEC high performance control system, separated keyboard control, color LCD display.
5. Transmission system	Taiwan TBI Ball Screw and Gear and Rack, Sweden HINWIN or ABBA Linear Rail HG series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.
6. Working table	T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.

Application&Samples:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Customers Feedback:


Packaging&Delivery

Packaging Details: 1.Outside package:Standard marine export plywood case.
                               2.inner package:Stretch film and plastic film for humidity.
                               We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

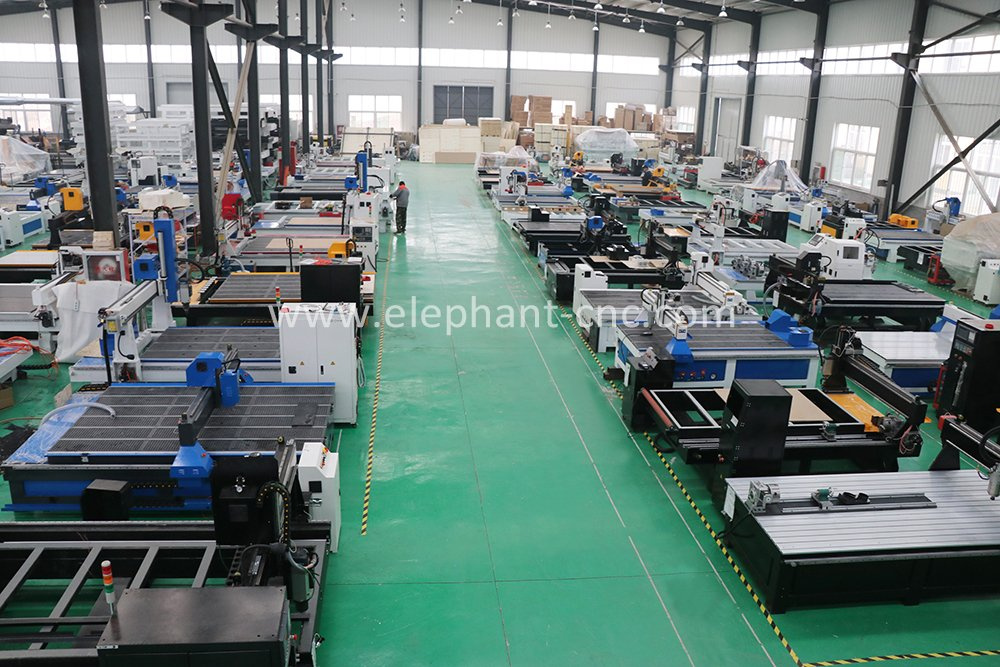

Our Factory:



• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.

Contact us:



Mobile: 0086-15064026772

Web: www.elephant-cnc.com
