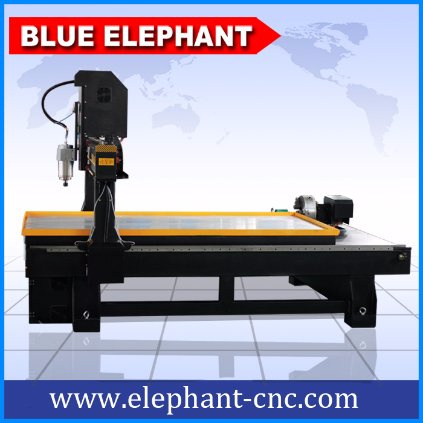

Jinan Discount Price Used Rotary Engraving Machines with 4axis CNC Wood Carving Machine
| Price: |
US $ 4999-9999set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Jinan Discount Price Used Rotary Engraving Machines with 4axis Cnc Wood Carving Machine
Advantage:1.DSP A18 4 axis control ststem
2.Well suitable for processing stone ,wood
3.The diameter of rotary axis is 300mm
4.The sink table of rotary device is made of stainless steel
5.Z axis is 400mm,Processing different materialsFeatures:1300*2500*400mm working area.
300mm rotary axis for cylinder wood stone carving.
5.5 kw Changsheng water cooling spindle.
5.5 kw Taiwan Delta Inverter.
DSP A18 control system support 4 axis working.
1 kw Japan YASKAWA drive and motor.Details:
Technical Parameters:| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x400mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | Welded Structure |
| 6 | X, Y Structure | #20 HINWIN linear guide,helical rack |
| 7 | Z Structure | Hiwin Rail Linear guide and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 33000mm/min |
| 10 | Max. Working Speed | 25000mm/min |
| 11 | Spindle Power | 5.5 KW |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | YASKAWA |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP A18 4 axis control system |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | <0.01mm |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0 - 45 Centigrade |
| 23 | Relative Humidity | 30% - 75% |

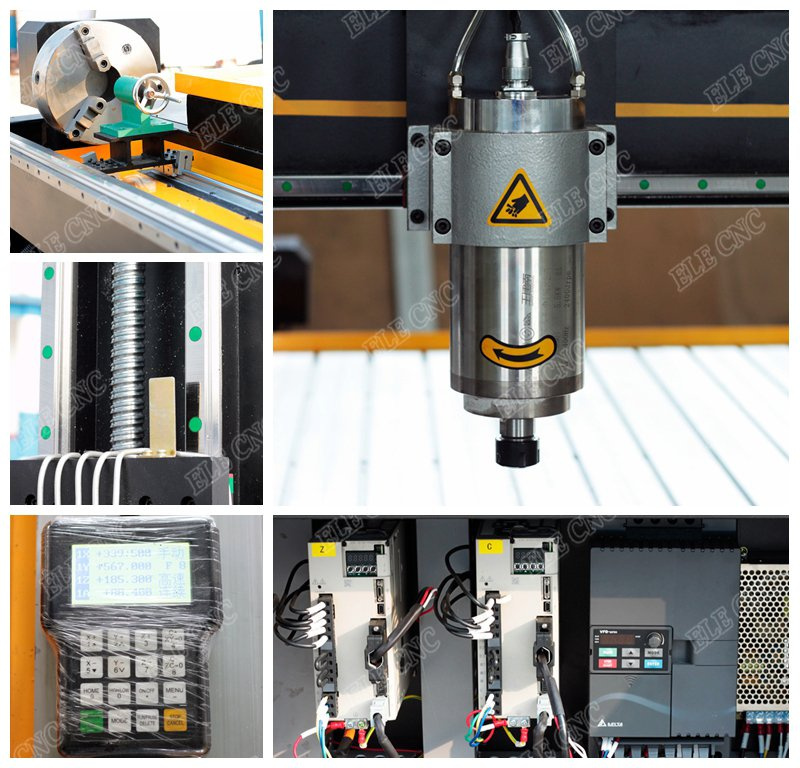

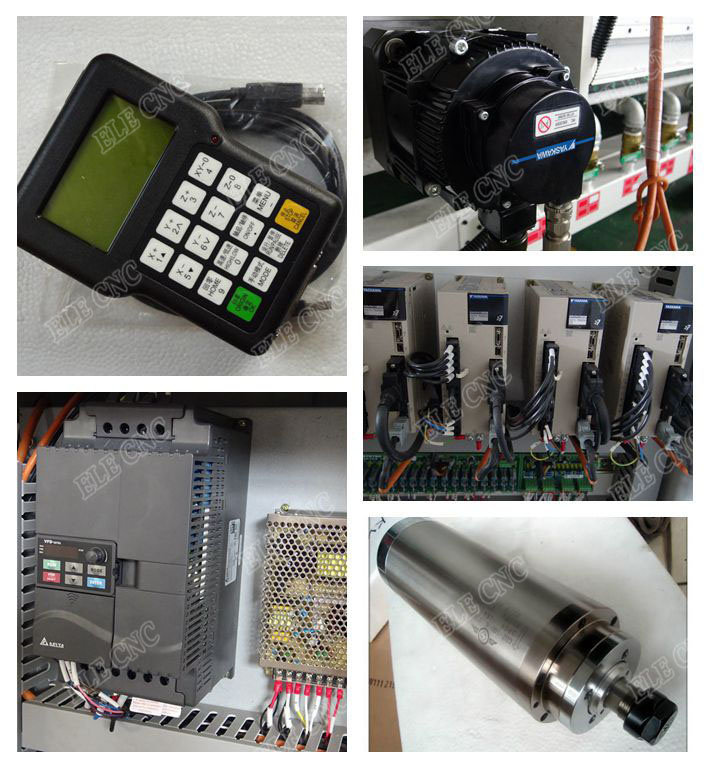

Parts:
Application
1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Stone,Cylindrical object
Our Services1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.

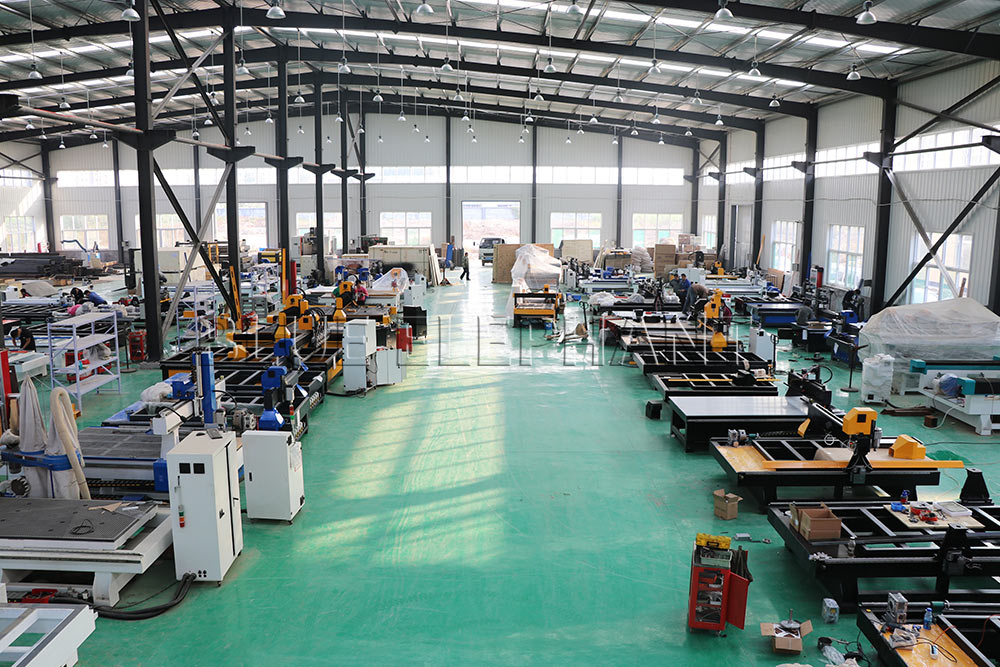

8.Machine will be adjusted before it is delivered , operation disk/CD was included.Our Factory
Contace Us
Manager: Emma
Web: www.elephant-cnc.com
Mobile : 0086-15064026772
Tel: 86-531-66564918

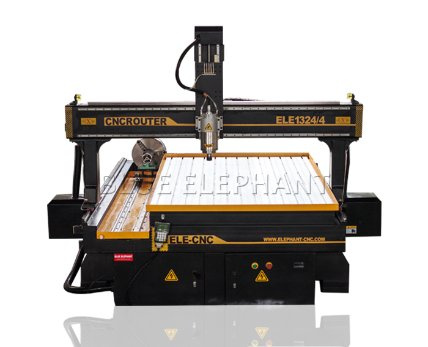

| Prod Model: |
ELE 1324 |
| Voltage: |
AC380V/3pH/50Hz(220V for Optional) |
| Dimension(L*W*H): |
3700*2140*1850mm |
| Control System: |
DSP A18 4 Axis System |
| Inverter: |
5.5 Kw Delta |
| Spindle Power: |
5.5 Water Cooling Spindle |
| X,Y Structure: |
#20 Hinwin Linear Guide, Helical Rack |
| Y Structure: |
Tbi Ball Screw, Hinwin Linear Guide |
| Driver Mortors: |
1kw Japan Yaskawa |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
