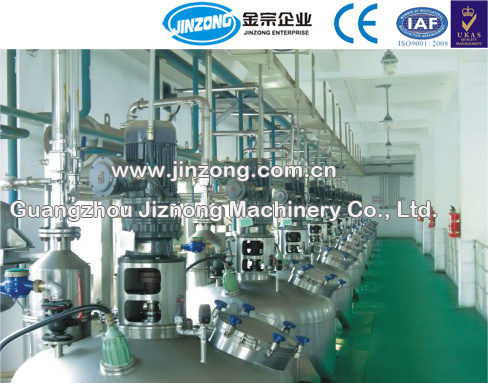

Jinzong Machinery Stainless Steel Liquid Chemical Mixers*Application:1. Cosmetic industry: shampoo, liquid soap, bath shower, body lotion, dish washing, hand washing, lubricating oil, fabric softener, liquid cloth cleaner etc.
2. Food industry: Fruit drink, juice,
dairy products, milk product and other liquid food.3. Pharmaceutical industry:
4. Chemical industry: Perfume, paint, coatings,
pesticide etc.
*Mixing tank functionOperating principle: Break down or recombined the materials through mixing, heating and cooling, to promote mixing uniformly and quickly.Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.Auxiliary Equipment: high speed homogenizer, high speed disperser etc..Applicable Field: All the liquid-liquid, liquid-powder mixing industry.
Our company is an enterprise specialized in designing and manufacturing reaction kettles,
we can design and manufacture various types of mixing tank for users.
*Main parameters and configuration
1) nominal volume:50L-20000L and other general specifications and non-standard design and production.
2) the structure of the form: vertical, the use of conical, oval, dish shaped head, also apply to the need to close the heating, mixing, reaction, enzymatic hydrolysis and other process operation.
3) jacket forms: hollow heat conducting oil or water), semicircular coil pipe, honeycomb jacket (on demand system), heating or cooling efficiency is high.
4) insulation material: filling pearl cotton, rock wool, polyurethane foam, with good thermal insulation effect.
5) exterior surface of the cylinder body: use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
6) stirring device: at the top of the tank in the (partial) heart stirring, stirring side; agitator types: frame type, anchor type, push type, blade, scraping wall blade etc.
7) stirring speed: Low speed stirrer, high speed disperser or high speed homognizer.
8) level meter form: glass tube liquid level gauge, static pressure sensing type liquid level meter and so on (for selection).
9) feet form: adjustable three pyramid form or cylindrical tube.
10) equipment accessories configuration: quick open sanitary manhole, mirror, (liquid crystal digital display type or dial pointer type) thermometer, respirators, CIP cleaning machines, material liquid inlet and outlet, circular mouth, hot and cold media import and export interface, the nozzle can be according to the process of selection may increase or decrease).
11) tank equipment material: SUS304 or SUS316L SUS304 or Q235-B; jacket; cover cylinder for SUS304.
| Composition | Instructions |
| Specification (L) | 50-50000 |
| Design Pressure (Mpa) | Atmospheric Pressure or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc. |
| Cooling Forms | Refrigeration medium in the internal pipe jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | Polished or no polished |
| Discharge Valve | Flanged ball valve, open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2, |
| Platform | Custom-made of standard-made |
| Pipeline and valves | Custom-made according to actual production site |

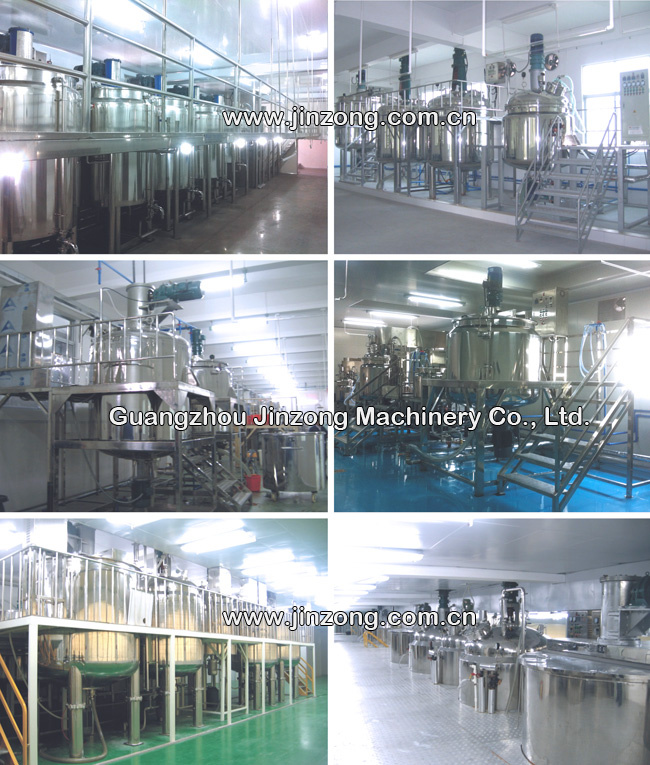

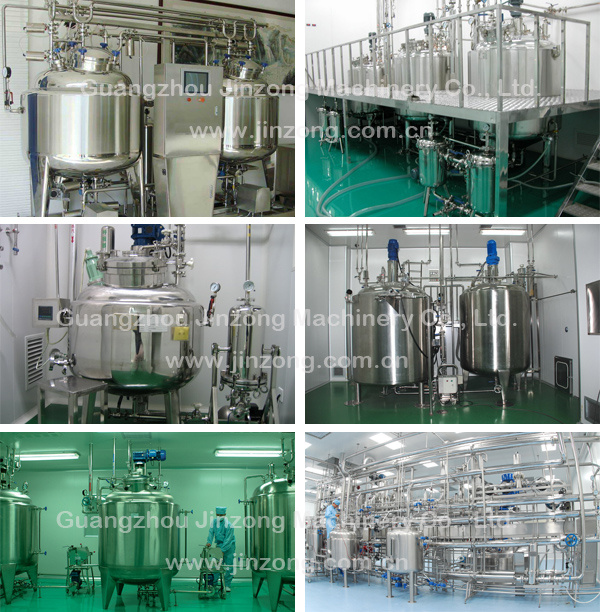

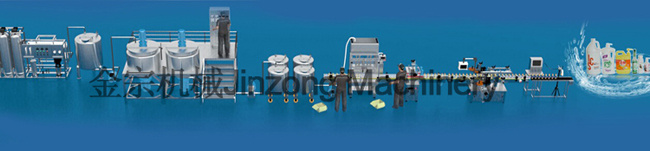

*Semiautomatic or Automatic production lineOur semi-automatic series & Automatic series Production Line has win the acknolwledge by many big enterprise, such as Guangzhou LangQi, Guangzhou LIBY, Guangzhou Tianqi etc.
Our production line is specially designed according to user's production technics and condition, and our company can provide from design, production, installment to raw material supply, which means the complete process of the project.

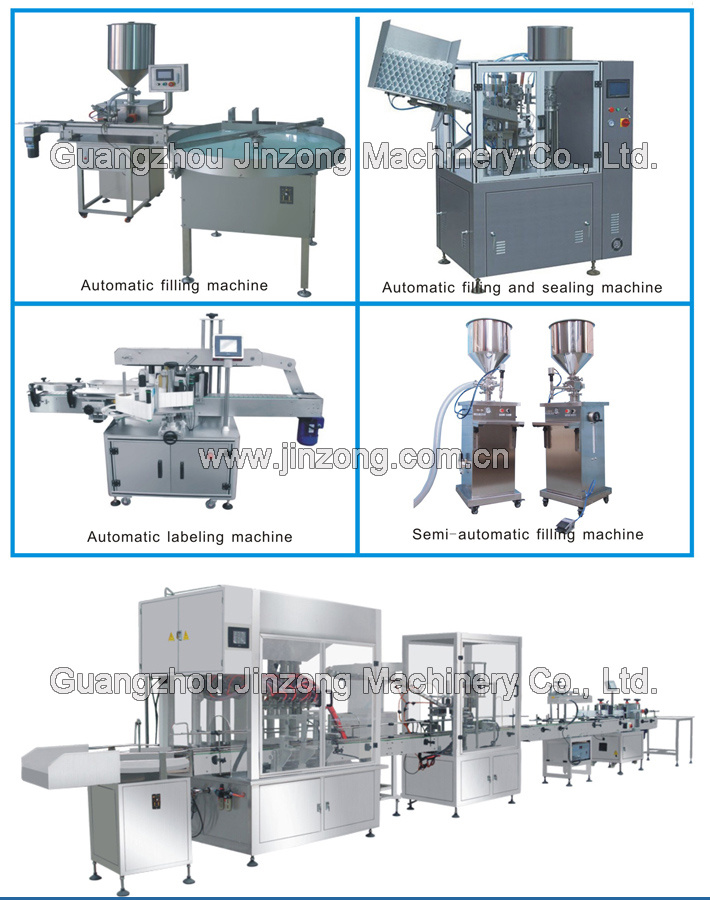

*Packaging equipmentPlease let me know your bottles' size and shape, cap's size and shape, label's shape, we will make a complete solution according to your requirements for you!
*Our strength 1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team. 5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*About us:Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*After-sales service:1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*
ONE-STOP SERVICESAccording to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
Jinzong Machinery Co., Ltd. Specializes in manufacturing of process emulsifiers, reactors, disperser, mills, mixers, blenders, liquid-and-powder dosing systems, production system lines as well as undertaking the project construction EPC General Contractor for related industries. We provide extensive service for industries such as daily cosmetic, coating, paints, resin, adhesives, food, medicine, pesticides, and textile auxiliaries etc. Our products and service are well received by more than 6, 000 customers from over 80 countries around all over the world.
Jinzong Machinery Co., Ltd. is engaged in development R&D, sales and service for single-machine and complete production line., It is a high-tech enterprise in Guangdong Province and it has been devoting itself to product innovation and its annual R & D cost comes up to 3% of the annual turnover. Now it has acquired many invention patent and utility model patent and also has obtained awards in Guangdong Province for several times for innovation and technology transforming to achievements So far, we have formed a full range of products.
In recent years, our company has attracted a large number of excellent R&D talents and technicians, introduced advanced machining equipment and cooperated with colleges, universities and scientific research institutes such as Guangdong University of Technology to research and develop internationally advanced JRGD High-efficiency vacuum emulsifing machine, JRKB Automatic vacuum emulsifying machine, MFE intelligent high-efficiency paint production units, water-based PU resin plant, various reaction kettles, whole-set resin equipment and etc.
Jinzong Machinery Co., Ltd. is engaged in the production and manufacturing of mechanical equipment. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company we have also passed the recheck procedure in 2014. Currently, we have 2 processing bases, they are in Zhaoqing city(covering an area of more than 17000 square meters), Shaoguan city, covering an area of more than 30, 000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year, which giving strong support to undertake business of production system line and project EPC General contracting...Up to now, all core machinery are with CE Certificate.
Jinzong has been a quality conscious organization since the very first day. We understand the value of the money and faith, shown by our clients in our company so we are determined to provide them an excellent quality. In the last 20 years, we have proved it and created a large client base across the world. We follow rigorous quality measures, so that we deliver defect free machines to
Our clients. We have installed latest laboratory and quality testing facilities, which enables us to check our machines for their performance.
We check our machines on following parameters:
A)Durability
B)Efficiency
C)Capability of withstanding high pressure
D)Functionality
By consistently keeping to professional operation concept, Jinzong Machinery will continue to provide you with service quality of a higher level. We are elaborately carving and presenting the best in the aspects of product design, manufacturing and product quality. The 100% customer satisfaction services system is started to provide you with the most considerate and perfect integral project service and build the 'one-stop service' system.
