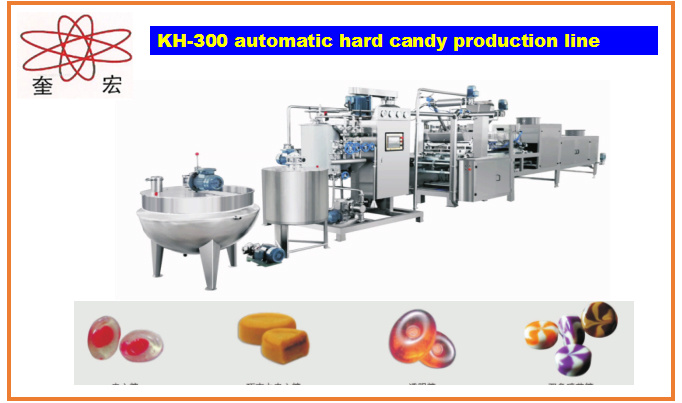

1.KH-300 small scale candy making machine description
The automatic PLC controlled candy vacuum micro-film cooking continuous depositing and forming production line is currentity the most advanced hard candy production equipment in china.it can produce single-color,double-taste double-color flower candies,crystal candies,filled candies,stripe candies,scotch,etc.
A.The sanitary structure designed and manufactured meets GMP requirements
B.PLC programmable process control available for candy vacuum cooking temperature and time ,depositing temperature and depositing speed.
C.LED touch screen displays process flow and realizes easy operation.
D.Rationed filling and mixing of essence,pigment and acid solution can be completed on the line.
E.The conveying chain,cooling system and double se-molding device guarantee the de-molding of candy.
F.Different shaped candies can be made via change-over of the molds
G. Optional choice of extra chocolate paste injection system for making chocolate-central filled candies
2.KH-300 small scale candy making machine main parameters
| Model | KH-150 | KH-300 | KH-450 | KH-600 |
| Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Weight each candy | MAX.6g | MAX.6g | MAX.6g | MAX.6g |
| Depositing speed | 40-55n/min | 40-55n/min | 40-55n/min | 40-55n/min |
| Steam consumption | 250kg/h | 300kg/h | 400kg/h | 450kg/h |
| Steam pressure | 0.2-0.4mpa | 0.2-0.4mpa | 0.2-0.4mpa | 0.2-0.4mpa |
| Indoor temperature | 20-25 C0 | 20-25 C0 | 20-25 C0 | 20-25 C0 |
| Humidity | 55% | 55% | 55% | 55% |
| Compressed air consumption | 0.2m3/min | 0.2m3/min | 0.2m3/min | 0.2m3/min |
| Compressed air pressure | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa |
| Total electric power | 12kw/380v | 12kw/380v | 12kw/380v | 12kw/380v |
| Total length | 12.5m | 14m | 15m | 18m |

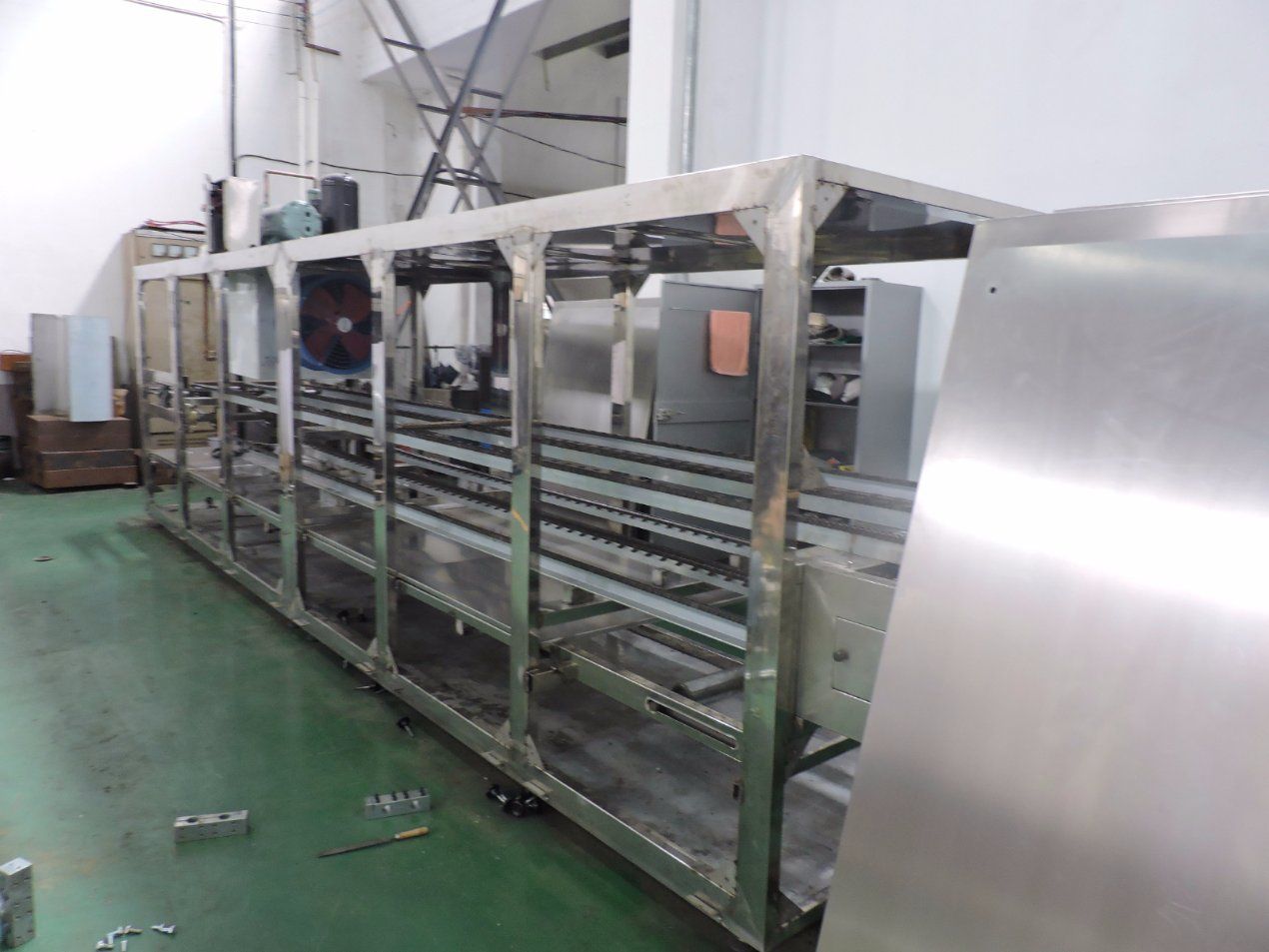

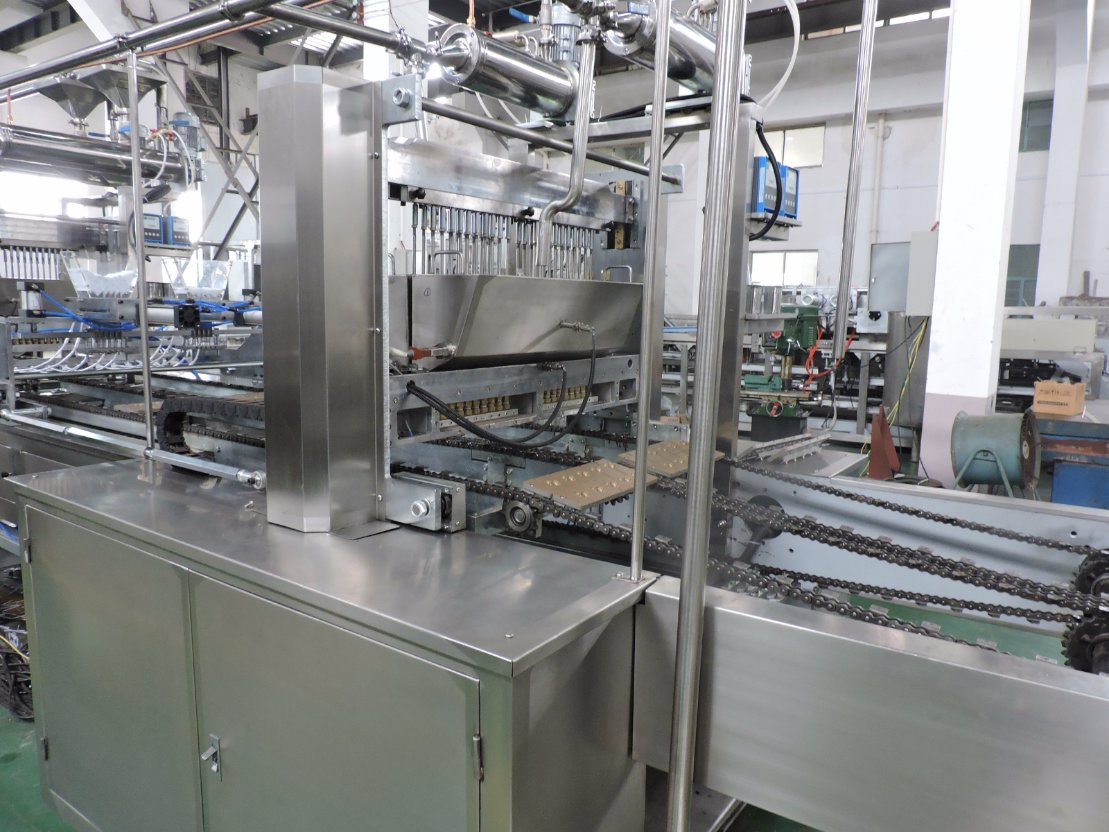

3.KH-300 small scale candy making machine part photo
4.KH-300 small scale candy making machine finished sample
5.Our packing and shipping
6.Our service
The plant layout design, assembling and installation, start-up and local team training will be free at no cost. But the buyer should be responsible for the round-air tickets, local transportation, board & lodging, and US$40/day per person for the pocket money to our technicians. The testing people will be two persons, and will cost 30days.
2.Utilities
The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.
3.Warranty
The seller guarantees the quality of the products for 12months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery; the seller will replace the parts or send the technicians to go to the buyer's site for repairing and maintenance for FREE. If the defaults are aroused by the defaulted operations of the buyer, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
7.Contact us and get your inquiry Now !
As the direct factory, KH is always trying the best to improve our technology and service, we will also give you the best factory price as we could!
Kuihong food machine will give you warm welcome to visit our factory !
Contact sales---Amanda
Mobile :0086 18221489541
| Prod Model: | KH-300 |
|---|---|
| Capacity: | 80-150kg/H |
| Labour: | 2-3 |
| Raw Material: | SUS304 |
| Motor: | Siemens or Chinese Famous Brand |
| Depositing Speed: | 40-55n/Min |
| Total Length: | 30m |
| Warranty: | One Year for Free |
| After Sale Service: | Engineers Available to Service Machinery Overseas |
| Working Type: | Continuous |
| Candy Shapes: | Various |
| Application: | Candy |
| Customized: | Customized |
