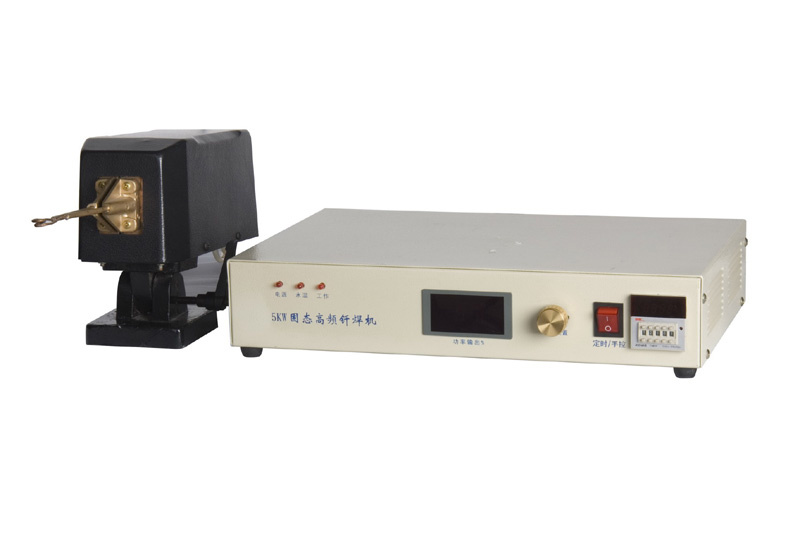

KIS superhigh frequency induction heating equipment has such features as high frequency (the minimum heated welding diameter is 0.1mm), small size, light weight low failure rate and conservation of energy(it can save the power 70% as compared with glass-ceramic vacuum tube high frequency heating equipment). Furthermore, it can ensure the solid welding point which is pleasing and delicate is appearance, integral geometric configuration, perfect surface grain, compete crystal structure of internal metal part. Limited annealing range and crimination of obvious weld knot. It is widely applied to the welding of couples and inserts used in metal glass manufacturing as well as electric appliance and electric industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles and art wares.
Application:
1. Welding of big and small gears of hard alloy saw blade;
2. Welding and annealing of spectacle frame and fitting;
3. Welding of jewelleries, clock and watch;
4. Electric industry(tin and silver soldering of fine wire, various electronic elements);
5. Electromechanical industry(silver and braze welding of fine metal joints as well as quench tempering for mini motor shaft);
6. Wire material industry(annealing of wire material and sheet band);
7. Welding of cutting tools as well as tempering for paper cutter and shoe knife blade;
8. Toy industry( tempering for wind spring and thin metal sheet)
| Model | KIS-3KW | KIS-6KW | KIS-8KW | KIS-10KW | KIS-20KW | KIS-40KW | KIS-60KW |
| Input Voltage | Single phase 220V 50/60Hz | Three phase 380V 50/60Hz |
| Max output power | 3KW | 6KW | 8KW | 10KW | 20KW | 40KW | 60KW |
| Max input current | 14A | 28A | 35A | 15A | 30A | 60A | 90A |
| Frequency | 0.5-1.1
Mhz | 0.2-1.1
Mhz | 0.2-1.1
Mhz | 200-500
Khz | 50-250
Khz | 50-200
Khz | 50-150
Khz |
| Cooling water pressure | 0.5Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.3Mpa | 0.3Mpa | 0.5Mpa |
| Input water temperature | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC | <40ºC |
| Duty cycle | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
