Laser Engraving & Cutting Machine

Laser Engraving & Cutting Machine
Price: US $ 1000-3000/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: T/T

Product Specifications


Prod Model: TZJD-1390
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: Laser Engraving Machine
Control: Automatic
Current: AC
Laser Type: CO2
Usage: Plastic
Color: White, Blue, Also as Demands
Working Area: 1300mm*900mm
Guide Rail: Taiwan Hiwin Linear Guide Rail
Working Table: Honeycomb, Kinife-Bar
Software: Lasercut

Product Description

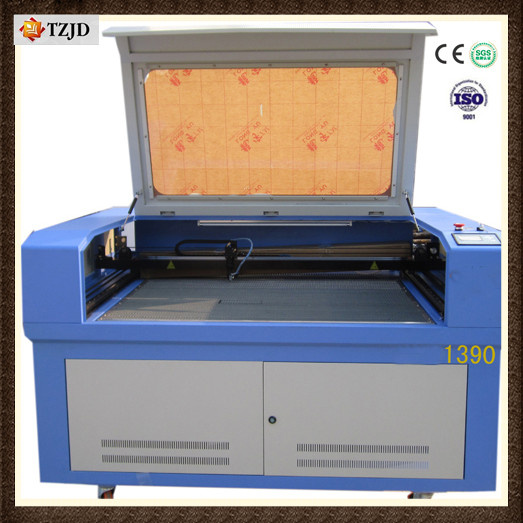

Laser Engraving & Cutting machine


1. Continuous & rapid curve cutting function; Selecting shortest path function.

2. Adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type, and the life time of the laser tube can be over 10000 hours.

3. The mechanical structure is strong and stable, making the machine to run at high precision.

4. The electrical ability is stable, the engraving speed is high, and the precision is high.

5. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.

6. LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.

7. USB Interface, with mass storage device; Improve working-speed & working efficiency.

8. Taiwan HIWIN linear guide rail & high-speed stepper motor drivers, the engraving/cutting edges were all smoothly enough.

Applicable industry:
Label processing, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry, packing industry, etc.

Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, etc.

Model TZJD-1390
Working  area 1300mm*900mm
Laser  power 60w/80w/100w/130w/150w,
Laser  type CO2  Sealed  laser  tube  ,   10.6μ m,   water-cooled

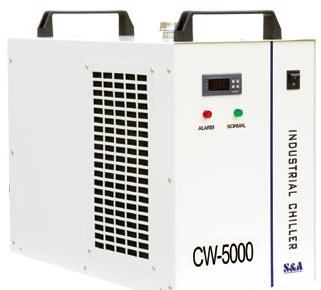

Cooling  type Water-cooling/Water  chiller
Engraving  speed 0-60000mm/min
Cutting  speed 0-50000mm/min
Total  power 2KW/H
Drive  motors Stepper/Servo(option)
Laser  output  control 0-100%  set  by  software
Min.   engraving  size Chinese:   2.0mm*2.0mm,       English  letter:     1.0mm*1.0mm
Highest  scanning  precision 4000DPI
Locating  accuracy ≤ +0.01mm
Controlling  software DSP  control  system
Operating  software LaserCut
Graphic  format  supported DST  PLT  BMP  DXF  DWG  AI  LAS, etc
Compatible  software CORELDRAW, PHOTOSHOP,   AUTOCAD, TAJIMA, etc.
Color  separation Yes
Drive  system High-precision  3-phase  stepper  motor

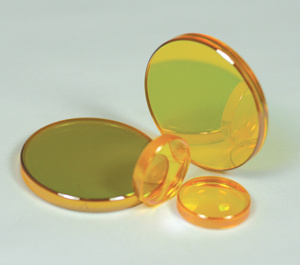

Auxiliary  equipments Exhaust  fan  and  air  exhaust  pipe,   red-dot  position  system,   focus  lens  &   reflection  mirrors,   auto-focus  device,   up  &   down  device.
Power  supply Ac110v/AC220V± 10%,   50HZ/60HZ
Working  environment Temperature: 0-45,   Humidity  5-95%(No  condensate  water)
Working  table Honeycomb  table/Knife  bar
Interface PCI  USB
Machine  available rotary  device,   etc.
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.

Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.

Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
