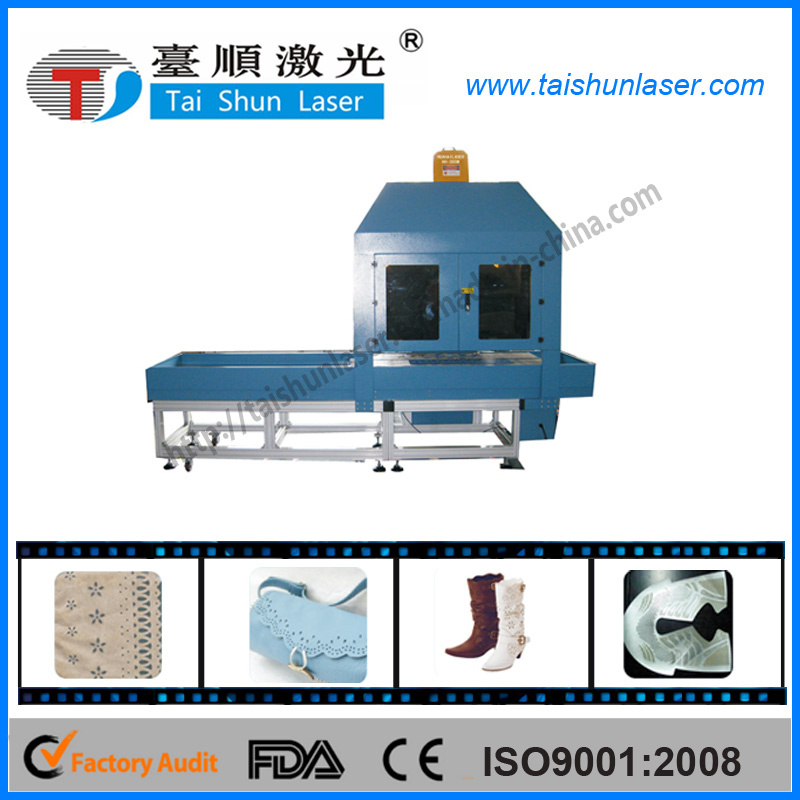

CO2 3D laser Marking Machine
>>>Equipment feature
1. Full sealed and maintenance free laser optic system. You can use it at installation without adjustment.
2. It adopts the original imported RF laser, makes the machine enjoys a life time more than 20k hours.
3. The working efficiency is 20% higher than other similar machines with high precision and high speed marking performance.
4. External dual cycle industrial cooling water system enables the whole machine run more stably with lower power consumption.
5. The strict multiple protection control design applies to a wide range of working environment temperature, it ensures 24 hours continuous and reliable working of the laser marking system.
6. Under Windows interface, it can compatible with a variety of software output files, such like Auto CAD, Core Draw, Photoshop. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF front. It support automatic coding, serial number, batch number, date, bar code and two-dimensional code marking.
7. Especially suitable for engraving and marking on stones and leather materials.
8. This new appearance laser marking machine adopts laptop as the controller. The area is small for this special installation structure.
9. The workbench is stationary, we make the laser goes up and down, so the operator can sit on the desk all the time while working.
>>>Application (Materials& Industry)
1.Application Industries
Footwear, apparel, arts & crafts, bamboo and wooden products, advertisement decoration, packing, architectural model and so on.
2.Materials
Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade, crystal, fabric and other non-metal materials
>>>Technical index
Machine Type |
CO2 Laser Marking Machine |
Machine Model | Tsm150wc |
| Laser power | 100W/150W |
| Laser Type | American RF CO2 Laser Tube | China Glass Laser Tube |
Laser Tube life Time |
45000+ hours |
1500~3000 hours |
Standard Working Area: |
500mm×500 mm |
Optional Working Area: |
500mm×500 mm, 1000mm×1000 mm |
Marking Depth: |
0.01~0.3mm |
Marking Speed: |
7000mm/second |
Repeated Accuracy: |
0.01mm |
Laser Wavelength: |
10.64um |
Minimum Line Width: |
0.015mm |
Power Supply: |
380V/220(50Hz-60Hz) |
Machine Power: |
1.2KW |
Dimensions
(L×W×H) |
Laser Optical System |
240×1280×1200 (mm) |
Control Cabinet |
590×560×800 (mm) |
Water-cooling System |
540×700×900 (mm) |
>>>Company information
1. Supported by the government of Wuhan City
2. Has its own R & D center, update for technology
3. We are the manufacturer, our price are the most competitive!
4. With 20 years history on researching and producing all kinds of laser machines
5. Our company welcomes AGENTS all over the world
>>>After-sale service
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
