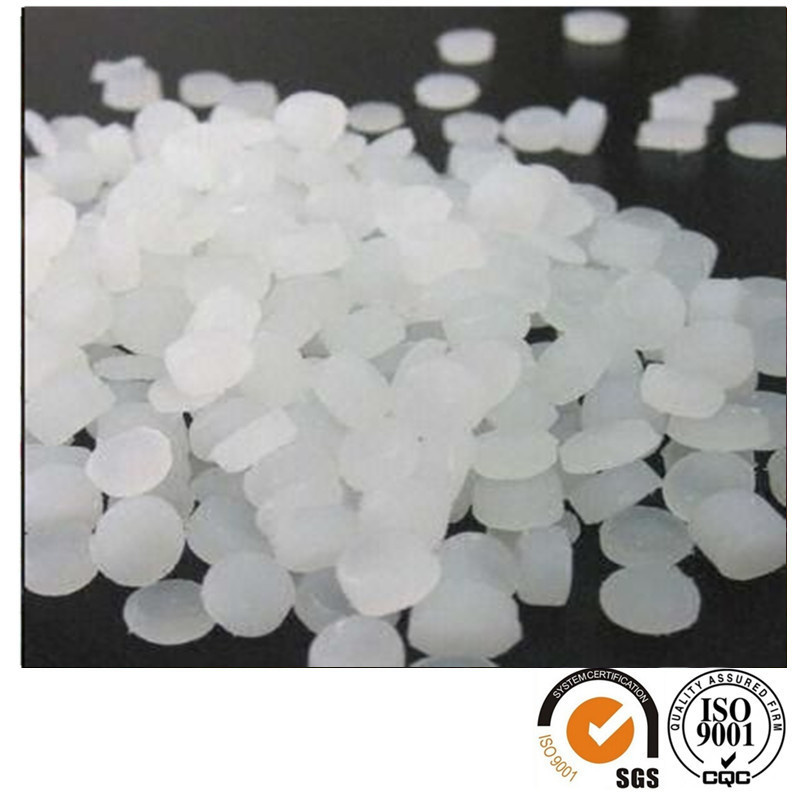

Light High Platform Shoe Sole TPR Raw Material Plastic Granule

TPRgranule/tprraw material /thermolastic rubbertpr

TPRgranule/tprraw material /thermolastic rubbertpr Product Description

JSD1021ZH is environmental friendly, Halogen-free flame-retardant thermoplastic elastomer(TPE/TPR) compounds.

Meets stringent UL criteria for flame retardance, and provides flexibility and toughness over a broad temperature range.

Applied to the VDE,CCC,TUV standard Vehicle exterior charging cable.

TPRgranule/tprraw material /thermolastic rubbertpr  Features
   -Excellent flexibility
   -Superior heat resistance & cold resistance
   -Superior flame retardancy
   -Resist-bending white
   -Halogen-free, no red phosphorus
   -Anti-tarnish
   -Low proportion, use less material to save cost.

TPRgranule/tprraw material /thermolastic rubbertpr Specification


Property	Unit	JSD1021ZH	Test Method
		Enterprise standard
Hardness	A	83±3A	ASTM D2240
Density	g/cm3	1.0±0.05	ASTM D792
Melt Index/230ºC/5kg	g/10min	≥0.2	ASTM D1238
Tensile strength	MPa	≥10	ASTM D638
Elongation at break	%	≥400	ASTM D638
Aging property	ºC×h	150×240	UL1581
		No crack, no leak copper	UL1581
Volume resistivity (20ºC)	Ω.cm	≥1×1014	IEC60093
Brittle	ºC	≤-60	ISO 974
Anti-tear (pants)	N/mm	≥15	ISO 6722
Thermal class	ºC	125	UL 1581



Test Item	Test Standard	Unit	Test Result
Hardness	Din785	Shore A	65
Density	Din792	g/cm3	0.98
Tear Resistance	Din624	kg/cm	6
Tensile strength	Din2209	kg/cm2	95
Elongation	Din638	%	500
Flow Fate	Din1238	g/10 min	23

Properties	Test method	Unit	Typical values
Specific gravity	ASTM D792	G/cm	1.21
Hardness	JIS K6301	A	70
Tensile strength	ASTM D412	Mpa	3
The elongation	ASTM D412	%	138
Flow index	ASTM D1238	g/10min	10E

TPRgranule/tprraw material /thermolastic rubbertpr Application area
Shoe soles: children shoe soles,women shoe soles,men shoe soles,leather shoe soles,snow boots soles, thin shoe soles,thick shoe soles
Hand tools: hammer handles,  pinchers,cutting tools
Toothbrush handles:various types of toothbrush handles
Carpets/Mats: Car carpets,floor carpets,Yoga carpets
Pen grippers: All kinds of rubber pen grippers


TPRgranule/tprraw material /thermolastic rubbertpr Specifications
1. excellent Uvioresistant and weather-resistance
2.low temperature resistance(sixty degress below zero centigrade still have a good flexibility)
3.acid and alkali resistance
4.excellent anti-vibration and good viscosity
5.wear-resistance
6.feel good,well skid proof ,non-sticky
7.great rebound resilience ,well elongation, excellent tear strength
8.scrap can be 100% recycled and put back to use and the function will not be damaged
