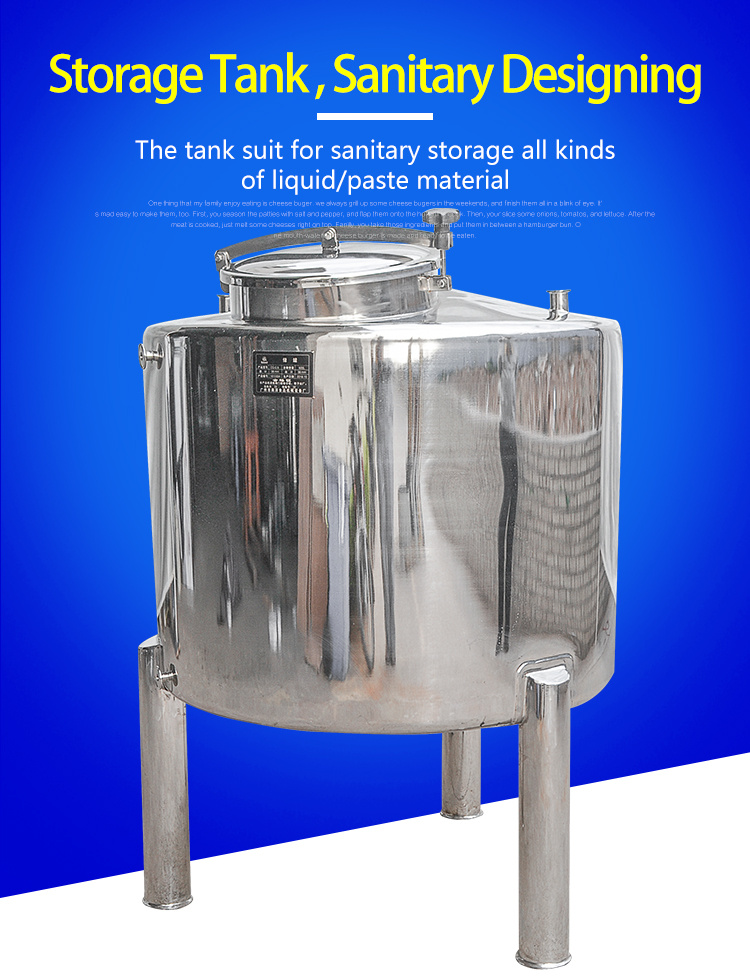

Made of SUS 304 Storage Tank, with Glass Liquid Gauge, Sealing Well No Leakage, CIP Rorating
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Description
Storage tankApplication:it Is mainly applicable to the production steps such as hydrolysis, neutralization, crystal, distillation, and storing etc in the industries of medicine(materials workshop, synthesizing workshop), chemical industry, food, light industry and so on.

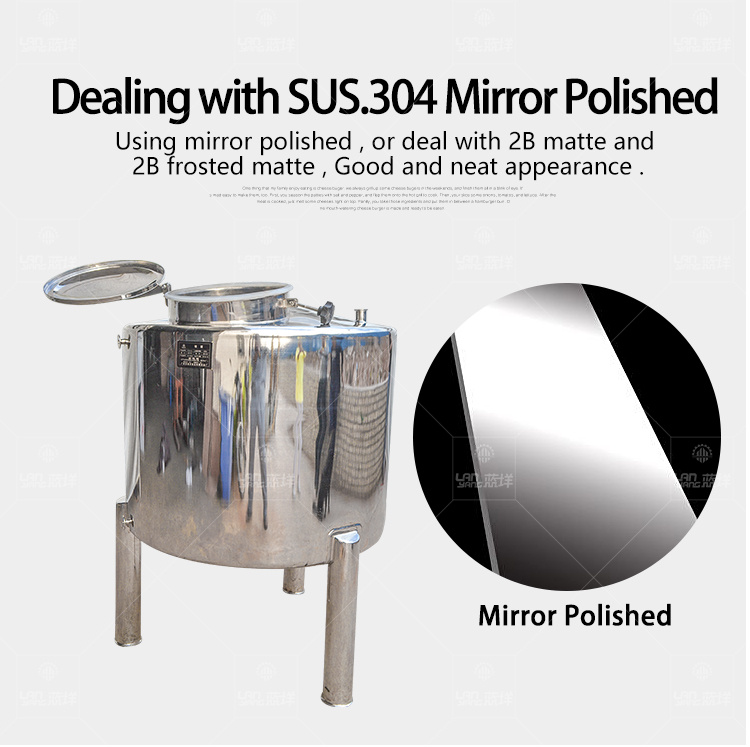

The series of SS. Storage tanks are made of stainless steel (SUS304 or SUS316L). All joints and inside is mirror finished without any dead angle and cleaned easily.
Structure: Single Layer, Double Layers or Three Layers are available.
Accessories: Cleaning ball, Manhole, sight glass, thermometer etc.

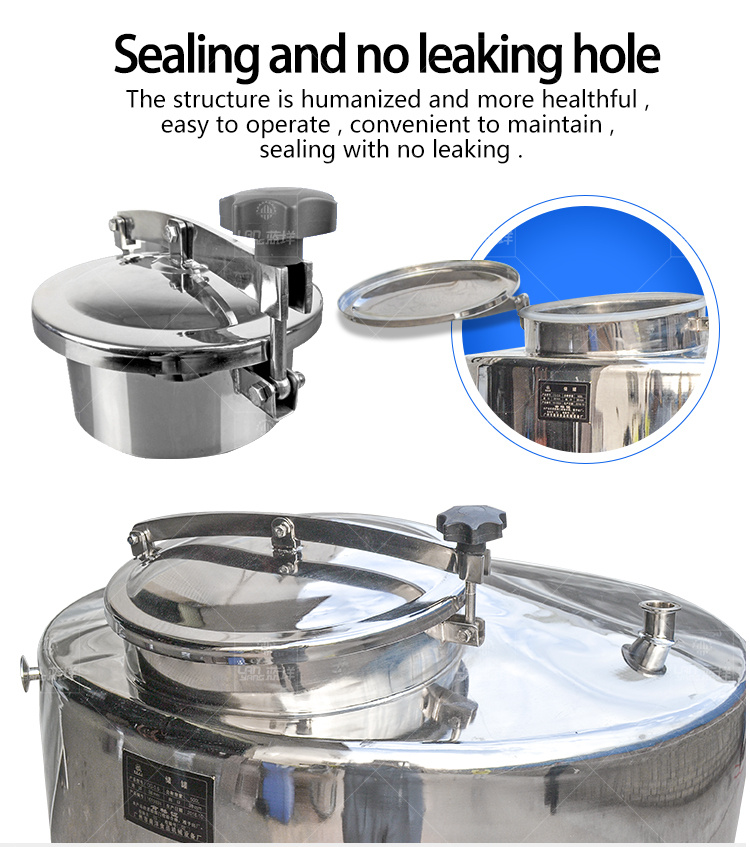

It is sealed type, and the material contacting the liquid is the stainless steel 304 or 316L
A self-rotating type cleaning ball.
A set of liquidometer
A 0-100 thermometer

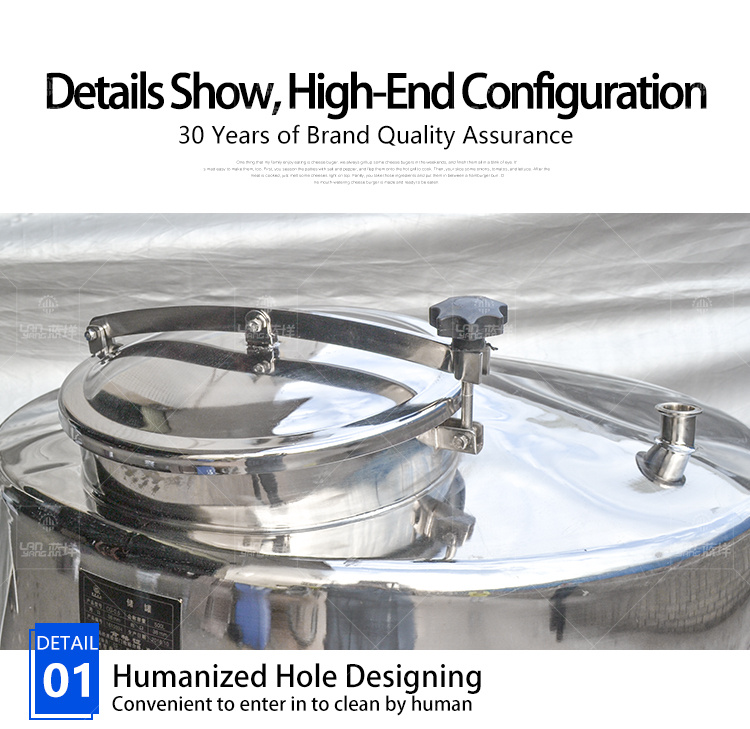

Manhole 450mm
A 100mm sight glass
A 036V light
Model
Specification | FYF-
100 | FYF-
200 | FYF-
500 | FYF-
1000 | FYF-
1500 | FYF-
2000 | FYF-
2500 | FYF-
3000 | FYF-
4000 | FYF-
5000 |
| Volume(L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Nominal diameter(mm) | 500 | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 |
| Nominal pressure in kettle(Mpa) | 0.5 |
| Nominal pressure of jacket(Mpa) | 0.250.6 |
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Rotation speed(r/min) | 36 | | 63 | | 85 | | | 130 | | 180 |
Guangzhou Lanyan Machinery Co., Ltd since the early 19th, the introduction of advanced technoloty and scientific research institutions at home and abroad. And has a number of advanced processing equipment and design professional and technical personnel. Is committed to the powdered mix equipment; Cream, liquid filling equipment; Common processing equipment and vacuum emulsification equipment, set design and manufacture, sales, engineering, installation, technical advice and after-sales service in one enterprise. From the production to the development of the whole single project, installation and after-sales service matures and grow. Our products are widely used in food, pharmaceutical, bi9otechnology, chemical, cosmetic and high-tech research and enterprises in various industries.
Lanyang Machinery spirit of " professionalism, integrity, development and win-win" business philosophy, to science and technology, customer requirements for the guidelines to a comprehensive service for the protection for different customer needs in different production conditions and capabilities, providing the most convenient, economical and reasonalbe project budget and advanced technical support, completely solve the customer's worries, to further meet the needs of our customers.
" To meet customer requirements, enhance customer satisfaction" is our prusuit of purpose. Designed to help customers success is our driving force to improve the level of manufacturing and development. We are willing to cooperate with new and lold customers, common prosperity and development.
We are sincerely willing to establishing business relationships with you.
