Magnetron Sputtering PVD Vacuum Coating Machine

Name: Magnetron Sputtering PVD Vacuum Coating Machine
Brand: china-crystals.com
SKU: 642569315
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 30000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

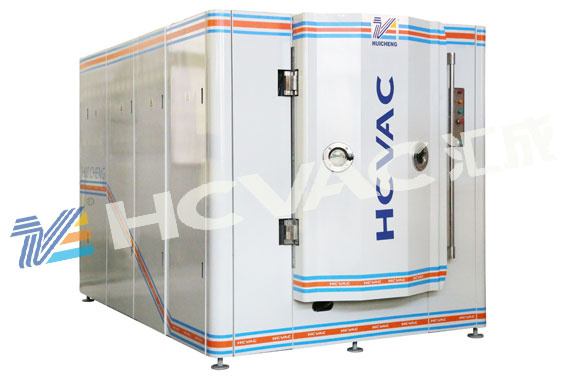

Magnetron sputtering PVD vacuum coating machine

What is magnetron sputtering technology?

Magnetron sputtering is another form of PVD coating technology.

Magnetron sputtering technology is characterized by:

A water-cooled target, so little radiation heat is generated
Almost any metallic target material can be sputtered without decomposition
Non-conductive materials can be sputtered by using radio frequency (RF)
Or medium frequency (MF) power
Oxide coatings can be sputtered (reactive sputtering)
Excellent layer uniformity
Very smooth sputtered coatings (no droplets)
Cathodes (of up to 2 meter long) can be put in any position, therefore high
Flexibility of sputtering equipment design

Huicheng manufactures and supplies all kinds of PVD vacuum coating machines. Now it is a market leader in the high-vacuum treatment field with customers from all around the world. Huicheng produces a complete range of machinery, offering different types of processes: High vacuum evaporation, multi-arc, DC sputtering, MF magnetron sputtering, continuous magnetron sputtering line etc.

Applied industries:

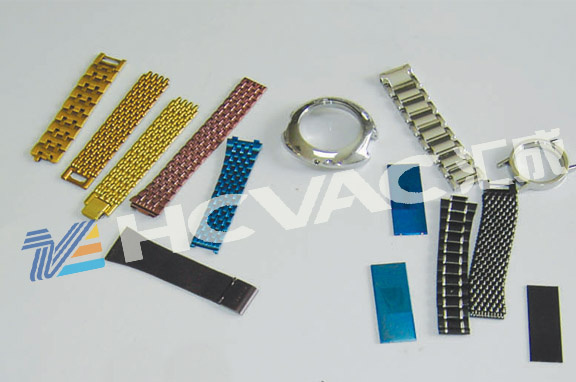

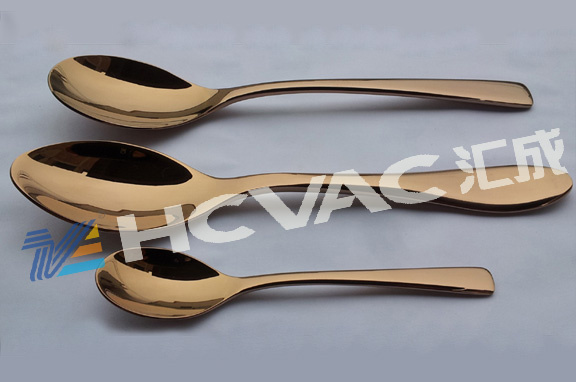

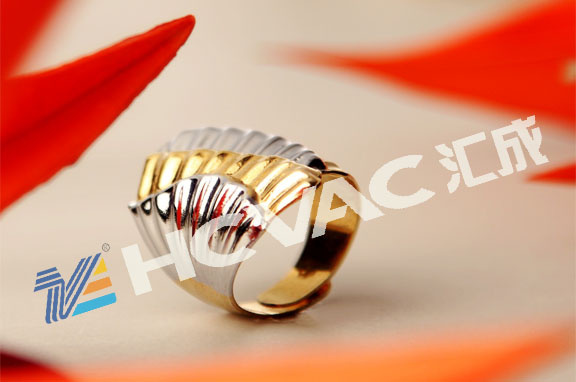

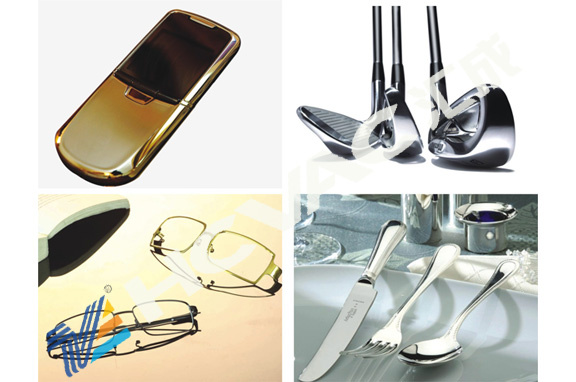

Surface vacuum coating for watch&clock, jewelries, tools, plastic, stainless steel sheet etc.

The coating experts of your own company:Full set solution for the coating production

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.

ISO 9001 standard to ensure the quality can meet the customer's requirements.

Please feel free to contact us for further information!

Specifications:

Mode Dimension	JTL-900	JTL-1100	JTL-1300	JTL-1600
	Φ9001000mm	Φ11001000mm	Φ13001200 mm	Φ16001200 mm
Coating mode and main confirguration	3 electric-arc+2 pairs of plane rectangular cathode	6 electric-arc+2 pairs of cylindrical cathode	5 electric-arc+4 pairs of cylindrical cathode	6 electric-arc+8 pairs of cylindrical cathode
Film Types	Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films
Power source	Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply.
Process gas control	Quality flowmeter + electromagnetism ceramic valve

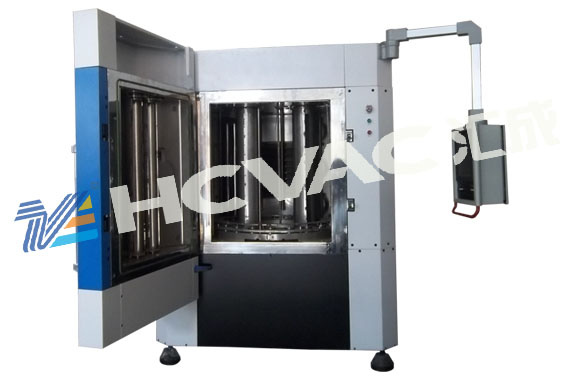

Vacuum chamber structure	Vertical single(side) door, pump system postposition, double water-cooling
Vacuum system	Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10-4Pa)
Pumping speed	Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Full automation control system PC+PLC/PC+HMI
Remark	We can design the dimension of the equipment according to customers special technique requirement.

Prod Model:	JTL-0910, JTL-1110, JTL-1212
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name Of The Machine:	Magnetron Sputtering PVD Vacuum Coating Machine
Type:	Coating Production Line
Coating:	Vacuum Coating
Substrate:	Glass,Ceramic,Metal,Steel,Mosaic,Crystal Ect
