Medical Equipment Digital Ultrasound 3D/4D Color Doppler Ultrasound

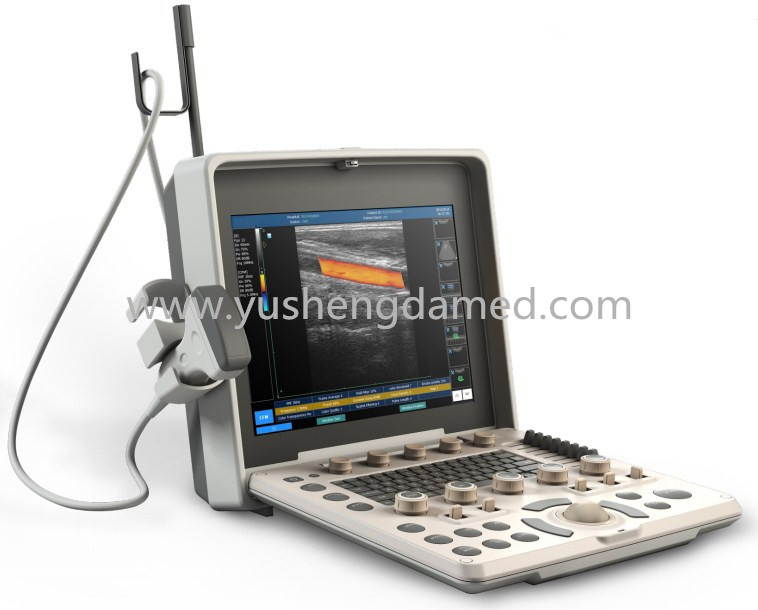

YSD286 Portable Color Doppler Ultrasound System

Slim and Smart
YSD286 is based  on the Fifth technology platform, which is a latest protable  color Doppler ultrasound system. YSD286 is one not  only with advanced image processing technology  but also practical clinical solutions.

System Specifications:

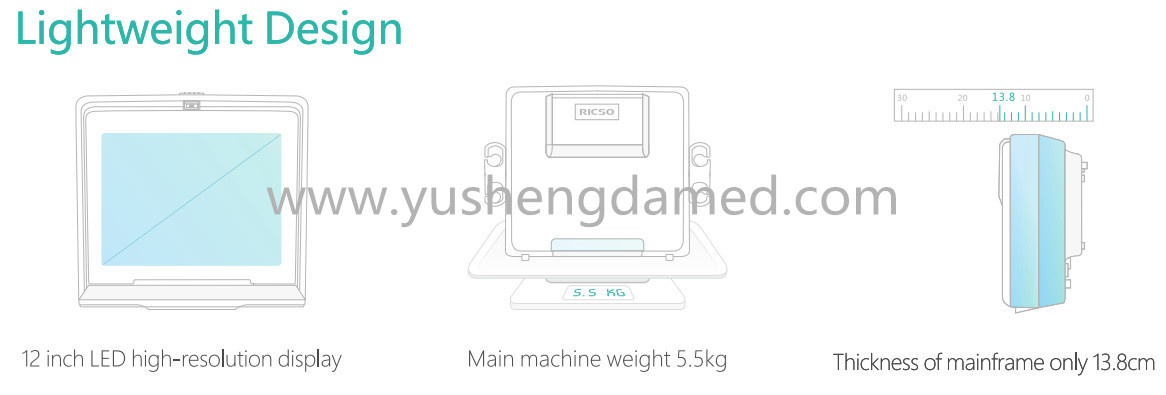

Net Weight: 5.5 kg (with battery)
Dimensions: 29.8*31.8*13.8cm
Display: 12.1-inch LED
Display Language: English
Power: System operates via AC power
Large capacity Li-battery:
-11.1V, 8000MAH;
-up to 1000 times charge-discharge,2 hours fully charged
-Removable
-2.5 hours regular use
-Auto switch to battery power in case of suddenly power off

Keyboard

Display Modes and Imaging Processing:
Broadband, multi-frequency imaging:
B, 2B, 4B, B+M, CFM, PDI, DPDI, PW,
B+PW(Duplex)
B+CFM/PDI/DPDI+PW(Triplex)
Image processing:

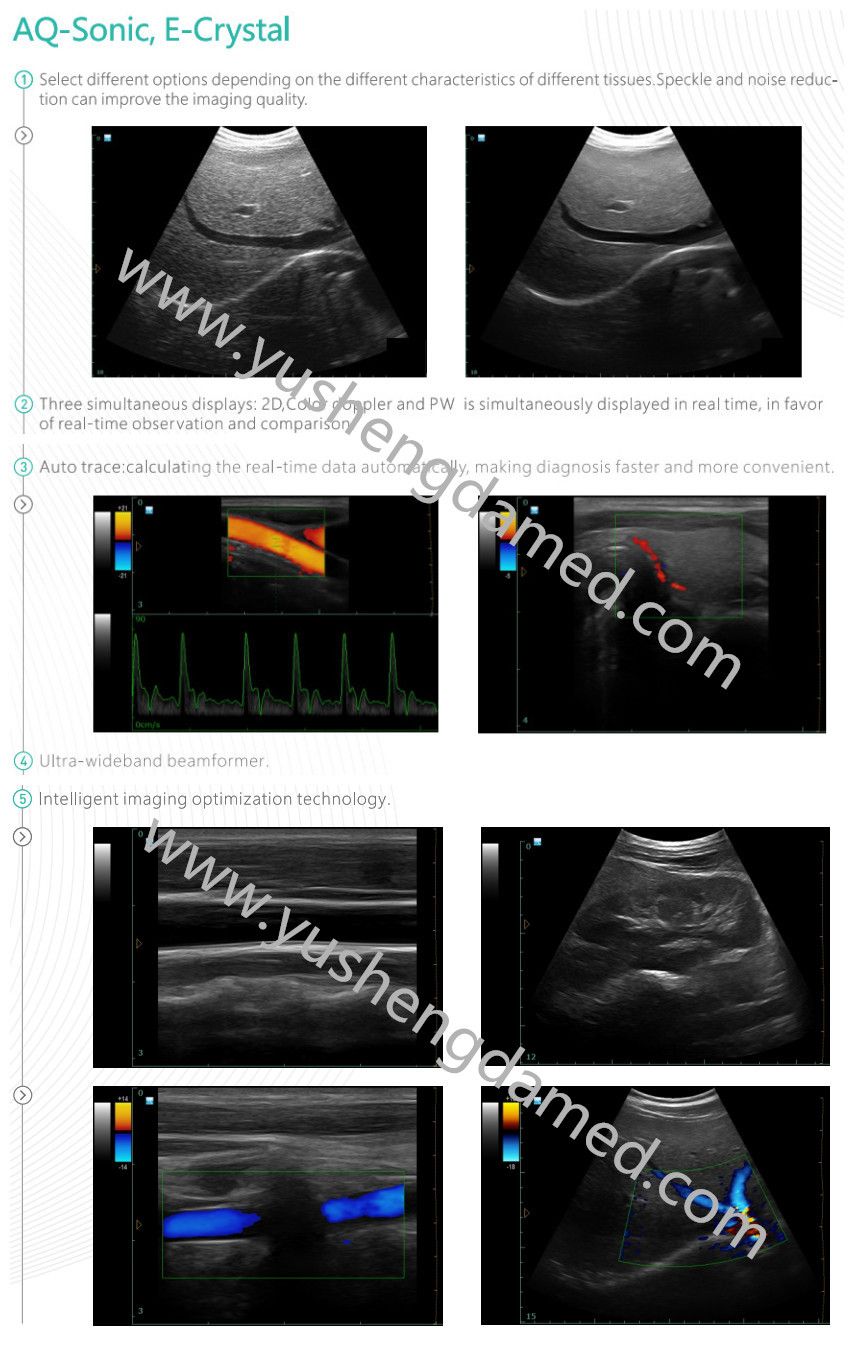

-AQ sonic:Reduce random noise
- E Crystal:Adaptive speckle suppression improves contrast resolution
- Multi-frequency probes for LD imaging modes
- Ultra-wideband beamformer
- intelligent imaging optimization technology
- Near and far Gain adjustment.
- With dual and duplex imaging.
- Three simultaneous display:2D, Color doppler and PW is simultaneously display in real time, in favor of real-time observation and comparison

User Interface:

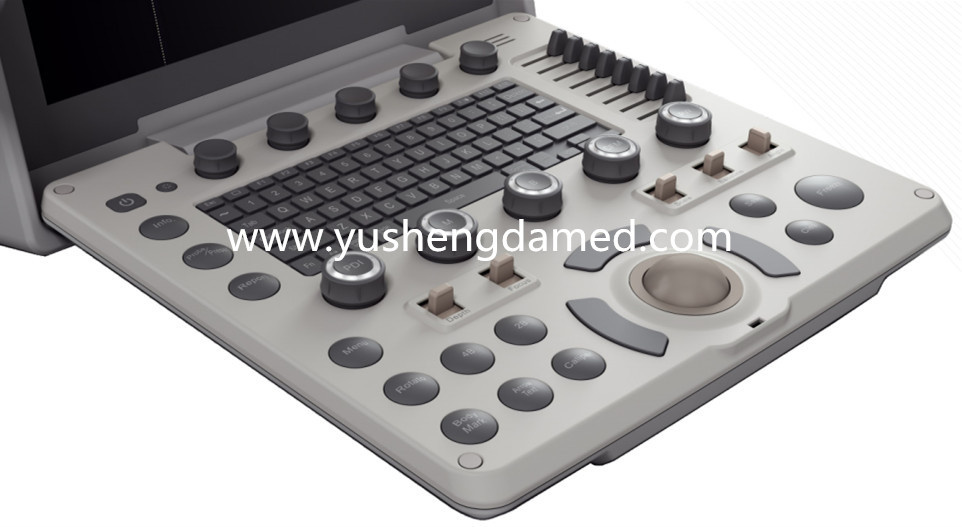

- Alphanumeric QWERTY keyboard with Backlight
- 8 Segment TGC
- Focus: 4-point adjustment
- Automatic gain control
-With Doppler angle and angle correction.

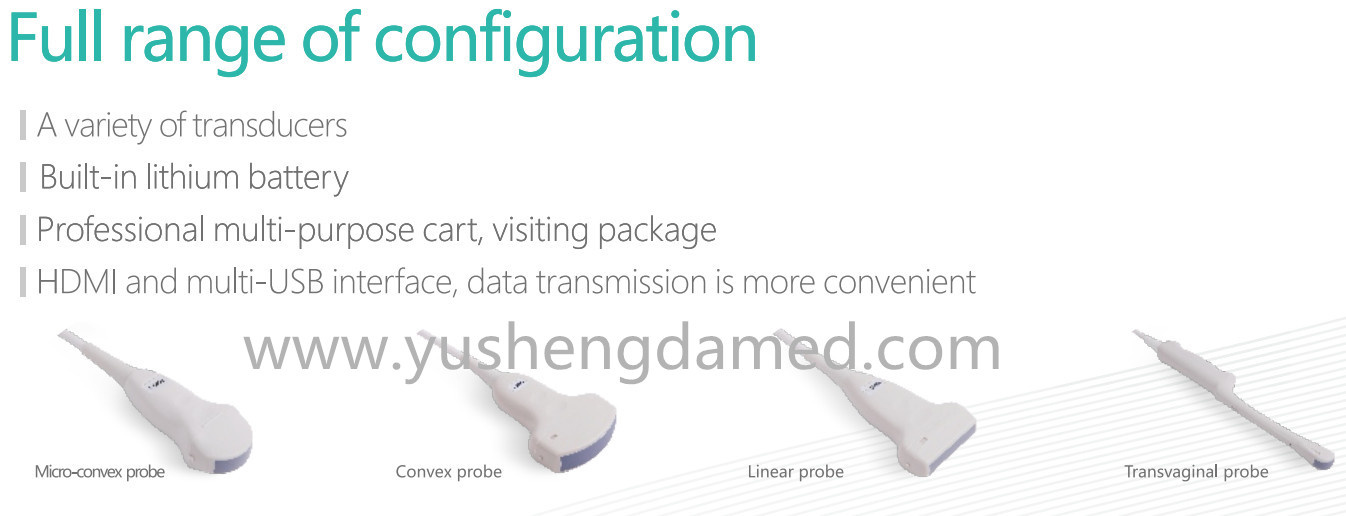

Optional probe:
CR60 Convex probe                              R= 60mm 2-5 MHz
L40 Linear probe                                   L= 40mm 5-10 MHz
L25 Linear probe                                   L= 25mm 5-12 MHz
MCR20 Micro-Convex probe               R= 20mm 2-4 MHz
MCR11 Micro-Convex probe               R= 11mm 5-8 MHz
MCVR Transvaginal probe                   R= 10mm 5-8 MHz

Intelligent Workflow/Storage/Review:
- Image archive on hard disk and USB mobile storage medium, temporary saving in cine memory(with 128GB SSD)
- 2USB ports
-Single-frame image formats: BMP
- Multi-frame images formats: AVI
- Cine memory capacity
B mode: 1024frames
M mode: 12.4 s
-Frame rate: not less than 50fps
-Display depth: minimum 30cm
-Ligh-Resolution 10L4 L*768
-Grayscale levels: 256
-Body markers: more than 100
Dynamic range, selectable up to approximately 165dB.

 Standard Configuration:
- 12.1-inch LED monitor
- Two transducer connector
- Control Panel
- 2 USB
- HDMI
- LAN
- Handle
- Indicators: Power/Battery/Standby

Application:
- OB/GYN reporting.
- Small part analysis
- Cardiac analysis with intima medial thickness measurement
- Velocity Colour to detect colour flow with PW Abdominal, Obstetrical, Gynecological, Cardiac, Small parts, Urological, Vascular, Orthopedics, MSK

Options
- Sony UP-897MD Printer
- One more Battery
- printer paper
- Trolley
