Multifunction High Efficiency Fruit and Vegetable Vacuum Packing Machine
| Price: |
US $ 80000-90000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Quick Details| Model | MR8-200ZK |
| Function | Pouch filling/ sealing machine
Spout pouch packaging machine |
| Pouch type | Four(Three)-side sealed pouch,Stand-up(Doy pack) pouch,Spout pouch etc. |
| Pouch Size | W: 100-210mm L: 120-300mm |
| Filling Volume | 20-1000g (depending on type of products) |
| Capacity | 10-40 bags/min |
| Package Error | ≤±1 |
| Dimension | 2600×1900×1700(L*W*H) |
| Weight | 3000KG |
| Compress air condition | ≥0.6m³/min supply by user |
Features and Characteristics| - The machine can pack different products which need vacuum packing |
| - Automatic rotary vacuum packaging consists of filling system and vacuum system. The former is intermittent, the latter incessant |
| - Quick change-over, the height of automatic bag feeding device can be adjusted automatically |
| - Comply with the sanitation requirements of food processing machines. Materials contact parts adopt 304 stainless steels, or other materials complying with food hygiene requirements to ensure foof hygiene and saferty. |
| - The machine is easy is easy to wash down |
| - The machine adopts premade pouches with a complete pattern, a high-quality sealing, resulting in improved product quality and grades |
| - Easy to operate. The machine adopts PLC and POD (touch screen)electrical control system, with a friendly man-machine interface. No sealing will happen if no filling occurs, causing bags not filled to be recycled, thus no bag wasted. |
| - Sealing temperature detection, Alarm system will be started, if heating pipe is damaged |
Standard Equipment Part| 1. Date printer |
| 2. PLC control system |
| 3. Pouch opening devices |
| 4. Vibrating device |
| 5. Cylinder |
| 6. Magnetic valve |
| 7. Temperature controller |
| 8. Vacuum pump |
| 9. Frequency convertor |
| 10. output system |
| 11. Vacuum chambers |
Application| puffed food, candy, biscuit, peanut, cookies, pistachio, crystal candy, brown sugar, daily commodities, cooked food. pickles |
Optional Configuration| material weighing & filling machines, platform, check weigher, material elevator, finished product conveyor, metal detector |

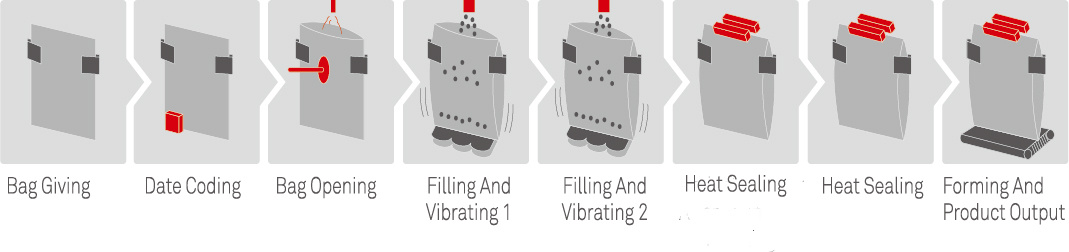

Work Process

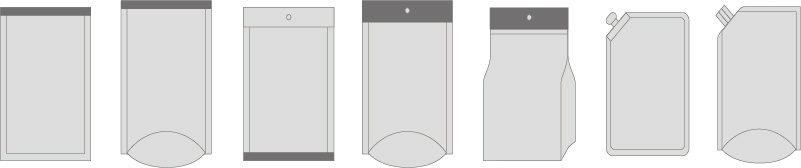

Pouch Type
| Prod Model: |
MR8-200ZK |
| Pouch Type: |
Stand-up Pouches, Zipper Bags,Paper Bag, etc |
| Bags Size: |
W: 100-200mm L: 120-300mm |
| Filling Volume: |
20-1000g |
| Capacity: |
10-40bags/Min |
| Dimension: |
2600*1900*1700mm(L*W*H) |
| Weight: |
3000kg |
| Automatic Grade: |
Automatic |
| Application: |
Dairy Products |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Composite Materials |
| Packaging Type: |
Pouch |
