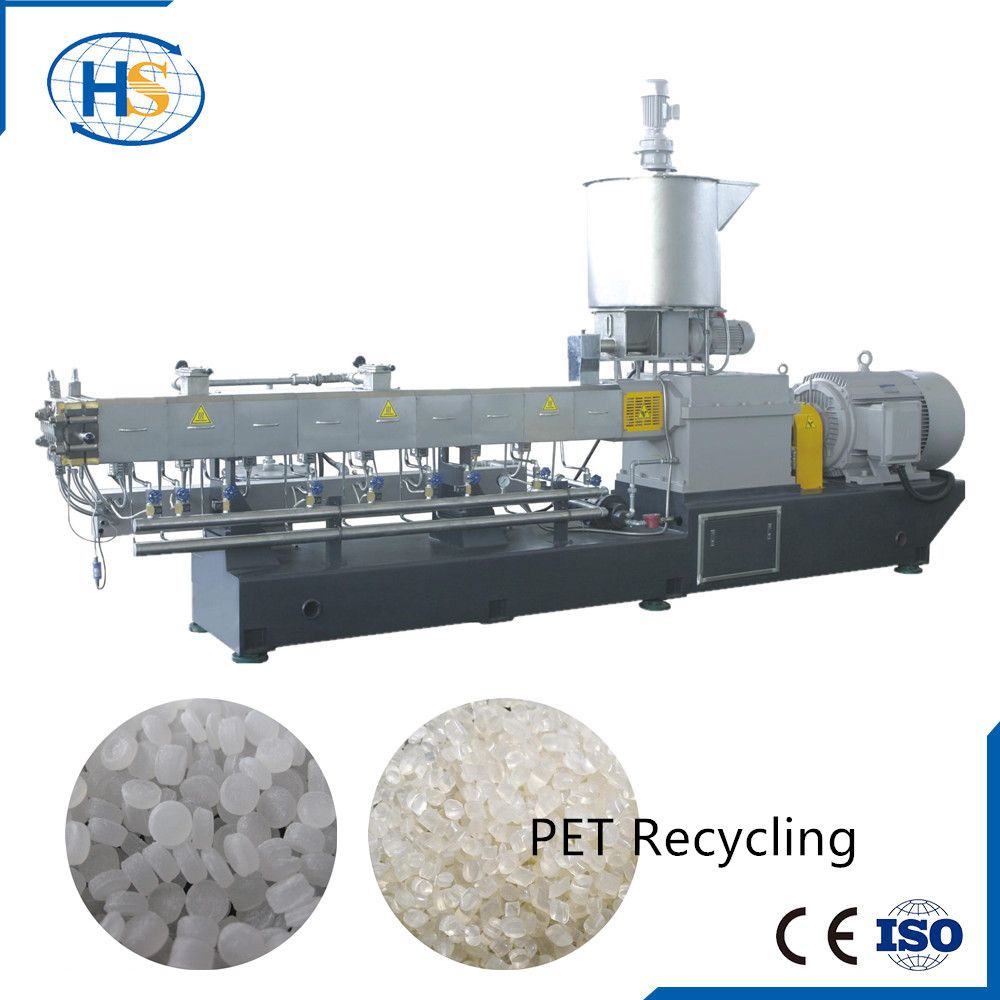

Nanjing Haisi Large Output Twin/Double Screw Extruder Manufacturer
| Price: |
US $ 19999-99999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
Functions:Plastics filling and modification, general and fibre color masterbatch, blending modification (rubber and plastic blending, plastic alloy), functional masterbatch, glass fibre or carbon fibre reinforcement, various cable material, reactive extrusion, handling after venting and dewatering, special material, powder coating 1,Mixing nature-changing: PE, PP, PS+SBS; PP+NBR; PA+EPDM;EVA+Sillicon rubber, etc.PE, PA, PC, CPE+ABS(Alloy); ABS+TPU; PBT+PET; PP+PE,etc.2,Filling nature-changing: PE, PP, EVA, etc.+Calcium Carbonate, talcum powder, titanic powder; ABS, PC, PS, etc.+aluminum hudroxide, magnesium hydroxide, antimony oxide.3,Functional machine pellets: PP, PA, PS etc.+ starch :de-composing machine pellets;PE+fog-preventing dipper, stabilizer: dual-prevention machine pellets;PE, EVA, ABS etc. +carbon black: black machine pellets.4,Colored machine pellets: PE, PP, ABS, AS, PA, EVA, PET +pigment and auxiliary.5,Intensified glass fibres and carbon fibres: PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc.+long fires, carbon fibres, crystals and so on etc. Characteristics: 1, Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .2, Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing, air-cooling hot-cut pelletizing, water-ring pelletizing, under water pelletizing, etc.3, Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.4, Barrels are made of high quality nitrided steel , corrosion proof and antifriction.5, Vacuum system fulfills devolatilization to ensure the quality of polymer processing. Gearbox: ( different types for your choice)
Haisi supplies different models of twin screw extruders, as below:Machine range:| Model | Diameter
(mm) | L/D | Screw rotating speed (r/min) | Main motor power (kw) | Screw torque (N.m) | Torque level(T/N³) | Output (kg/h) |
| TSE-30B | 30 | 32-48 | 600 | 11 | 85 | 4.7 | 5-40 |
| TSE-40B | 41 | 32-52 | 600 | 30 | 225 | 5.5 | 90-150 |
| TSE-52B | 51.5 | 32-64 | 600 | 55 | 405 | 5.1 | 270-450 |
| TSE-65B | 62.4 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 600 | 110 | 620 | 4.4 | 330-550 |
| 500 | 110 | 1005 | 4.6 | 330-550 |
| TSE-75B | 71 | 32-64 | 600 | 132 | 990 | 4.6 | 396-660 |
| 600 | 160 | 990 | 4.6 | 450-750 |
| TSE-75D | 71 | 32-64 | 600 | 250 | 900 | 4.2 | 500-1000 |
| TSE-95B | 93 | 32-64 | 600 | 315 | 2365 | 5 | 945-1575 |
Exhibition
Since Haisi machines have been exported to UK, Germany, Canada, Indonesia, Mexico, Middle-east, Southeast Asia, etc, 20 more countries, surely you will also get right solution , good machines and excellent services here. FAQWhat about comments from present customers?
What can we bring you?1.High-quality equipment and highly competitive market prices can bring you more profits.2. More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency for you.3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
| Prod Model: |
tse series |
| Model: |
Tse-135A |
| Motor Power: |
750kw |
| Diammter: |
133mm |
| L/D: |
32-64 |
| Screw Speed: |
500r/Min |
| Capacity: |
1500-2250kg/H |
| Color: |
Any Color as Required |
| Certification: |
Ce ISO9001 TUV SGS |
| Warranty: |
1 Year |
| Product Type: |
Granulating Extruder |
| Feeding Mode: |
Multiple Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Twin-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Exhaust |
| Computerized: |
Non-Computerized |
| Plastic Processed: |
PE PP PC EVA ABS as PA |
| Automation: |
Semi Automatic |
| Type: |
Plastic Extruder |
Introduction and history:
Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.
Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.
Business scope and achievements:
All kinds of plastic extruder.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Prospects:
Surely you will also get professional machines and characteristic services here. Let's create more together!
Characteristics of our machine:
Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.

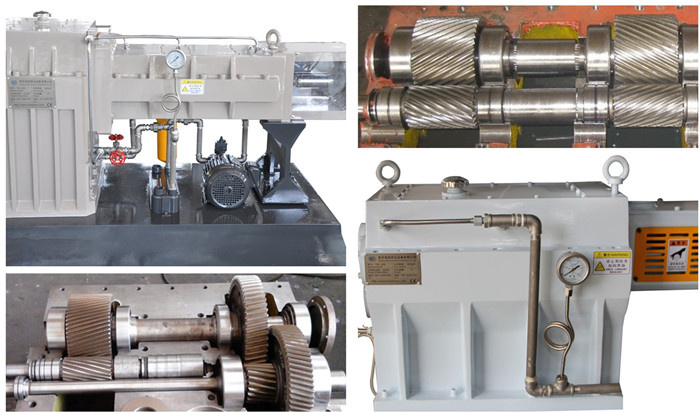

New-style gear transmission system:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.
The computer designs to potimize gear parameters and strenghthen safe overmeasure.
The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and spraying lubriation integrate smoothly.
