Product Specifications
| Prod Model: |
HST PC solid sheet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Raw Material: |
100% Virgin Bayer Makrolon PC/Sabic Lexan |
| Polycarbonate Thickness: |
1mm-50mm |
| Polycarbonate Length: |
5800mm/6000mm/11800mm/12000mm |
| Polycarbonate Width: |
1220/1560/1820/2100mm |
| Polycarbonate Color: |
Opal Clear Light Green ,Lake Blue Brown |
| Polycarbonate Protection: |
The Board Coated with High-Density Ultraviolet ABS |
| Product Packing: |
Both of The Two Sides Are Covered with PE Films. |
| Polycarbonate Light Transmittance: |
88% |
| Polycarbonate Impact Resistance: |
10mm Twin-Wall Panel Can Stand 200j Impact Energy |
| Polycarbonate Service Temperature: |
-40 C-120 C |
| Material: |
PC |
| Color: |
Color: Blue .Green .Opal .Red. White. Clear |
Product Description

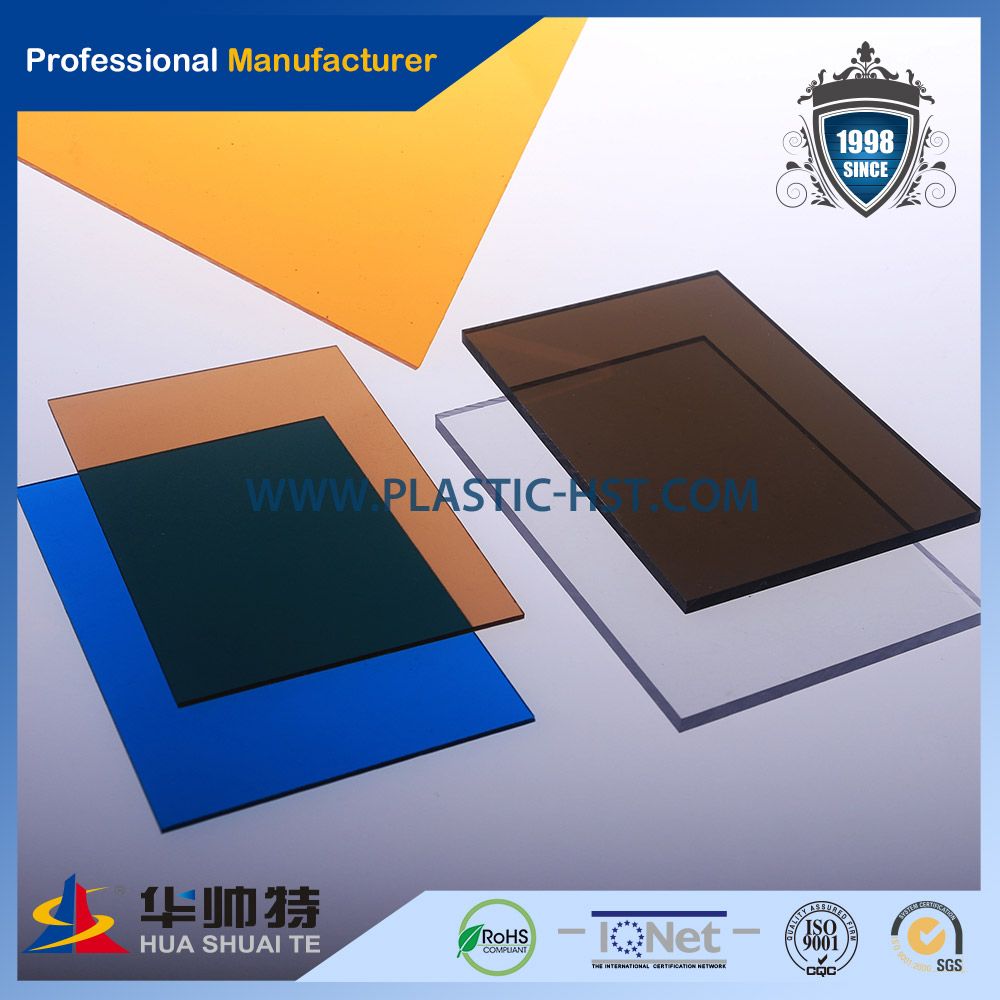

Name: New Arrival Printed Decorative Polycarbonate Solid Sheet
Product List
| Item | Width*Length(mm) | Thickness(mm) | Weight(kg/m² ) | Min Curving Radius(mm) | Light Transmission(%) | Effect of Soundproof(dB) |
| Polycarbonate twin wall hollow sheet | 2100*6000/customized | 4 | 1 | 700 | 82 | 14 |
| 6 | 1.3 | 1050 | 81 | 17 |
| 8 | 1.5 | 1400 | 79 | 18 |
| 10 | 1.7 | 1750 | 76 | 19 |
| 12 | 2 | 2100 | 72 | 20 |
| Polycarbonate triple wall hollow sheet |
2100*6000/customized | 8 | 1.6 | 1400 | 74 | 18 |
| 10 | 1.8 | 1750 | 73 | 19 |
| 12 | 2.1 | 2100 | 72 | 19.5 |
| 14 | 2.4 | 2450 | 70 | 20 |
| 16 | 2.7 | 2800 | 69 | 21 |
| Polycarbonate four wall hollow sheet |
2100*6000/customized | 8 | 1.8 | 1400 | 72 | 18 |
| 10 | 2.1 | 1750 | 71 | 19 |
| 12 | 2.3 | 2100 | 70 | 20 |
| 14 | 2.5 | 2450 | 69 | 21 |
| 16 | 2.8 | 2800 | 68 | 21 |
| 18 | 3.1 | 3150 | 66 | 22 |
| Polycarbonate five wall hollow sheet | 2100*6000/customized | 12 | 2.4 | 2300 | 69 | 20 |
| 14 | 2.6 | 2600 | 68 | 21 |
| 16 | 2.9 | 2950 | 66 | 22 |
| 18 | 3.1 | 3350 | 63 | 23 |
| 20 | 3.3 | 3950 | 61 | 24 |
| Polycarbonate honeycomb sheet |
2100*6000/customized | 6 | 1.9 | 1500 |
|
|
| 8 | 2.0 | 2000 | 62 |
|
| 10 | 2.1 | 2500 | 60 |
|
| 12 | 2.3 | 3000 | 58 |
|
| 14 | 2.5 | 3500 |
|
|
2.Polycarbonate roofing Sheet Products features:
1> Light Transmission: The Light transmission reaches 12%-82% depending upon Color and thickness.
2> Thermal Insulation: Proprietary Hollow from contributes to reduce the energy consumption and therefore energy costs.
3> Fire Retardancy: According to GB8624-1997 the fire retardant classification of UV Zhennai is B1.
4> Impact resistance: Its outstanding toughness offers greater protection against breakage during transportation, installation and usage. The impact strength is 10-27 times as much as Plexiglass.
5> UV-Protection: The product surface contains 50 mirco UV prevention co-extrusion layer with good outdoor weather resistance, Keeping Excellent optical Properties and Mechanicial properties after long-term use.
6> Soundproof: Hollow Structural sheet has signficant advantage to the sound insulation.
7> Weather ability: It has good weather ability, can maintain excellent properties in a wide temperature range from -40 degree to 120 degree
8> Easy Installation: Easy installation can be cold bent.
Applications
1.Decoration in landscape gardening and rec-rational places, Singular
decoration, corridors and pavilions in leisure places.
2. Interior and exterior decorations of commercial building, curtain walls of
modern building.
3. Transportation airline, containers, front wind shields of motorcycles, airplanes, trains, liners, vehicles,
motors boats, submarines and police glass shields.
4. Telephone both, advertising boards, light boxes and exhibition.
5. Instruments and meters, and military industry.
6. High class indoor decoration, such as walls, windows roofs and screens.
7. Sound-insulation walls in expressways and urban overhead highways.
8. Agricultural greenhouses and raising sheds.
9. Lighting of factory buildings, warehouse and markets.
About Us:
Core competitiveness:
1.German Bayer raw materials
2.Bring in co-extrusion equipment and production technology from Italy
3.Ten years guarantee
4.15 years manufacturer for polycarbonate sheet
5.Agreed on quality insurance with PICC on the basis of 10 million RMB
6.Certification: IOS9001:2008, SGS ...
7.UV coated
Advantages:
1. Specialize in manufacturing PC sheets for over 10 years
2. 6 Imported Advanced Production Lines
3. Bayer/SABIC virgin material
4. 14, 000 tons annual output
5. Verified by ISO9001: 2008
6. Competitive price and good quality
7. OEM acceptable
8. UV Protection
Our Services:
1. Reply your inquiry in 8 working hours.
2. Offer you introduction and professional advice.
3. Supply free samples to you for developing your market
4. Customized desigh is available, OEM is welcomed.
5. Special discoun
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
