New Condition Automatic Robot Pallet Wrapping Machine/Self-Propelled Wrapping Machine
| Price: |
US $ 5555/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
XT4510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Automatic Wrapping Machine |
| Driven Type: |
Electric |
| Application: |
Dairy Products |
| Automatic Grade: |
Automatic |
| Packaging Type: |
Film |
Product Description

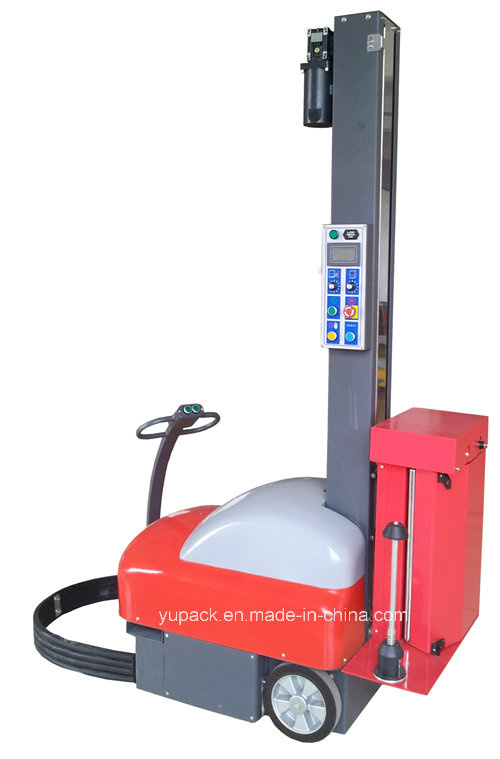

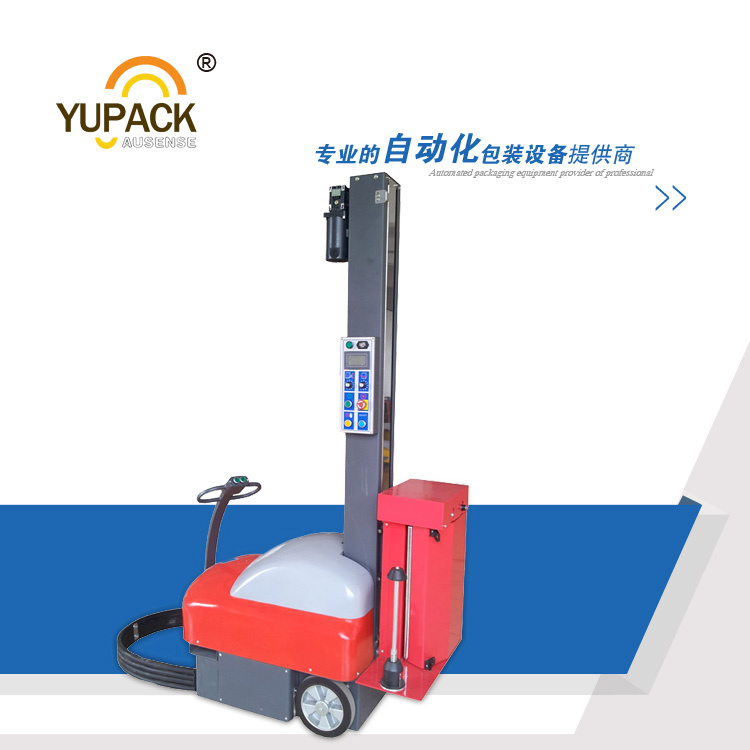

YUPACK Automatic robot pallet wrapping machine
Description Automatic robot pallet wrapping machine/self-propelled wrapping machine is a self propelled battery powered robotic mobile pallet wrapper driven by twin 24V electric motors.Capable of wrapping loads of any weight and area up to 2350mm in height. It can be used in warehouses with restricted space where a conventional turntable pallet wrapper permanently sited would command too much floor space. When not required it can simply be movement out of the area and the floor space used for another purpose. Because of its compact dimensions the Robotic requires a much smaller working area than most robots. An 100% power pre-stretch system is fitted as standard ogether with variable speed control for reel carrier rise and fall. PLC unit controls top/bottom and intermediate wraps with 6 pre-programmable settings.
Product Specification
| Model | XT-4510 |
| Min.pallet size | 600*600mm |
| Max.packing height | 2100mm(2500mm can be customized) |
| Film reel inner diameter | 75mm |
| Film reel diameter | 250mm |
| Power of up-down motor | 0.18kw |
| Rotary speed | 1-16 ring/min |
| Pre-stretch rate | 350% |
| Charge power supply | 220v/50HZ 1Phase,110v/60HZ |
| Machine weight | 325kg |
Product Features 1. Not limited by product size
2. Move conveniently
3. One person can assemble the machine
4. A variety of packaging methods can be chosen
5. Use battery as power. Self winding machine power is powerful and the noise is small.
6. Packaging automatically, save space. It move at any time, which not only saves the workshop and warehouse space, but also to facilitate the transport to the scene immediately began to work.
7. Special fast up-down film structure, high efficiency.

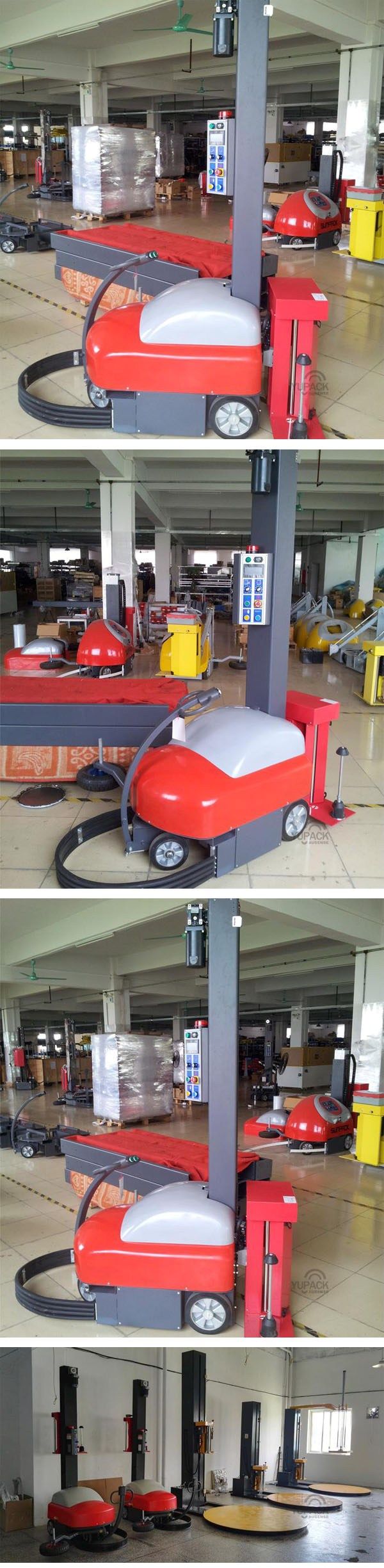

8. Using programmable control system. The parameters can be automatically adjusted on the control panel, control panel using liquid crystal display, simple operation.Warehouse:
About us Qingdao Ausense Packaging Equipment Co., Ltd is focus on Auto-packing equipment design,commissioning and sales.it was founden in 2001 year.Early is given priority to with agents abroad automatic identification equipment.Since 2005, with the domestic famous enterprises packaging equipment, focused on the development of domestic automatic packaging market.Ausense as a professional manufacturer of automatic packaging machine,Qingdao Ausnse has accumulated rich experience in the course of research and practice,and committed to offer high quality automatic equipment for manufacturing industry. Ausense owns independent research and development team of product in the technological filed.there are a number of researchs who had obtained the middle title or senior title,they are developing new products and follow advanced international level continuously.
Qingdao Ausense was founded in 2001, specializing in automated packaging equipment planning Road after the production line, R & D and manufacturing. After years of practice, now Ausense has automatic box, packing, sealing, shrink, vacuum, strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipment. Companies rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.
Ausense Company flagship brand "YUPACK", the company has a vacuum machine, Binder and a number of Chinese patents. All products have passed the European CE certification; Manufacturing plants involved in the Chinese machinery industry standard "mechanical Binder, " "sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.
2016, Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry as multi-industry transformation from 3.0 to 4.0 upgrade services.
