| Price: | US $ 1000-3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | MO009 |
|---|---|
| Field: | Water Treatment |
| Warranty: | 12 Months |
| Material: | Stainless Steel |
| Certificate: | Ce RoHS |
| Operation: | Automatic |
| Use: | Ozone Destructor |

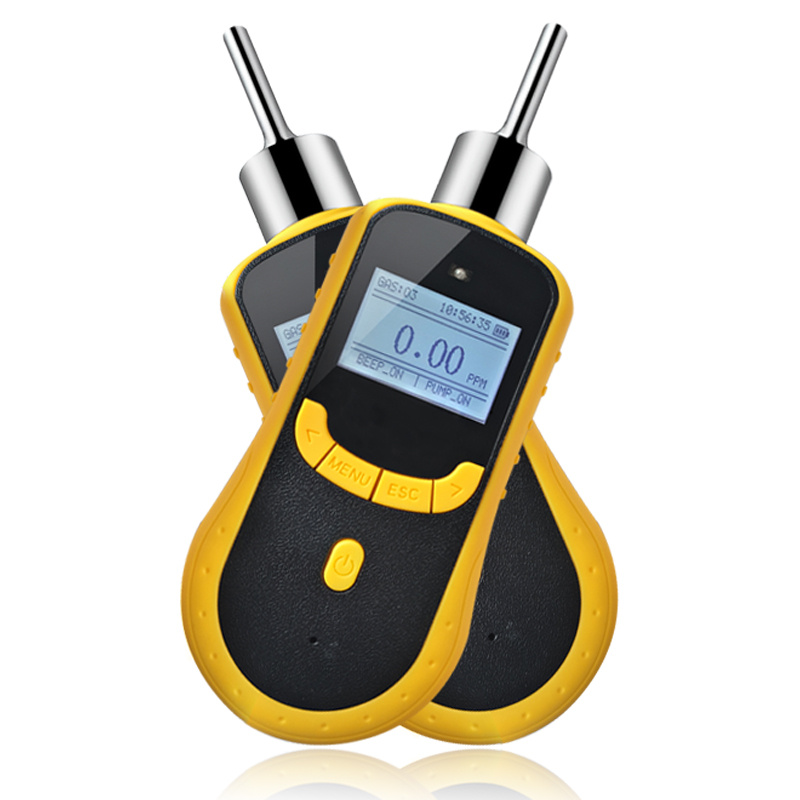

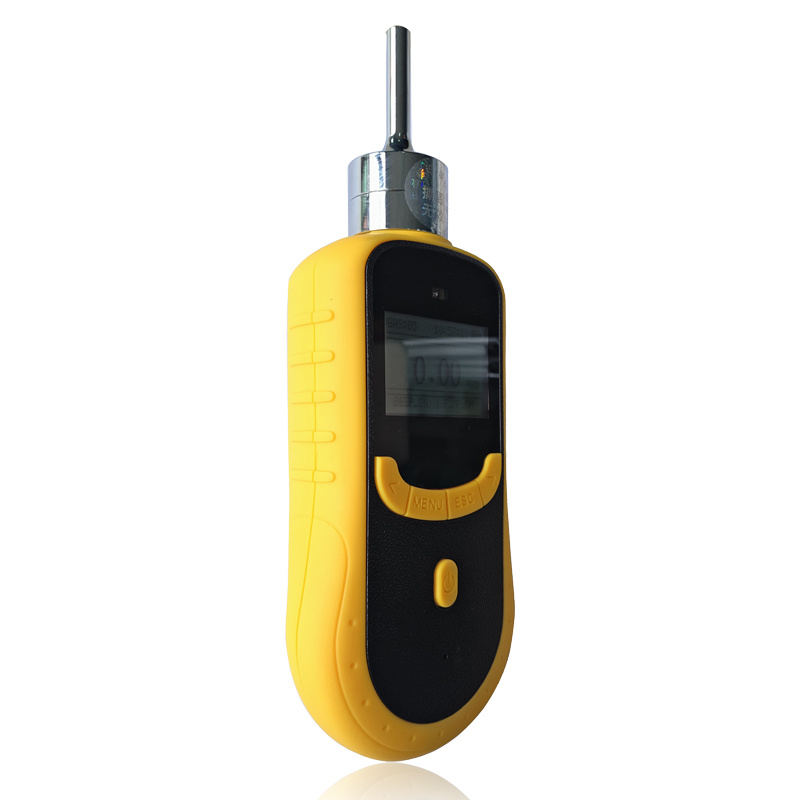

Ozone monitor O3 gas leakage detector
Descriptions:
A built-in mini portable precision sampling pump gas detector; optional instrument data storage can store up to hundreds of thousands of sets of data, USB data interface can be connected to the computer, download and print data; gas concentration values are available PPM, mg / switching units and other various concentrations m3 representation; dot matrix liquid crystal display technology support graphic description; the English interface can be switched.
Feature:
Using imported high-precision sensor
USB interface to high-speed data transmission, can download and print data (optional)
Data storage capabilities, can save one hundred thousand sets of data, storage intervals adjustable (optional)
Dot matrix liquid crystal display technology, you can display the kind of gas, the gas unit, gas concentration, measured maximum value (optional), local time, ambient temperature (optional)
Support Chinese and English operation interface, easy to switch
Gas concentration unit PPM, mg / m3 can quickly switch the display
Built-in micro pump, pump suction size ten stalls adjustable
Explosion-proof certification, explosion-proof grade: ExiaIICT4
Functions:
Monitoring the environment or confined space gas concentrations and alarm
With self-check function, zero calibration function, so that gas monitoring is more accurate, more reliable
A key to restore the factory settings function, can be removed from misuse problems
With temperature and pressure compensation, it can be the perfect realization of compensation under various temperature and pressure environment of the gas concentration
Two sound and light alarm, alarm point can set your own
High-capacity lithium polymer rechargeable battery
Pump suction sampling mode, the pump suction resizable
The shell is made of high-strength special plastic, non-slip, waterproof, dustproof, explosion-proof

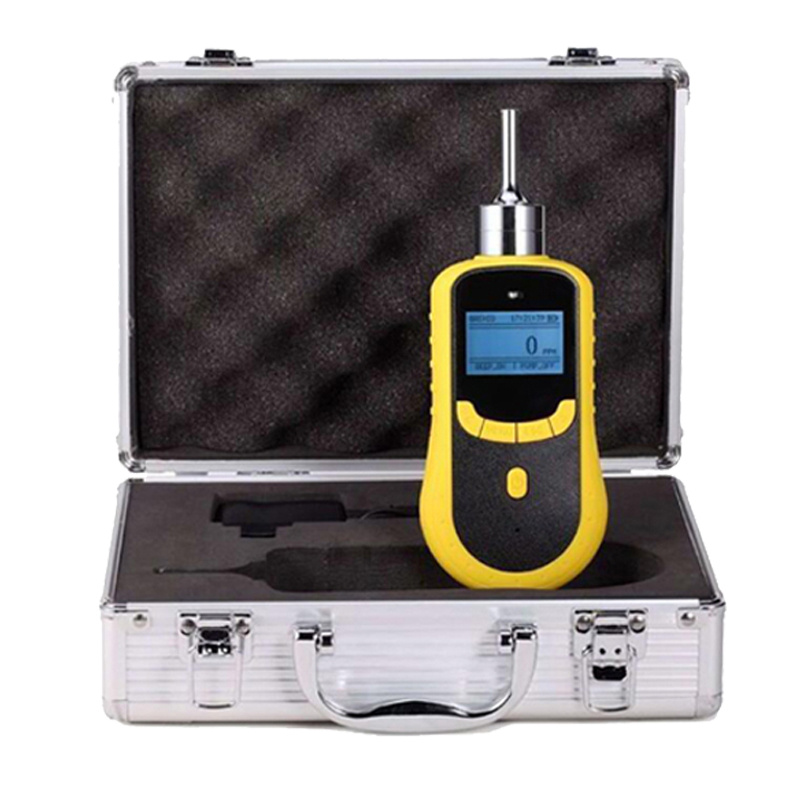

Exquisite high-end aluminum suitcase
Specifications:
| Gas Detected | O3 | ||
| Detection principle | Electrochemical theory | ||
| Sampling Method | Pump-priming, flow rates up to 1L / min, pump suction size ten stalls adjustable | ||
| Measure Range | 0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm(Measure range, are not listed range can be customized) | ||
| Resolution | 0.001ppm,0.01ppm,0.1ppm,1ppm(Associated with the selected range) | ||
| Precision | ≤± 2% F.S. | ||
| Data store | Can save one hundred thousand sets of data, USB interface, high speed data transmission, can download and print the data (optional) | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(F.S/year) | Display | Dot matrix liquid crystal display technology |
| Operating language | English, Chinese | Gas unit | Support for multiple gas unit switching display |
| Temperature | -40ºC~70ºC | Humidity | 0-95%RH |
| Explosion-Proof | ExiaIICT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time | 100 hours (off pump) |
| Dimensions | 205*75*32mm | Weight | 300g |
Features:
1. Technology corona discharge high-quality quartz ozone cell
2. Adjustable ozone output 0-100%
3. Inner temperature controller to prevent heat generating
4. Ozone generated tube cooling way: water-cooling system
5. Special design to avoid water return
6. 120mins timer controller or continuous running
7. External / Inner air compressor
8. Inner refrigerant dryer
9. Stainless steel 304 case
10. Inner PSA oxygen generator unit
11. CE approved
12. Lifespan>= 20, 000 hour
Application:
1. Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment,aseptic room, etc.
2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate,small water treatment
3. Beverage industry: disinfect production water supply for Bottle water -pure water,
mineral water and any kinds of beverage, etc.
4. Fruits and vegetables processing industry: keep fruits and vegetables fresh and Cold storage;
disinfect production water supply for fruits and vegetables processing.
5. Sea food factory : Remove smell of sea food factory and kill bacteria ,disinfect production water supply.
6. Slaughtering : Remove smell of slaughtering and kill bacteria, disinfect production water supply.
7. Poultry factory : Remove smell of poultry factory and kill bacteria ,disinfect water for poultry feeding.
8. Ozone use for surface sanitation
9. Swimming pool and SPA water sterilization and disinfection
10. Ozone laundry system for Washing machine
11.Aquaculture and aquarium water sterilization
12.Waste/sewerage water treatment (Agriculture wastewater treatment)
13.Decolor for textile,Jeans bleaching

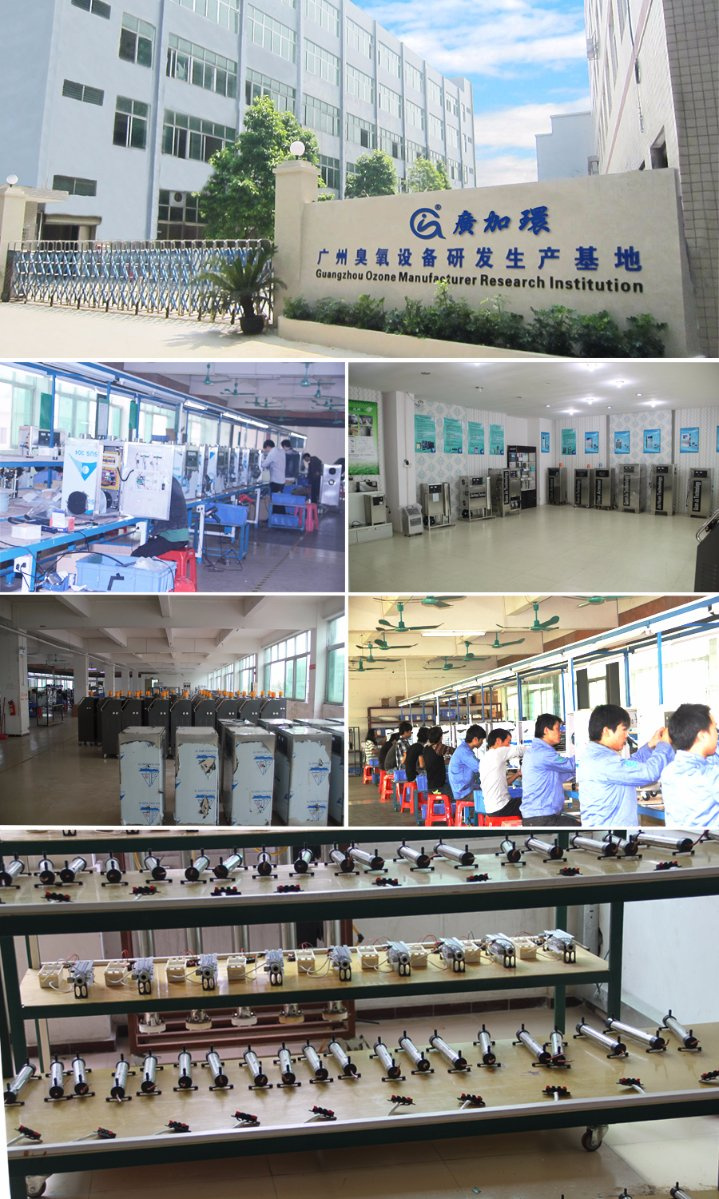

Guangzhoujiahuan appliance technology co.,ltd specializes in manufacturing of ozone generator, PSA oxygen generator,car air purifier from 2003,with over 10 years hard working,we have grown into the largest ozone generator manufacturer in Guangzhou, Covering an area over 5,000 Sqm, with 90 workers. We can supply all kind of ozone generators from 5g/h-10kg/h.
Welcome your inquiry!
