Product Specifications
Prod Model: |
SUN-808F |
Battery: |
Continuesly Work More Than 3 Hours |
USB Ports: |
2 USB Ports |
Specialty: |
General, Ob/Gyn, Vascular, Cardiology, Urinary, Sm |
Imaging Mode: |
B, B/B, B/M, M, 4b |
Permanent Storage: |
1024 |
Cine Loop: |
192, Manual and Automatic |
Body Mark: |
35 Kinds |
Puncture: |
Puncture Guide Line |
Image Store Format: |
BMP, Dicom |
Classification: |
Imaging Diagnostic Equipment |
Type: |
Ultrasound Scanner |
Certification: |
ISO13485 |
Group: |
Different Animals |
Product Description

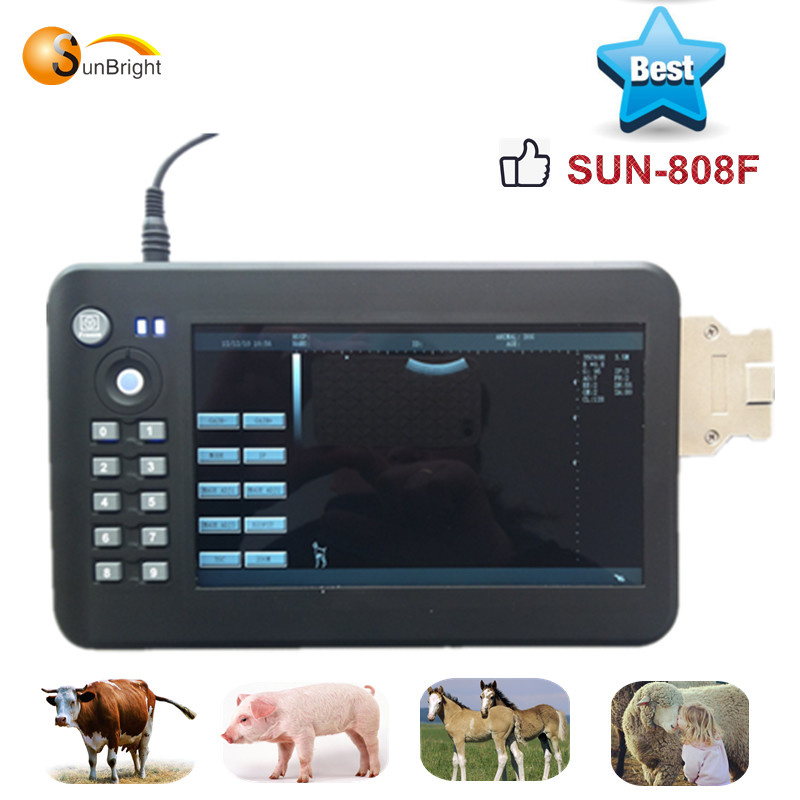

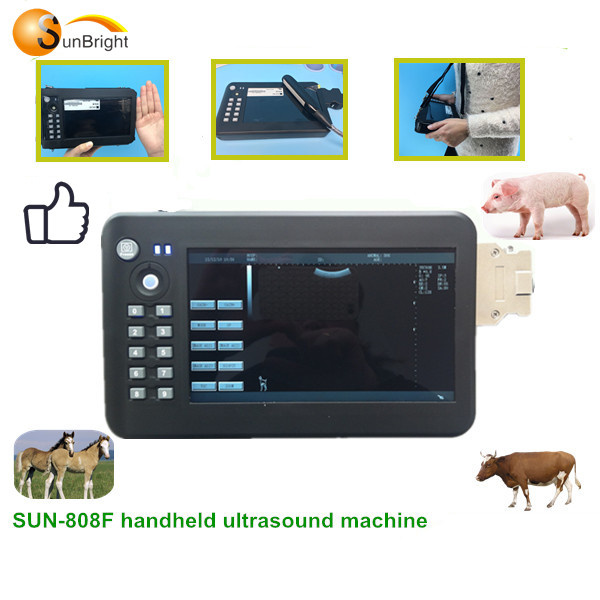

Palm size /handheld veterinary ultrasound machine with rectal probe
Sunbright is proud to announce its newly released handheld ultrasound systems SUN-808F, The series B ultrasound diagnostic system SUN-808F adopts a truly original approach. The images displayed by the system are crystal clear, stable and with high resolution due to adopting the latest techniques, such as continuous dynamic variable aperture, automatic multi-stage focusing, TGC, dynamic filtering, image edge enhancement, frame correlation, 256 gray scales image display, wide dynamic range and dynamic broadband with low noise preamplifiers, logarithmic compression etc.
The system SUN-808F has multi-probe connector, which can use convex, linear, micro-convex probe etc.
This is versatile ultrasound diagnostic system with excellent performance and compact structure. Even with strong functions, it has user-friendly interface and is easy to operate.
Scanning mode | electronic linear array, electronic convex array |
Imaging model | B, B/B, B/M, M, 4B |
Gray scale | 256 levels, four selectable gamma curve |
Magnification | ×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5 |
Permanent storage | 1024 |
Cine loop | 192, manual and automatic |
Sound Power | 8 grades from 0-7 |
Dynamic Range | Adjustable from 30-75 |
USB Ports | 2 |
IP set | 8 |
Body Mark | 35 kinds |
Pseudo color | 5 kinds |
Image Processing | Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
Measurement: | Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
Focus | Number and location of the focus can be adjusted |
Puncture | Puncture guide line |
TGC | Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
IP set | Hospital's name, Date, Time, Formula of Fetus' weight and Pseudo color |
Image store format | BMP, DICOM |
Formula of Fetus' weight | OSAKA, TOKYO1, TOKYO2, MERZ |
Image | Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
Voltage | AC85V-265V | | |
Software:
General measurement: distance, circumference, volume, angle, heart rate and etc.
Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus' weight, pregnancy week, fetal physiological rating according to the previous measurements.
Cardiac measurement software. The measurement result could be shown automatically.
Profiles:
Certificate:
visiting warehouse
Delivery
Established in 1998, with more than 200 employees, core enterprise of Sunbright Group, Shanghai Sunbright Industrial Co., Ltd. is "National High-tech Enterprise", specialized in the research, production and marketing of Gynecology, Obstetrics and other medical fields. With series of internationally advanced automatic lines in complete sets for testing, production and debugging of medical electronic products, Shanghai Sunbright has an annual output of 20000 sets, and is a leader in passing ISO9001 and CE certificate in the same line.
Shanghai Sunbright is located in Haiwan town, Fengxian District in Shanghai City, which is important area in Spark Development Zone. With beautiful scenery, spacious venue, advanced technology, sophisticated equipment and high-quality personnel, Shanghai Sunbright is the leader to produce refined products in the same line.
Shanghai Sunbright has several dozes of series of products which combine optical, mechanical, electrical and computer technology, including color dopplers, B ultrasounds, multi-parameter monitors, colposcopes, electrocardiograms and so on. With high quality products and services, Shanghai Sunbright got high trusts from most of customers and the attentions and supports from leaders at all levels. Currently Sunbright has become the famous and leading brand in the line, has set up more than 50 branch offices and after service offices in more than 20 provinces, municipalities and autonomous region in China, exported products to more than 50 countries in Europe, Asia, Africa, South America and North America and become the unique platform of Sunbright for sale and service.
"Excellent quality, Excellent service" is always our company's quality policy. Sunbright will play our own technology advantages to provide most of the users with the best quality products, the most favorable prices, a perfect sales network and all kinds of after-sales service and try our best to do for Human Health!
Shanghai Sunbright, worthy of your trust forever!
