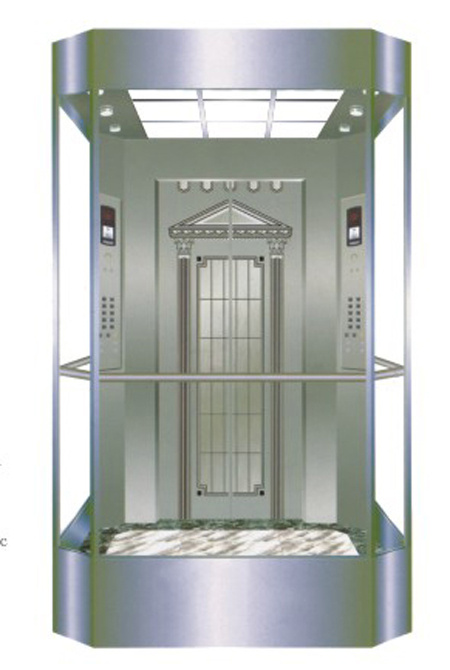

Panoramic Elevator with Gearless Lift Traction used Japan technology
Shandong Fujizy Elevator applies the humane design concept . It combines with psychological requirement of human aesthetics .The building is endowed with popular and magical chatacteristics. It is your first choice in large-size shopping center ,department store, exhibition hall ,hotel ,restaurant ect. It grants the people to fully appreciate beautiful urban scenes
Four Janpanese crafts restore the perfect travel experience.
1.Car operation panel design accords with the best ergonomics principle.
2.Super-thin calling box with fine and exquisite craft.
3.Soft and clear liquid crystal display screen.
4.Voice prompt with perfect acoustic quality.
Permanent magnet synchronous and gearless traction machine .
Shandong Fujizy Elevator applies the latest generation of permanent magnet synchronous and gearless traction machine .It fulfills energy-saving objectric since the of drive system. It can save about 35% of electric energy.
LED car lighting system
Car lighting shares about 40% in total electric amount of the elevator . LED lighting system used by the elevator only consumes half of electricity than of ordinary fluorescent lamp,1/8 than that of ordinary filament lamp. Furthermore ,LED lighting has the advantages such as quick start ,long life(about over 30,000hours)
Energy feedback system.
It converts potential energy in heavy-load down-montion or light-load up-motion of the elevator into highly pure electric energy. It supplies other power equipments .It sets down heavy brden of electric grid, keeps normal temperature of machine room ,prolongs the elevator life, reduces over 20% of energy consumption.
Automatic shut-off of car fan and lighting .
It automatically opens/shuts car fan and lighting when aomeone /nobidy travels the elevator .It saves the energy and power at any time.
Highly integrated intellectual control system.
32-digit doouble -CPU ,inter-monitor of master - save CPU effectively enhances the data processing speed .It fulfill powerful control to the elevator running process.
Effective vector frequency converter
Low frequency ,larger torque,handy and portable operation and maintenance ,optional elements with long life fulfill synchronous rotaing speed drive. It brings about the more smooth drive of traction sheave.
Long - distance monitor
It executes real-time monitor to the elevator running condition in long - distance monitor center through wireless communication module so that the passengers can safety enjoy the full journey.
Light curtain protection
It applies highly sensitive light curtain device in front of the elevator door .It friendly protects the paddengers' safe entry / through non-contactable induction.
Parameter and specification table:
Car cover: painted steel plate, decoration lamp
Observation wall : glue glass of safety slamp
Decoration roof: arched ceiling, LED lighting
Car wall : hairline stainless steel
Handrail: stainless steel tube
Floor : PVC
Small machine room panoramic elevator
For square panoramic elevator
| Parameter and Specification Table |
Rated Loading Capacity |
Rated Speed |
Cab Size
Width*Length
|
The width of opening door |
Hoistway
Size
(Width*Length) |
Machine Room Size |
The height of top |
The height of pit |
| kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
630 | 1.0 |
1400*1100 |
800*2100 |
2250*1600 |
2250*1600 | >=4500 | >=1800 |
| 1.5 | >=4600 | >=1800 |
| 1.75 | >=4800 | >=1800 |
800 | 1.0 |
1400*1350 |
800*2100 |
2250*1800 |
2250*1800 | >=4500 | >=1800 |
| 1.5 | >=4600 | >=1800 |
| 1.75 | >=4800 | >=1800 |
1000 | 1.0 |
1600*1400 |
900*2100 |
2450*1900 |
2450*1900 | >=4500 | >=1800 |
| 1.5 | >=4600 | >=1800 |
| 1.75 | >=4800 | >=1800 |
For round/circular panoramic elevator
Rated Loading Capacity |
Rated Speed |
Cab Size
Width*Length
|
The width of opening door |
Hoistway
Size
(Width*Length) |
Machine Room Size |
The height of top |
The height of pit |
| kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
800 | 1.0 |
1200*1750 |
800*2100 |
2200*2200 |
2200*2200 | >=4600 | >=1800 |
| 1.5 | >=4800 | >=2000 |
| 1.75 | >=5000 | >=2000 |
1000 | 1.0 |
1400*1900 |
900*2100 |
2550*2500 |
2550*2500 | >=4600 | >=1800 |
| 1.5 | >=4800 | >=2000 |
| 1.75 | >=5000 | >=2000 |
4.Machine Roomless Panoramic Elevator
For square panoramic elevator
Rated Loading Capacity |
Rated Speed |
Cab Size
Width*Length
|
The width of opening door |
Hoistway
Size
(Width*Length) |
The height of top |
The height of pit |
| kg | M/s | Mm | Mm | Mm | Mm | Mm |
630 | 1.0 |
1100*1400 |
800*2100 |
2000*1900 | >=4600 | >=1800 |
| 1.5 | >=4700 | >=1800 |
| 1.75 | >=4800 | >=1900 |
800 | 1.0 |
1350*1400 |
800*2100 |
2300*2050 | >=4600 | >=1800 |
| 1.5 | >=4700 | >=1800 |
| 1.75 | >=4800 | >=1900 |
1000 | 1.0 |
1400*1600 |
900*2100 |
2350*2100 | >=4600 | >=1800 |
| 1.5 | >=4700 | >=1800 |
| 1.75 | >=4800 | >=1900 |
For round panoramic elevator
Rated Loading Capacity |
Rated Speed |
Cab Size
Width*Length
|
The width of opening door |
Hoistway
Size
(Width*Length) |
The height of top |
The height of pit |
| kg | M/s | Mm | Mm | Mm | Mm | Mm |
800 | 1.0 |
1200*1750 |
800*2100 |
2300*2200 | >=4600 | >=1800 |
| 1.5 | >=4800 | >=2000 |
| 1.75 | >=5000 | >=2000 |
1000 | 1.0 |
1400*1900 |
900*2100 |
2600*2400 | >=4800 | >=1800 |
| 1.5 | >=4800 | >=2000 |
| 1.75 | >=5000 | >=2000 |
Shandong FUJIZY Elevator Co., Ltd. With the authorization of FUJI Elevator Corporation, as a professional manufacturer and researcher of elevators, located in Ningjin County Economic Develepment Zone, Shandong Province, China. It has introduced the high FUJI technology as the specialized professional enterprise with the integration of manufacture, sales, installation, maintenance and transformation. There are more than 500 empoyees, 80 technology engineers and 30 senior quality inspectors in our company. The company has also introduced a large number of international advanced equipments including numerical control laser machines, imported numerical control machining center, imported bender, imported plate shearing machine and large-scale chalk line etc...
Our main products are passenger elevator of standard machine room, small machine room and machine-room-less of variable frequency, voltage and speed, freight elevator, hospital bed elevator, residential elevator, sightseeing elevator, vehicle elevator, special type elevator, escalator and automatic sidewalk. We can also customize various kinds of non-standard elevator according to customers' request. And we have obtained customers' recognition by strong technique power, first-rate manufacture capacity, complete testing measure, excellent quality and good reputation in China and abroad. We are one of the main elevator manufacturers in China.
The successful installation and application of a great number of elevator projects in China and other countries indicate that FUJI Elevator 's strength and excellent quality as a professional elevator manufacture. Our company will keep going and continue providing excellent service for the old and new customers for the purpose of integrity, quality and service in future. Let's build a briliant future together.
