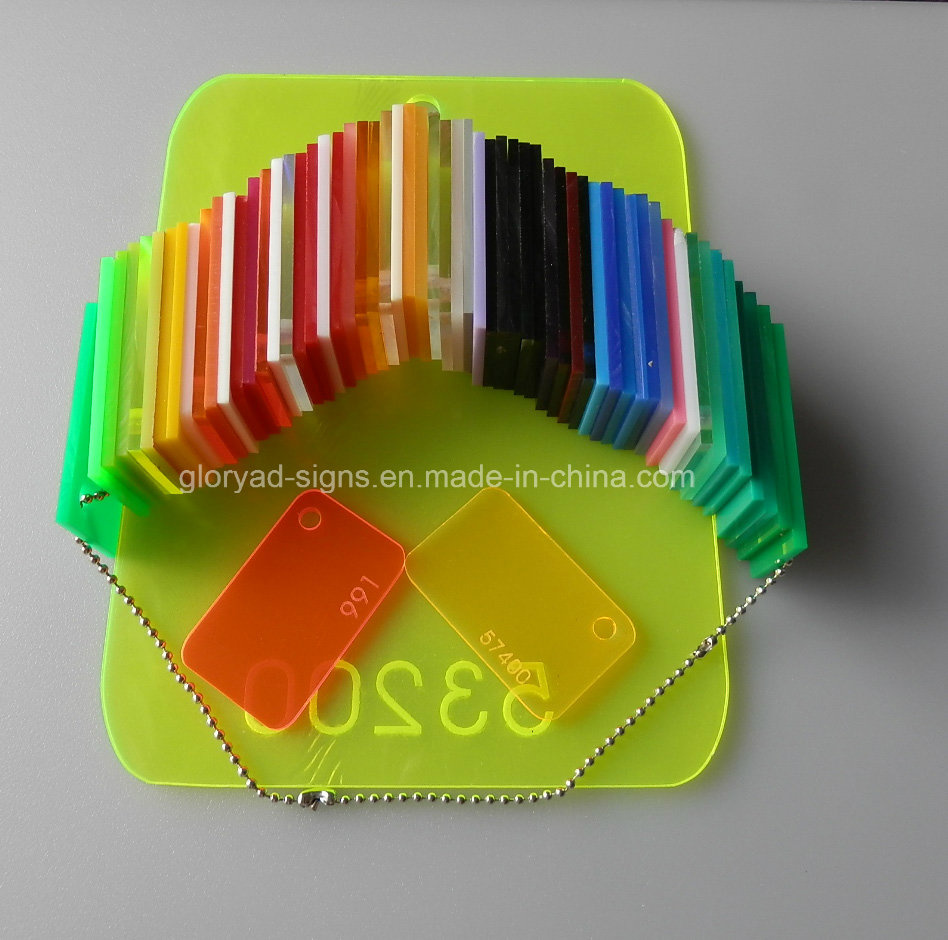

Plastc Material Cast Acrylic Board for Sign display. Acrylic clear plexiglass sheet, Colored cast acrylic sheet, cast Acrylic sheet, plastic sheet, PMMA acrylic sheet, plastic acrylic board.
Product Features:
1. Clear, Transparency rate can go to over 95%.
2. Various color available, long-time lasting.
3. Highly glossy, easy clean
4. Easy to mould. No-toxic acrylic sheet
5. Bright, insulated, chemical en durability, anti-bump, easily processed, a virulence, anti-wallop, recycled.
6. Good at anti-UV. Color fades less than 30 & in 3 years outdoor may show color difference for different batch.
7. Density of acrylic sheet: 1, 200kg/cbm
8. Can be used for vacuuming, engraving, silk-screen printing, polishing, processing, etc.
Specification of Acrylic Sheet
Specification: 1000X2000mm,1220 X 1830mm, 1220 X 2440mm, and 2050 X 3050mm
1000 X 2000mm 1270 X 2490mm, 1270 X 1880mm, 1250 X 2470mm
Can be made as your customized
Thickness: From 1mm to 50mm
Colors: Clear, opal, red, blue, yellow, green, brown. More customized color is welcome!
Production Packing & Inspecting.:
Raw material: 100% virgin material of LUCITE or Mitsubishi for acrylic sheet.
The acrylic sheet was made from the MMA monomer, which was manufactured by worldwide famous factories, after thermal treatment in high temperature drying room for 5-6 hours. It is an excellent product which complies with SGS.
The penetration rate of visible light is 92%. It is well processed and has stable quality.
Our acrylic sheet conforms to the environmental protection standard, already though SGS authentication and CE. With quality inspecting before packing, If these are more than 3 spots, it will be canceled.
Packing of Cast Acrylic Sheet
Both sides covered with kraft or PET film, several sheets per pallet
Bulk cargo packing
2 tons per tray, use wooden pallets on bottom, with packaging film packages all around ensure transportation security.
Full container load packing: 18-20 tons of a 20 foot container with 10 tray.
Product Application:
1.Advertisement: Light Box,Signboard,Signs,Display Rack;
2.Lighting: Daylight Lamp,Ceiling Lamp,Lampshade;
3.Civilian Goods: Bath Room, Art Work, Cosmetics, Bracket,Aquarium;
4.Construction:Show Window,Noise Barriers,Daylighting Shade, Telephone Booth;
5.Vehicle: Door and Window of Car and Train;
6.Medical: Infant Incubator, Many Kinds of Medical Apparatus;
7.Industrial: Instrument Surface Panels & Protecting Covers.
| Mold Size | Art. No. | Product Size with glue tape | Product Size without glue tape |
| 1270*2470 | T | 1220*2420 | 1220*2440and 1220*1830(Standard size)
Cut-to-size services also are available which is according to the demand of customers. |
| 1300*1900 | Q | 1250*1850 |
| 1070*2070 | Q1 | 1020*2020 |
| 1300*2500 | L | 1250*2450 |
| 1330*2550 | L1 | 1280*2500 |
| 1330*2550 | LM | 1280*2500 |
| 1330*2550 | LM2 | 1280*2500 |
| 1370*2610 | L2 | 1320*2560 |
| 1370*1770 | S | 1320*1720 |
| 1710*2710 | R | 1660*2660 |
| 2050*3050 | W | 2000*3000 |
| 1600*3100 | Y | 1550*3050 |
| 2100*3100 | M | 2050*3050 |
| 2110*3110 | M1 | 2060*3060 | |
| 1. Excellent transparency. |
| 2. Good mechanical performance. |
| 3. Good electrical insulation. |
| 4. Stable and durable. |
| 5. Non-toxic. |
| 6. Superior impact resistance. |
| 7. Crack resistance. |
| 8. Superior weather resistance. |
| 9. UV light resistance. |
| 10. Chemical resistance. |
| 11. Stable color under outdoor exposure. |
| |
| 1. Indoor decoration board, partition board in office and house. |
| 2. Product design. |
| 3. Engraving and signboard. |
| 4. Making gift items. |
| 5. Making kitchen and sanitary application. |
| 6. Door and window cover. |
| |
| Thickness (mm) 2 ~ 50 |
| Dimensions (mm) 1020x2020 1220 x 1830, 1220 x 2440, 2050 x 3050,1250x1850 |
| Color clear, milky, opal, black, red, blue, yellow, green |
Our Acrylic Average Physical Properties:
| Specific gravity | 1.19-1.20 |
| Hardness | M-100 |
| Absorptivity of water (24h) | 0.30% |
| Tension | |
| Coefficient of Rupture | 700kg/cm2 |
| Coefficient of Elasticity | 28000kg/cm2 |
| Bending | |
| Coefficient of Rupture | 1.5kg/cm2 |
| Coefficient of Elasticity | 28000kg/cm2 |
| Transmittance (parallel rays) | 92% |
| Full rays | 93% |
| Heat Distortion Temperature | 100oc |
| Coefficient of Linear Expansion | |
| Ultimate Temperature of Continuous operation | 80oc |
| Thermoforming Ranges | 140-180oc |
| Insulation Strength | 20V/mm |
The specification of products
Part size, thickness and weight |
Thickness
Size(m) | 2mm | 3mm | 4mm | 5mm | 8mm | 10mm | 20mm | 30mm |
1.25*2.45
122 244 | 7.35kg
7.14 | 11.0kg
10.7 | 14.7kg | 18.0kg
17.8 | 28.2kg | 35.0kg | 73.0kg | 110kg |
| 1.25*1.85 | 5.6kg | 8.6kg | 11.4kg | 13.8kg | 21.6kg | 26.7kg | 55.6kg | 86kg |
| 1.50*2.10 | 7.6kg | 11.2kg | 14.7kg | 18.2kg | 29.2kg | 36.0kg | 70.5kg | 112kg |
| 1.60*2.20 | 8.5kg | 12.8kg | 17.0kg | 21.0kg | 32.2kg | 40.2kg | 84.5kg | 128kg |
| 1.60*2.60 | 10.0kg | 15.0kg | 20.0kg | 35.0kg | 40.0kg | 50.0kg | 100.0kg | 150.0kg |
| 2.05*2.30 | 11.4kg | 17kg | 22.9kg | 28.5kg | 45.6kg | 57kg | 107.5kg | 170kg |
| 2.05*3.05 | 15kg | 22.8kg | 29.8kg | 37.0kg | 56.5kg | 68.5kg | 150kg | 228kg
|
