| Price: | US $ 5800-10350set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

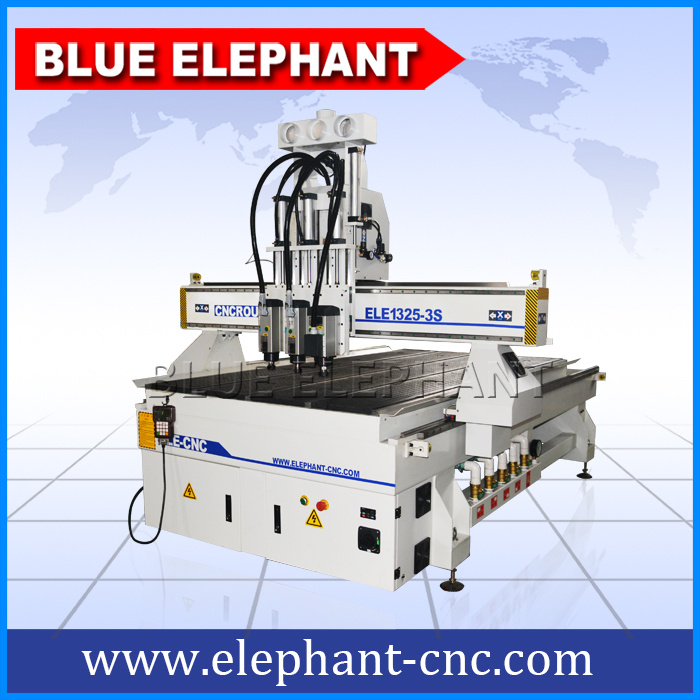

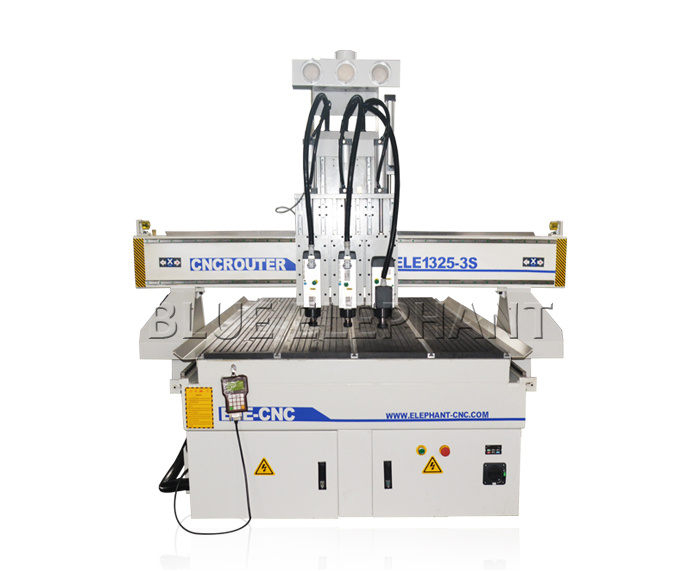

Pneumatic system cnc 1325 multi head , wood door making cnc router cutting , cnc router for wood kitchen cabinet door
Advantages:
Features:
------working size:1300*2500*200mm
------spindle:3kw*2 HSD air cooling spindle; 4.5kw HSD air cooling spindle
------Inverter:5.5kw Taiwan Delta inverter
------DSP A15 control system
------motor and driver: FL118 stepper motor and YAKO 2811 bigger and stronger driver
------working table:T-slot &vacuum work table
------Taiwan HIWIN Linear Guide #20 for XYZ axis
------helical rack & gear transmission for XY axis
------Taiwan TBI ball screw for Z axis
------Japan Omron Limit switch
------FrenchSchneider rotary safety switch
------New type thicker and bigger heavy duty welded frame and gantry
----- 5.5kw air type circulation vacuum pump
------Dust hood 4 pieces with 3 pipe and one support
------220 v 3phase 50 hz(380v for optional)
Parameters:
| Descriptions | Parameters |
| Modle | ELE1325-3S |
| Working area | 1300*2500*200mm |
| Control system | DSP A15 control system |
| Spindle | 1 set 4.5kw HSD air cooling spindle , 2 set 3kw HSD air cooling spindle |
| Spindle speed | 0-18000RPM |
| Inverter | 5.5kw Taiwan DELTA Inverter |
| Motor and driver | FL118 stepper motor , YAKO 2811 big driver |
| Voltage | 220V, 3ph, 50Hz(380v for optional) |
| Linear rail | Taiwan HINWIN/PMI 20# linear guide |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | Vacuum T-slot working table,4 zones |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI 2510 ball screw for z axis |
| Vacuum pump | 5.5kw air type circulation vacuum pump |

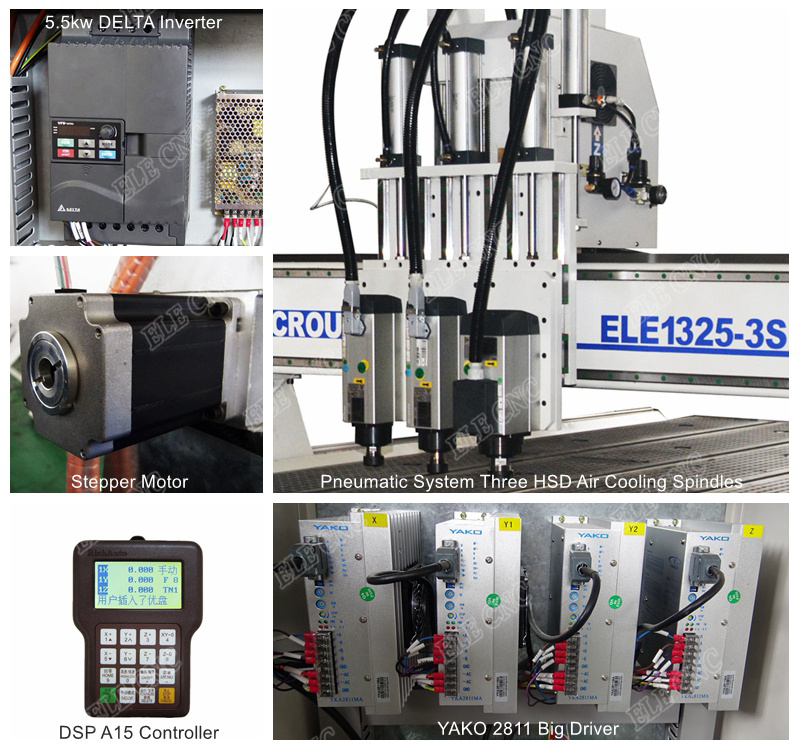

Product details:
Applications:
For wood , MDF , acrylic , mainly for doors , cabinet , furniture , etc.
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

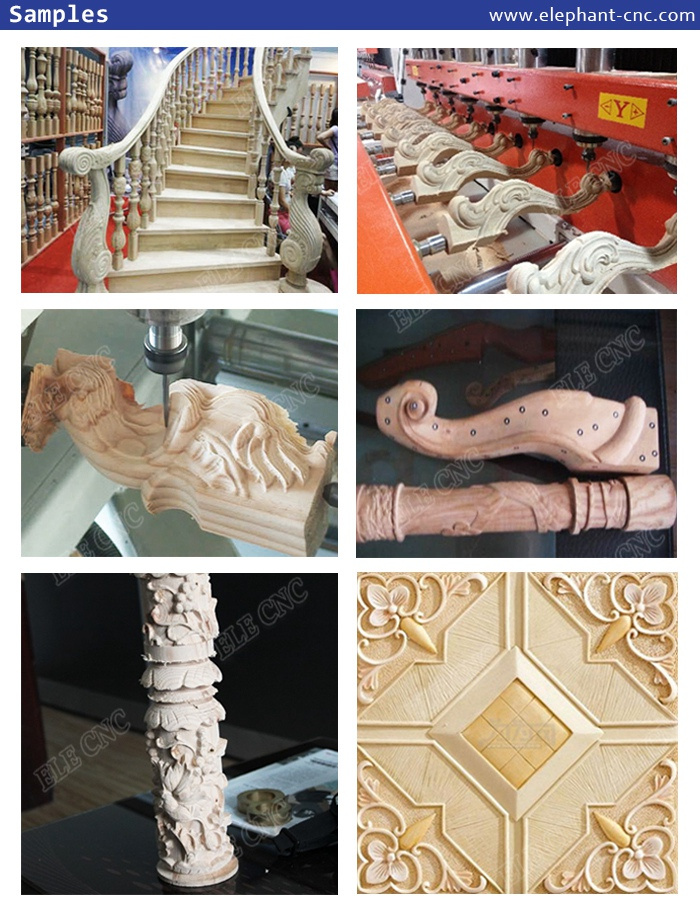

Samples show:
Packaging & Shipping
Certificates
Our Services
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.

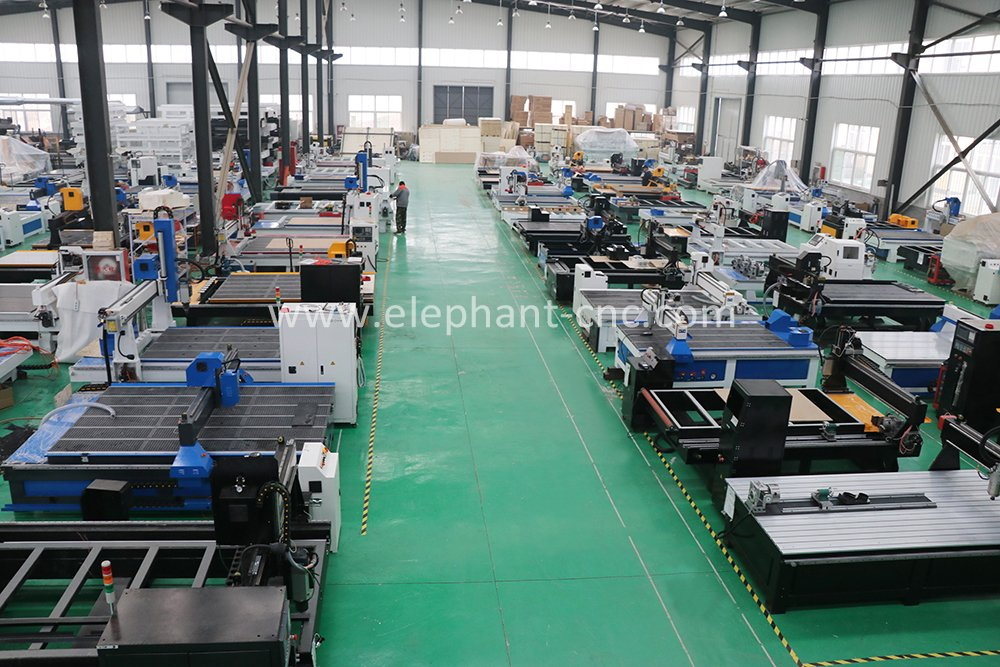

Our Factory
Welcome to contact us.
Manager : Jack
Web: www.elephant-cnc.com
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC220V/3pH/50Hz(Option:380V) |
| Dimension(L*W*H): | 3050*1940*2200mm |
| Spindle Power: | 1 Set 4.5kw and 2 Sets 3kw Italy Hsd Air Cooling S |
| Control System: | DSP A15 Control System |
| Spindle Speed: | 0-18000rpm |
| Inverter: | 5.5kw Taiwan Delta Inverter |
| Working Area: | 1300*2500*200mm |
| Linear Rail: | Taiwan Hinwin/PMI 20# Linear Guide |
| Motor And Driver: | Stepper |
| Structure: | Thicken and Bigger Welded Steel Tube Frame |
| Spindle Layout: | Spindle Over |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
| Spindle Number: | Three Spindles |
