Product Specifications
Prod Model: |
TSM30WC |
Model No: |
Tsm30wc |
Laser Power: |
10W/30W/60W/100W |
Max.Marking Area: |
110*110mm |
Cooling Way: |
Air Cooling |
Control: |
CNC |
Guaranty: |
One Year Free Maintanence |
Certification: |
Ce SGS FDA ISO |
Marking Depth: |
<2mm(Determined by Material) |
Marking Speed: |
≤7000mm/S |
Min Linear Width: |
0.15mm |
Product Description
>>>Brief introduction

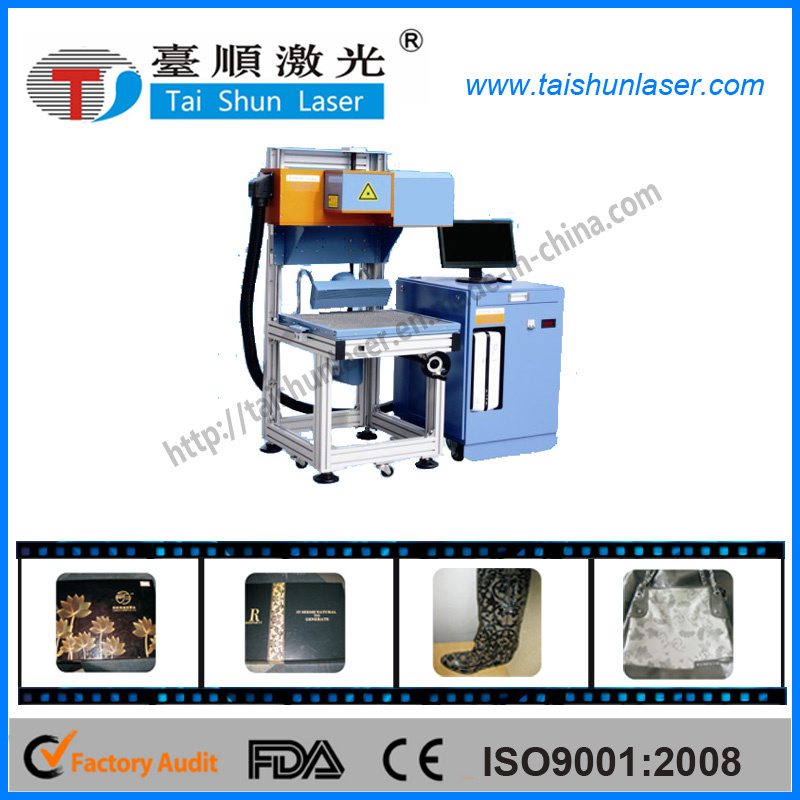

CO2 3D dynamic laser marking machine takes many factors into consideration, such like big power, larger working area, high efficiency marking, bad working environment, so we do many improvements on selecting device and designing.
It has many advantages such like fine laser spot with good consistency, longer life span laser tube. This system adopt imported appliance.
It is equipped with imported high speed scanning galvanometer and optical devices.
The machine can work for a long time with extremely stable performance.
>>>Application industry
Materials: Most nonmetallic materials, such as leather, cloth, wood, bamboo, paper,
Organic materials ect.
Industry: Glasses, leather products, garment, wooden products, crafts gifts, packaging.
>>>Feature
1. Full sealed and maintenance free laser optic system. You can use it at installation without adjustment.
2. It adopts the original imported RF laser, makes the machine enjoys a life time more than 20k hours.
3. The working efficiency is 20% higher than other similar machines with high precision and high speed marking performance.
4. External dual cycle industrial cooling water system enables the whole machine run more stably with lower power consumption.
5. The strict multiple protection control design applies to a wide range of working
Environment temperature, it ensures 24 hours continuous and reliable working of the laser marking system.
6. Under Windows interface, it can compatible with a variety of software output files, such like AutoCAD, CoreDraw, Photoshop.
Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
It support automatic coding, serial number, batch number, date, bar code and
Two-dimensional code marking.
7. Especially suitable for engraving and marking on stones and leather materials.
8. With a big aluminium shell, the laser head is protected well. Also it makes the body immune to the impact of laser radiation.
>>>Technical parameters
Machine Type | Non-metallics CO2 Laser Marking Machine |
Machine Model | TSM30WC |
Laser Output Power | 10W | 30W | 60W | 100W |
Laser Type | American RF CO2 Laser Tube | China Glass Laser Tube |
Laser Tube life Time | 45000+ hours | 1500~3000 hours |
Standard Working Area: | 110mm×110 mm |
Optional Working Area: | 70mm×70mm, 175mm×175mm |
Marking Depth: | 0.01~0.3mm |
Marking Speed: | 7000mm/second |
Repeated Accuracy: | 0.01mm |
Laser Wavelength: | 10.64um |
Minimum Line Width: | 0.015mm |
Power Supply: | 380V/220(50Hz-60Hz) |
Machine Power: | 2KW |
Dimensions (L×W×H) | Laser Optical System | 240×1280×1200 (mm) |
Control Cabinet | 590×560×800 (mm) |
Water-cooling System | 540×700×900 (mm) |
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cuting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
