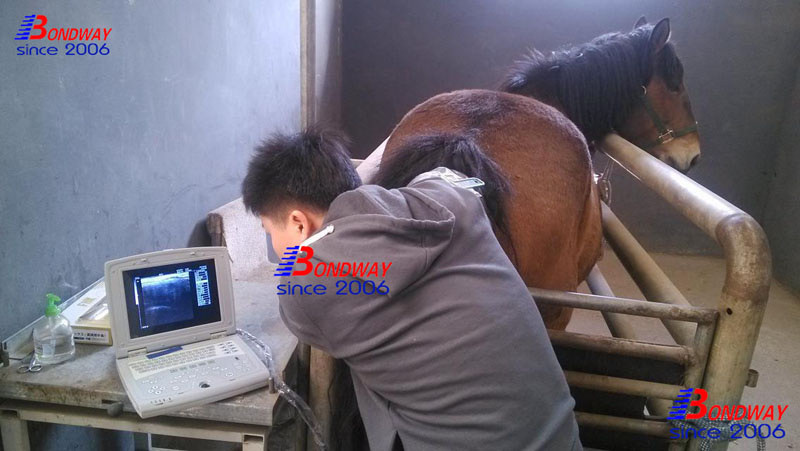

Application*Equine -Reproduction, Tendon & Abdominal, Cardiac, Breeding,etc.
*Farm Animal -Reproduction imaging on Bovine, Swine, Small ruminants and other large animals
*Small animal -Criticare, Abdominal, Cardiac,etc
Key Features1) Smaller-sized and very light for easy carry-on.
2) Rechargeable battery operated and AC power supply.
3) Backfat and lean percentage of swine calculated automatically
4) Psuedo Color System
Technical Specs 1.Probe: Electronic convex array, linear array, transrectal and microconvex probe.
2.Gray Scale:256

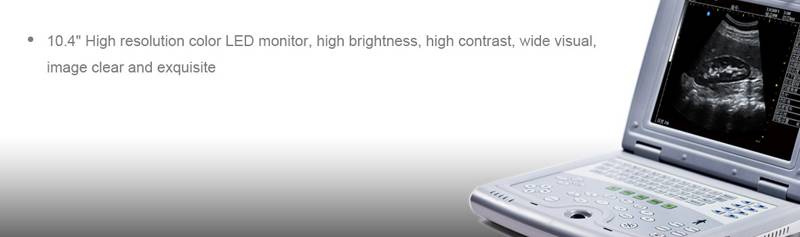

3.LCD Display: 10.4" crystal
4.Power Supply:100-240V 50-60Hz, 70VA
5.Rating 12V 3.0A
6.Main Unit Size: approx. 290*245*50mm(L*W*H)
Primary Function 1.Display Mode: B, B/B, 4B,B/M, M
2.M scanning speed: 1s,2s,3s,4s,5s,6s,7s,8s
3.Zoom: *0.8,*1.0,*1.2,*1.5,*1.6,*2.0,*2.4,*3.0
4.Depth Enhancement/ Pan Function
5.Local Zooming
6.Adjustment and display of near field,far field,total gain and dynamic range
7.Single-point, multi-point focusing
8.Frequency conversion
9.Angle Change
10.Frame Correlation
11.Gamma Correction, edge enhancement for image post-processing
12.Image Freeze/unfreeze
13.Vertical, horizontal flip and Black/white conversion
14.Psuedo Color Display
15.Patient information, image annotation and auto time display
16.Body Marks: 64
17.Measurement of distance, circumstance, area,volume,slope,heart rate, and cycle
18.Calculation of Bovine,Equine,Ovine,Canine and Feline;
19.Puncture Guide
20.Engery Saving
21.100 frames image storage
22.256 frames cine loop
23.OB Report
24.PAL-NTSC Conversion
25.Image Transfer to computer thru USB port.
Standard Configuration1)Main unit 1pc
2)5.0/6.5/7.5Mhz Rectal Linear Probe 1pc
3)Probe Connector 1pc
4)Pseudo Color System 1set
5)Internal Rechargeable Battery 2pc
6)Power Adapter 1pc
Operation Manual (English) 1pc
Optional Probes1)2.0/2.5/3.5/5.0Mhz Convex Array Probe
2)5.0/6.5/7.5/9.0Mhz Linear Array Probe
3)5.0/6.5/7.5/9.0Mhz Micro-convex Array Probe
4)4.0/5.0/6.5/7.5Mhz Rectal Linear Probe (without handle)
5)4.0/5.0/6.5/7.5Mhz Rectal Linear Probe (with handle)
6)2.0/2.5/4.0/5.0Mhz Rectal Convex Probe
Packing InformationCarton Size:440mm*220mm*430mm
Volume:0.042CBM
Net Weight:2.25kg/5lbs
Gross Weight:6.75kg/15lbs
Volumetric Weight:8.5kg/18.7lbs

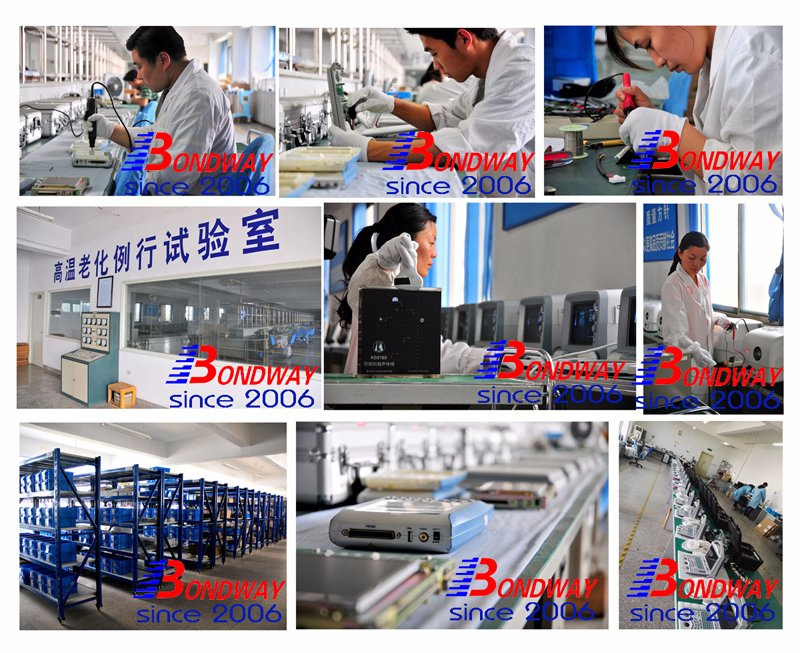

Shenzhen Bondway Electronics Co., Ltd is a reputed company, established on July 11, 2006 under the law of People' s Republic of China, dedicated to provide quality medical equipment to the GLOBAL market. As an professional manufacturer and experienced exporter, Bondway is aimed to supply high-quality products at an unbeatible price, we believe that during the days of economic and cultural globalization, the key point for running business successfully both home and abroad is to be creative, considerate, passionate, committed and industrious.
Extensive selection of quality products, both veterinary and human version available, that we' re manufacturing and distributing:
1)Digital Ultrasound Scanner (Portable, Laptop, Palmtop, Wrist-top, Trolley-style ),
2)Patient Monitoring System, Pulse Oximeter (Handheld or Desktop)
3)Vital Sign Monitors.
With these products, we are able to personalize circumspect service to cater to customers' needs. We are confident to become a leading company in the field of medical equipments in the near future.
Our mission is to be a long-term strategic partner who regards customers as our teammates, we are willing to focus all efforts on how to make more contribution to our society and health of the people with our product.
Our vision is to be a well-known leading supplier of medical devices and a profit supplier, creating value for customers, partners, and employees. All our work would be worthwhile only if it goes beyond customer' S requirements and expectations.
As a fast-growing company of VETERINARY and HUMAN-USE medical device suppliers from China, Bondway has been devoted to and are now establishing a worldwide network of highly qualified and respectable distributors specialized in sales, marketing and customer service in their respective local areas. These distributors or partner build up the backbone of the Bondway' s sales network and are instrumental to Bondway's continuing success
Till now, we' ve exported our products to over 110 countries or regions and we're interested in setting up a long-term, win-win cooperation with our customers, agents and distributors. We've been and will continue to grow jointly with all our business partners
