Brief introduction of CX-IPH-1205 Industrial pH meter
1.The clear display, simple operation and high measuring performance provide it with high cost performance.
2.It can be widely used for continuous monitoring of PH of water and solution in thermal power plants, chemical fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many other industries.
| CX-IPH-1205 Industrial pH meter |
| Measuring range | 0~14.00PH, -l999~+1999mV, 0~99.9ºC |
| Resolution | 0.01PH, 0.1mV, 0.1ºC |
| Accuracy | ±0.05pH, ±l mV, ±0.3ºC |
| Display mode | LED (nixie tube) display, high brightness, eye-catching and highly readable, long viewing distance |
| Temperature compensation | automatic: 0 - 99.9 ºC, manual: 0 - 99.9 ºC |
| Input impedance | >1012Ω |
| Protection grade | IP65 |
| Isolated current output | 4~20 mA(load <750 Ω) |
| Alarm relay | AC220V, 3A, isolated output of alarming signals |
| Communication interface | RS485 or 232(optional) |
| Power supply | AC220V, 50Hz ±1Hz, DC24V |
| Working conditions | ambient temperature: 0-60ºC; relative humidity ≤90% |
| Power-down memory | > 10 years |
| Weight and dimension | 96 x 96 x 110 mm; dimension of the hole: 92 x 92mm ,0.8kg |
| Installation mode of secondary meter | Drilling type |
| Installation mode of electrode | Flow-through/immerged/flanged/pipe-based |
Brief introduction of CX-ORP-0209 ORP pH meter
CX-ORP-0209 series microcomputer industrial control instrumentation is used to test the solution ORP value of precision instruments, and its full-featured and stable performance. Simple operation, making industrial enterprises in the field of test and control pH ideal instrument.
LCD (liquid crystal) display, using high-performance CPU chip, high-precision AD conversion technology and SMT technology, to complete multi-parameter measurement, temperature compensation, range conversion, instrumentation, high precision, good repeatability.
Current output and alarm relay coupled with optical isolation technology, anti-jamming performance, to achieve remote.Isolated output alarm signal, alarm upper and lower limits can be set arbitrarily, alarm hysteresis revoked.
CX-ORP-0209 series instruments can be equipped with various types of ORP electrode.
| CX-IPH/ORP-0209 Industrial ORP Meter |
| Measuring range | -1999 ~ +1999 mV |
| Resolution | 1mV |
| Accuracy | 1mV, ± 0.03 C |
| Stability | 3mV/24h |
| ORP standard solution | 6.86 4.01 |
| control range | -1000 ~ +1000 mV |
| Automatic Temperature Compensation | 0 ~ 100 C (pH) |
| Manual Temperature Compensation | 0 ~ 80 C (pH) |
| Signal output | 4 ~ 20 mA output isolation protection |
| Communication Interface | RS485 optional |
| Control Interface | ON / OFF relay output contacts |
| relay hysteresis | freely adjustable |
| Current output load | maximum allowable load is 750 |
| Signal Input impedance | ≥ 1 × 1012Ω |
| Insulation resistance | ≥ 20M |
| Signal Input impedance | ≥ 3 × 1011 |
| Operating voltage | 220V 22V, 50Hz 0.5Hz |
Brief introduction of CX-ICM-1105A Industrial Conductivity Meter
1.The clear display, simple operation and high measuring performance provide it with high cost performance.
2.It can be widely used for continuous monitoring of conductivity of water and solution in thermal power plants, chemical fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many other industries.
| CX-ICM-1105A Industrial Conductivity Meter |
| Measuring range | (0~20000) μS/cm; temperature: 0~99.9ºC |
| Display mode | LED (nixie tube) display, high brightness, striking to the eye and highly readable, long viewing distance |
| Resolution | 0.001μS/cm, 0.1ºC |
| Electrode constant: | 0.01-20 μS/cm (Electrode K=0.01),0.1~200 μS/cm (Electrode K=0.1)
1.0~2000 μS/cm (Electrode K=1.0) ,10~20000μS/cm (Electrode K=10.0) |
| Temperature compensation | Automatic 0-99.9ºC, manual 0-99.9ºC (25ºC Conversion) |
| Accuracy | ±l 0%FS, ±0 3ºC |
| Isolated current output | 4~20 mA(load <750Ω) |
| Alarming relay | AC220V, 3A, isolated output of alarming signals |
| Communication interface | Isolated RS485 |
| Power supply | AC220V, 50Hz ±1Hz DC24V |
| Protection | IP65 |
| Working condition | Ambient temperature: 0-60ºC; relative humidity≤90% |
| Power-down memory | >10 years |
Brief introduction of CX-IDO-1304 Industrial Dissolved Oxygen Meter
1.CX-IDO-1304 has special price advantages due to its simplified functions on the premise of unaffected performance..
2.The clear display, simple operation and high measuring performance provide it with high cost performance.
3.It can be widely used for continuous monitoring of the dissolved oxygen value of the solution in thermal power plants, chemical fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many other industries.
| CX-IDO-1304 Industrial Dissolved Oxygen Meter |
| Measuring range | 0.00~1 9.99mg / L 0.0~199.9% |
| Resolution | 0. 01 mg/L 0.01% |
| Accuracy | ±1.5%F.S |
| Control range | 0.00~1 9.99mg/L 0.0~199.9% |
| Temperature compensation | 0~60ºC |
| Output signal: | 4-20mA isolated protection output |
| Output control mode | On/Off relay output contacts |
| Relay load | Maximum 230V5A (AC) ,Maximum l l5V10A (AC) |
| Current output load: | Allowable maximum load of 500 ohm. |
| On-ground voltage insulation Degree | minimum load of 500VDC |
| Operating voltage | 230VACl0%, 50/60Hz |
| Dimensions | 96 × 96 × 115mm ,Dimension of the hole: 91 × 91mm |
| Weight | 1 kg |
| Working conditions | Ambient temperature: 5 - 35 ºC,Air relative humidity: ≤ 80% |
| Except for the earth magnetic field, there is no interference of other strong magnetic field around |
Brief introduction of CX-IDO-1304 Industrial Dissolved Oxygen Meter
1.CX-IDO-1304 has special price advantages due to its simplified functions on the premise of unaffected performance..
2.The clear display, simple operation and high measuring performance provide it with high cost performance.
3.It can be widely used for continuous monitoring of the dissolved oxygen value of the solution in thermal power plants, chemical fertilizer, metallurgy, environmental protection, pharmacy, biochemical engineering, foodstuff, running water and many other industries.

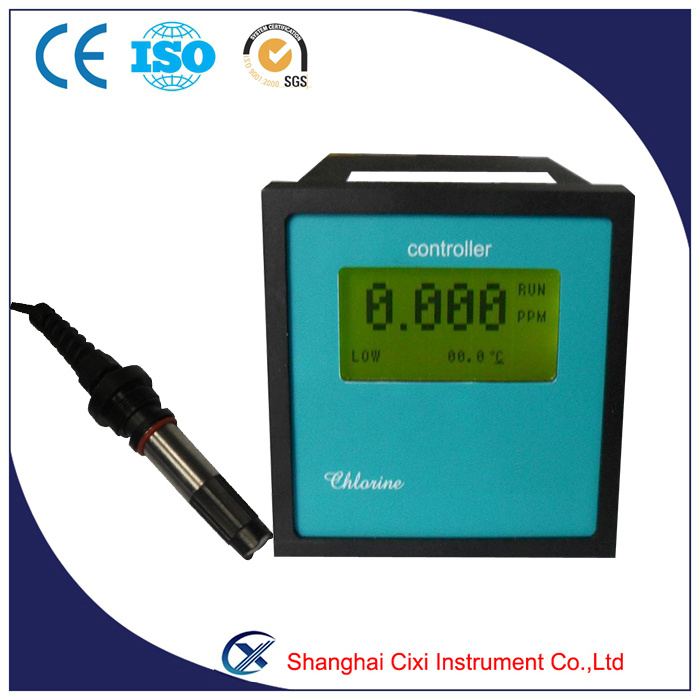

| CX-RCA-1503 Residual Chlorine Analyzer |
| Measuring range | Optionally 0-2-ppm or 0-20 |
| Accuracy | 0.01ppm |
| Operating temp | -40-70C |
| Display mode | Touch screen LCD |
| Signal output | 0/4mA max. load 1k, RS232 |
| Control action | Three-way relay ON/OFF |
| Set point | 2 points |
| Control capacity | 250VAC/7A |
| Net weight | 0.5 Kg |
| Opening dimension | 92x92x110mm |
