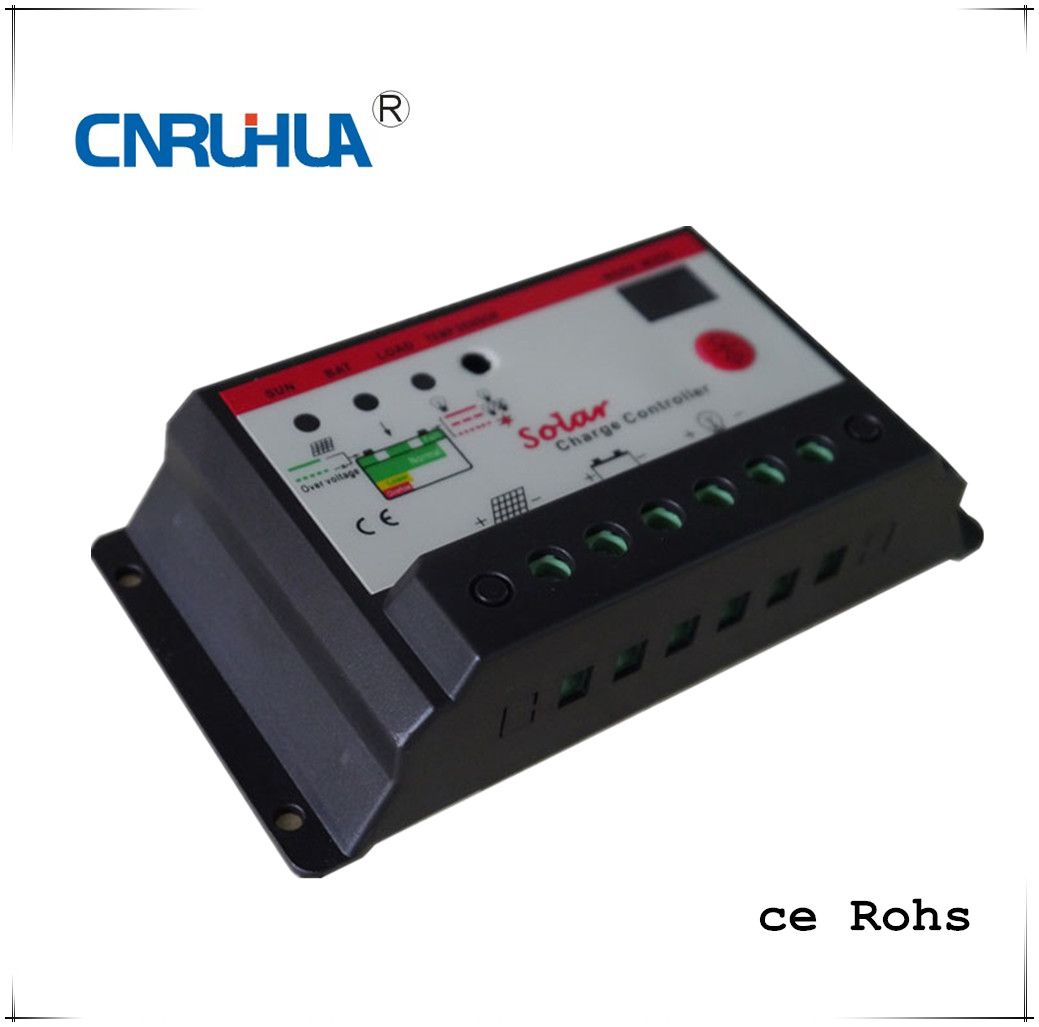

Promotion Energyy Saving solar charger controller
12/24V AUTO Solar Controller
Part One, Main Features
1 .intelligent control with single chip and professional software.
2 with precise battery discharge control by use of battery discharge features. Different discharge rated with different final voltage.
3 with over charge, over discharge, short circuit, over load, wrong connection auto protection. When the above mention functions work, it won't destroy any components of the controller, it won't burn the fuse.
4 to use series connection PWM circuit, it is 3%-6% more effective than non-PWM circuit when charging. To use float charging control mode to prolong the system life span; with high precision temperature compensation function.
5 with LED to show the battery state
6 to use industrial grade chip, it can work under environment such as cold, high temperature,humid;At the same time, it uses a crystal oscillator timing control, the timing control accurately.
7 to use LED display and settings, one button can carry out all settings.
8 to use Flash memory to keep record of all the working control point, to make the settings digitalized.
9 with DC discharge or IHZ strobe flash discharge mode which is especially suitable for traffic light control etc.
Part Two, System Instructions
The solar controller is designed for solar DC power supply system, DC solar street light system, to use professional intelligent chip to control it. To use one button light touch switch to finish all the manipulation and settings. The controller has many protective functions, for example, short circuit, over load, wrong connection, over charge, over discharge, auto cut, auto recovery etc. with detailed charging battery state, load, and breakdown signal LEDs. It can high precisely control cos of the chip can get battery data such as voltage, discharge current, environment temperature etc. It uses PWM battery charge mode, to assure the battery at its best state and prolong its life span. It has many working modes, discharge choices, to meet different users' needs.
| Model | 5A | 10A | 15A | 20A | 30A |
| Rated charge Current | 5A | 10A | 15A | 20A | 30A |
| Rated Load Current | 5A | 10A | 15A | 20A | 30A |
| System V | 12V; 24V/12V AUTO |
| Over load, short circuit protection | 1.25 times by rated current, 60 seconds, 1.5 times by rated current,5 seconds--- overload protection; ≥3 times by rated current--- short circuit protection |
| Empty load consumption | ≤6mA |
| Charge Circuit Voltage Drop | ≤0.26V |
| Discharge Circuit Voltage Drop | ≤0.15V |
| Over Voltage Protection | 17V, ×2/24V |
| Working Temperature | Industrial Grade: -35 Centigrade -+55 Centigrade (Suffix I ) |
| Increase Charge Voltage | 14.6V, ×2/24V (10 min when discharging) |
| Direct Charge Voltage | 14.4V, ×2/24V (10 min ) |
| Float Charging | 13.6V, ×2/24V (till come down to charging recovery voltage) |
| Charge Recovery Voltage | 13.2V, ×2/24V |
| Temperature Compensation | -5mv/ Centigrade /2v |
| Under Voltage V | 12.0V, ×2/24V |
| Over discharge Voltage | 11.1V, ×2/24V |
| Over Discharge Recovery Voltage | 12.6V, ×2/24V |
| Control Mode | PWM |
