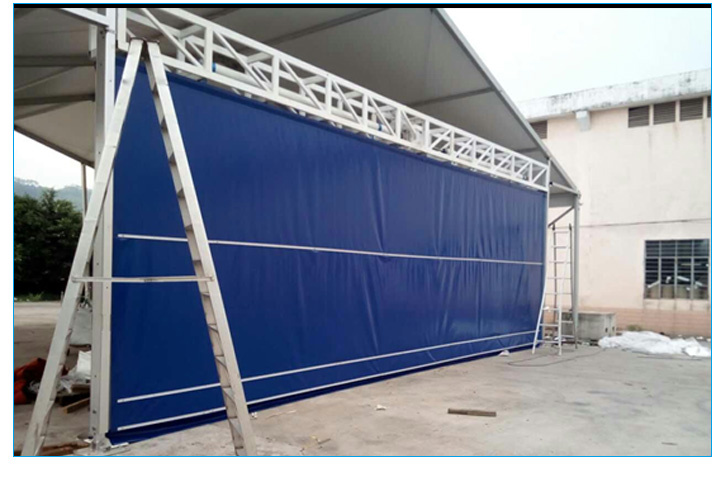

Flexible lifting doorSpecial type super big automatic door, widely used in shipyard, blasting or painting room, hangar, and large machinery factories.Widely used in large size garage, painting room, small scale hangar, and large machinery factories.It is composed of upper rail, bottom rail, upper guide wheel, bottom guide wheel, main column, parallelogram hinge mechanism, PVC door curtain, aluminum wind bar, handle, etc.
Production Description1.Main skeleton:Formed with steel tubes
2.Curtain:Double curtain, high density PVC fabric.
3.Two sets of hydraulic push rod brake and one set of height limitation device are built in the hoist mechanism, the upper and lower limit switch are used to guarantee no over run of the door.
4.Eddy current AC motor combine with cylinder type gear box, drive the parallel hoist winding drum, wheel steel cable is used to lift up the door curtain.
5.On the shaft between the motor and gear box and the output shaft of the gear box, two hydraulic push rod brake system are applied respectively.The running speed of the door is adjustable by the eddy current of the motor, the end limit switch is the hoist drum limits the highest and lowest position of the door.
6.Safety brake system will lock the door in case the steel cable is broken during the door running.
Technical Data:| Curtain tensile strength | 400 dan/5cm |
| Working temperature | -30ºC to +70ºC |
| Wind resistance: | Beaufort Grade 12 or above (35m/s or above) |
| Opening and closing speed: | 0.2-0.6m/s |
| Work life: | 50 years |
| Power supply: | Three-phase 380V±10%V, 50/60Hz |
| Optional colors of fabric: | Blue, Yellow, Red, Grey, White |
Features:1.Surface is PVC fabric, double layer and beautiful.
2.Main skeleton is formed with steel tubes.It is designed through precise structure calculation with universal steel structure software, meeting requirements of wind resistance.
3.Safety Drop-proof device, can stop falling of door body when the steel wire of motor breaks suddenly, protecting human's life under the door.
4.Multi-limit design guarantees precise running.
5.Inching control design makes sure there will always be a human operating the door when it runs.This can avoid accidents caused by human-absence.
6.High safety class of motor and steel wire, guarantees reliable operation.

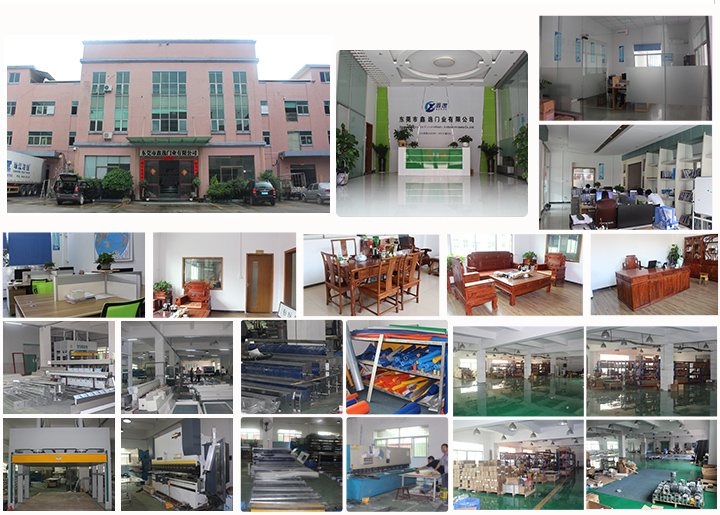

Company InformationDongguan Xinyi Door Industry Co., Ltd.Is a innovative service enterprise that integrates design and installation, wholesale, technical guidance, after-sales service and maintenance of automatic doors products.We are specialize in developing and manufacturing High Speed rolling door, PVC rolling door, High speed door, Industrial rolling door, Industrial overhead door, Industrial high speed stacking door, Industrial folding door, Free impact door, Medical airtight sliding door, Medical horizontal sliding door, Clean door, Stainless steel rolling door, Crystal rolling door, etc.
