Price: | US $ 50000-100000/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

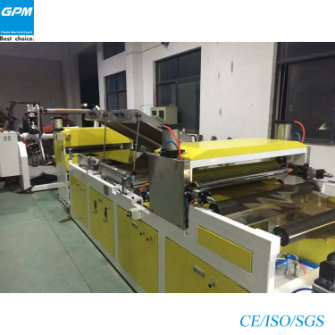

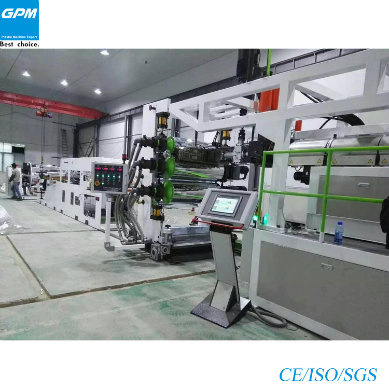

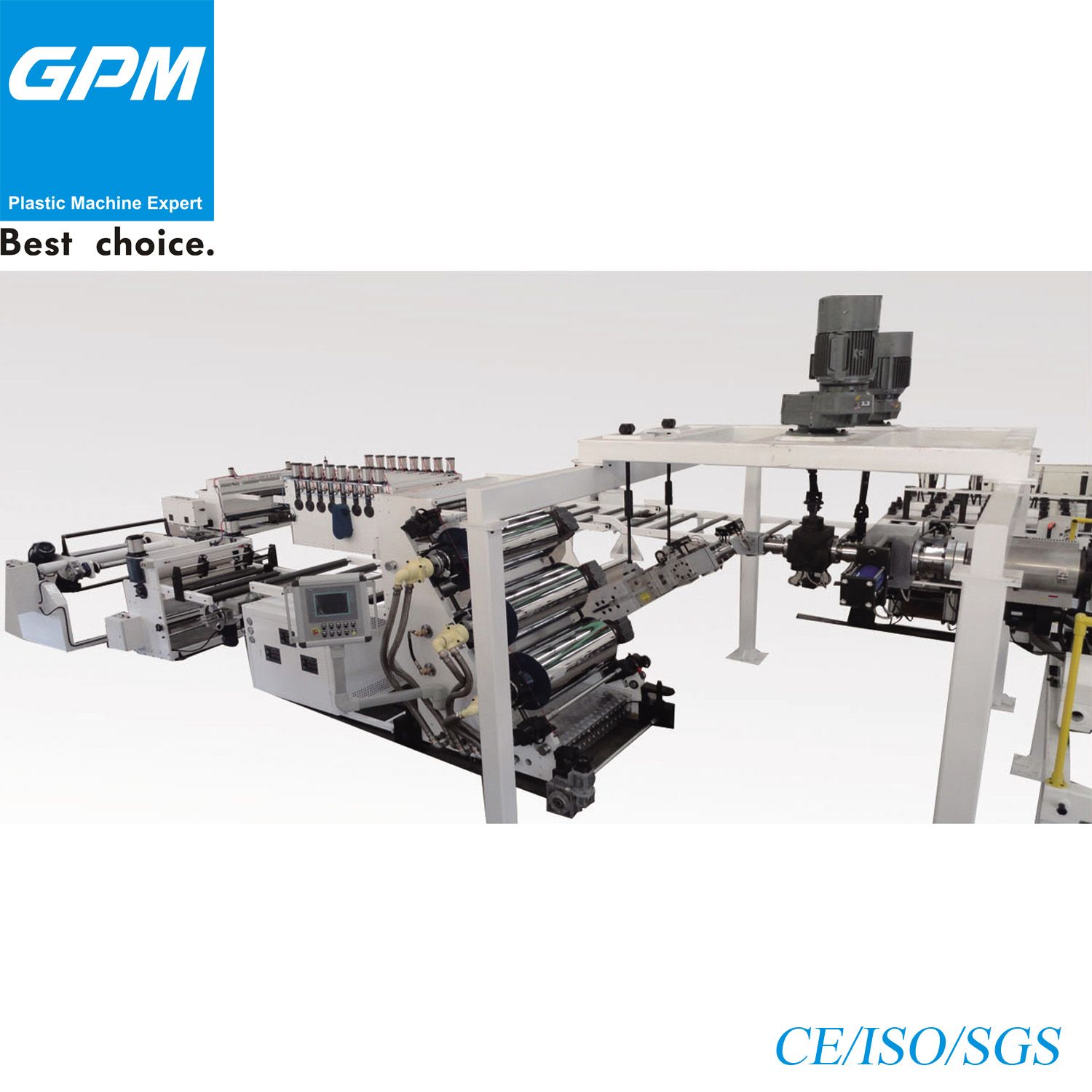

PVC Rigid/Soft Sheet Extrusion Line

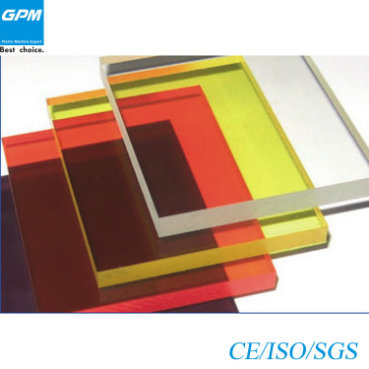

PVC transparent sheet, PVC soft sheet
PVC transparent sheet is widely used in vacuum forming packing for hardware, electronics , food, medicine, and craftworks as well as other high quality printing.
PVC soft sheet is widely used for automobile plastic carpet, aisle curtain, table cloth, equipment, suitcase, liner of hardware, indoor and outdoor upholstery, blister sheets, edge banding, architectural plates.
PVC rigid transparent sheet has the features of flame resistance, self-extinguishing , low price, high transparency , good surface gloss, less crystal points, slght water marks , strong impact resiatance, good process ability.
PVC Rigid/Soft Sheet Extrusion Line | |||
Model | GSZ65/132-GF800 | GSZ80/156-GY1220 | GSZ92/188-GY1600 |
Thickness | 0.06-8mm | 0.06-25mm | 0.3-35mm |
Width | 800 | 1220 | 1600 |
Main power | 37kw | 75kw | 110kw |
Product type | blister sheets, edge banding, architectural plates. | ||
Capacity | 200kg/h | 400kg/h | 800kg/h |
Prod Model: | GSZ65/132 GSZ80/156 GSZ92/188 |
---|---|
Product Name: | PVC Rigid/Semi Rigid/Soft Sheet Extrusion Line |
Processing Type: | Plate Extrusion |
Raw Material: | PVC Powder Wood Powder CaCO3 |
Usage: | Advertising Board, Decorative Panels, Building Mat |
Motor: | Simens |
Inverter: | ABB Brand |
Contactor: | France Schneider Contactors |
Temperature Control: | Japan Omron |
Output: | 200-800kg/H |
Motor Power: | 37kw-110kw |
Product Type: | PVC Board |
Board Layers: | Single Plate |
Automation: | Automatic |
Computerized: | Computerized |
Certification: | ISO9001:2008 |
