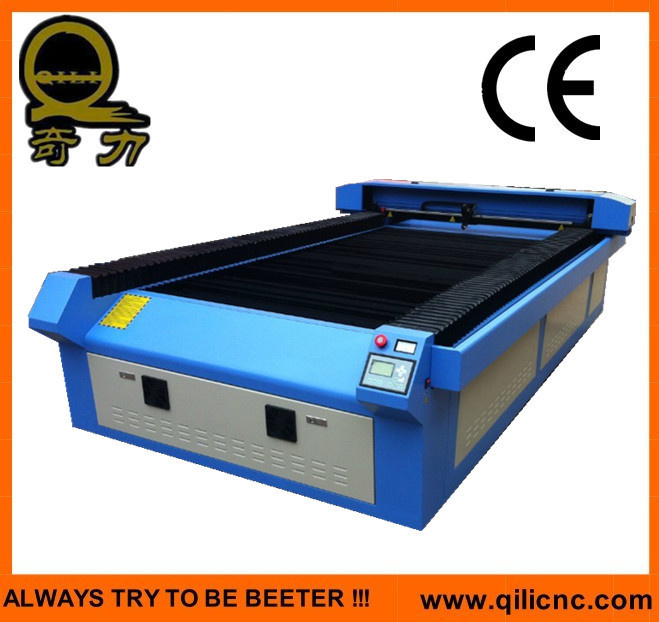

QL-1325 China Factory Supply CE 3D Laser CNC Cutting Machine
Performance Features1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands
Machine Specifications:Model QL-1325
Working area 130cm*250cm
Laser power 80w/100w/130w/150w
Laser type CO2 sealed laser tube, water-cooled
Engraving speed 0-6000cm/min
Power supply 220V/50HZ, 110V/60HZ
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, PhotoShop, AutoCAD, TAJIMA
Driving system Stepper motor
Optional parts motorised table, rotary, Autofocus
Material Cut EngraveAcrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes
Leather, Pig leather, Cow Leather, Sheep leather YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
Neopren® YesYes
Paper, Cardboard, Chipboard, Press Board YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes
Guarantee&Aftersales Service(1)Guarantee for one~two year
(2)24-hour technical support by email or phone
(3)English manual and video CD for machine using and maintaining
(4)Jinan Hongye CNC Machine Co., Ltd provides free operation training service in Hongye factory.
| Model | QL-1325 |
| Working area | 1300X2500mm |
| Laser power | 80W/100W/(130W/150W) |
| laser generrator type | CO2 sealed laser tube |
| Cooling method | water cooling |
| Cutting speed | 0-50000mm/min |
| Laser energy control | Software setting |
| Mini-shaping character | Chinese 2.0mm*2.0mm
English:1.0mm*1.0mm |
| Max-scanning precision | 2500DPI |
| Positioning precision | ≤+0.01mm |
| Supported graphic foemat | DSP PLT BMP DXF AI |
| Software | Tiandao embroidery software etc. |
| Division cutting | able |
| Working voltage | AC110-220V±10V, 50HZ-60HZ |
| Control system | DSP system |
| Drive | stepper motors |
| Optional | Lift table honeycomb-like table |
Samples:
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
