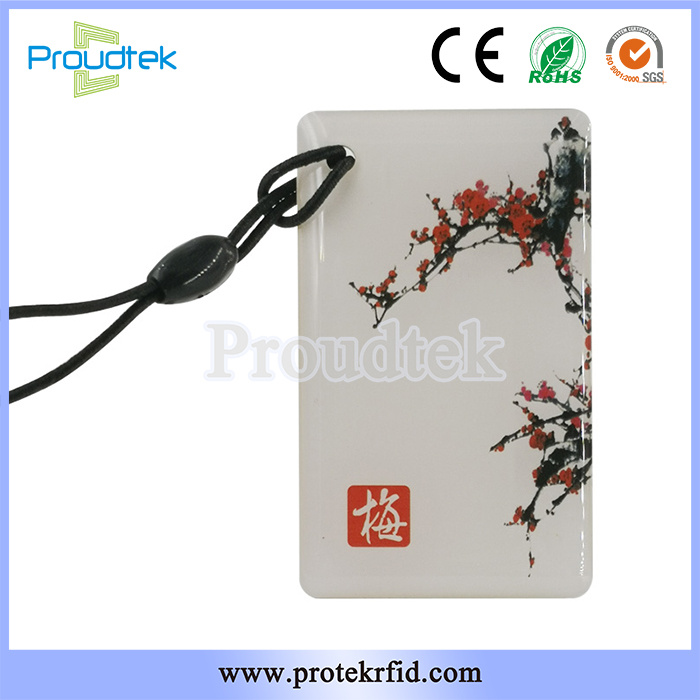

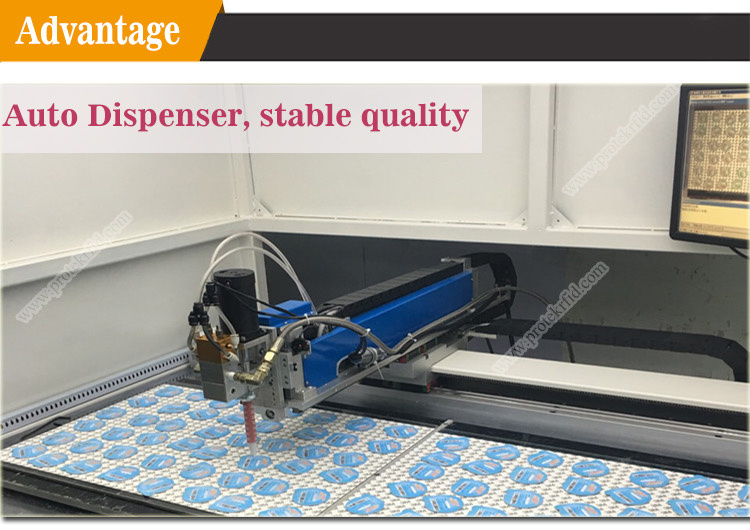

RFID epoxy tag is a customized shape and size PVC card printed with certain content and laminated with RFID chip, then dispensed with resin glue to protect PVC printing content and card edge.
One-sided or double-sided coated RFID epoxy tag is very commonly used in our daily life, like bus ticket, access control key, membership card. Full coated RFID epoxy tag means the PVC material RFID chip card is fully wrapped with resin glue even including card edge. This craft can better protect RFID tag, avoid tag edge broken from shocking or falling, extend the tag's life time, And at the same time enable the tag looks more luxury and more glittering.
SpecificationProduct Name | RFID Epoxy Tag |
Model NO. | |
Material | PVC, copper wire, Epoxy |
Shape | Round, rectangle, waterdrop, heart, animal, etc. |
Size | Customized |
Frequency | 125khz, 13.56mhz |
Supported Standards | ISO14443, ISO15693 |
Chip | LH(125KHz) TK4100, EM4200, EM4305, T5577, HITAG1/2/S HF(13.56MHz) FM11RF08, Mifare S50/S70, Mifare desfire 2K/4K/8K, Mifare NTAG213, NTAG215,etc |
Function | Read/write |
Dimension | Choose from existing mold or customized |
Reading distance | 2-5cm (depending on reader) |
Date retention | 10 years |
Writing Cycle | 100000 times |
Working Temperature | -25~70 ºC |

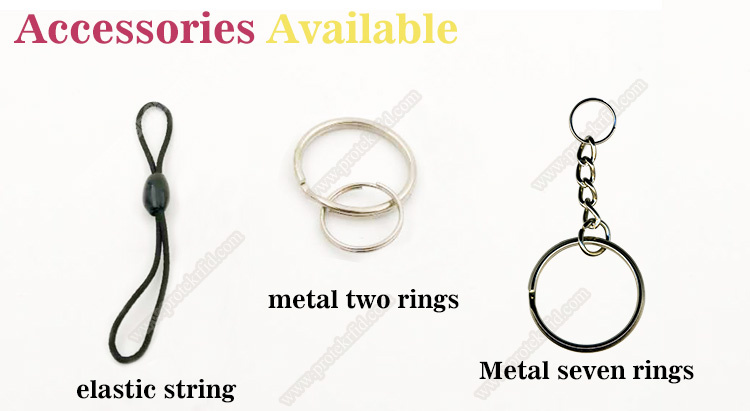

Accessories | elastic lanyard or metal keyrings |
Delivery | By courier to door, by air freight or sea freight or railway transport |
Application:
Time attendance, cashless payment, ID badge, transportation ticket, membership card, access control, promotion activity gift, etc.
Personalization
1. Offset printing with vibrant color and picture
2. Printing with barcode or QR code
3. Laser engraving number
4. Printing with gold/silver background, laser material, etc.
5. mount with eyelet
Contact us for free sample
Founded in 2008 in Shenzhen, Proudtek has grown rapidly from a small trading company into a leading manufacturer of RFID cards, keyfobs, tags, wristbands. We have supplied the global market millions of transponders for applications ranging from security access control to logistics management. We are not only offering OEM products, we also offering customization service. Our team of experts are always ready to help design and develop products, offer ideal solution as per your requirement.
Quality is the key assurance to Proudtek's success. To maintain high quality and cost effective level, we have continuously adopted advanced automatic production lines, and hired expert engineers and experienced workers. Our production procedures are under serious quality control from raw material to finished products. All our products must be tested both by machines and labors for function and appearance before delivery to customers.
Located in Shenzhen, close to Hongkong, one of the most important logistics hub in the world, Proudtek is with great convenience in shipping schedule and ensure rapid delivery to global countries. It mostly takes 3-4 days to Middle East, European and Northern American countries, 5-6working days to Southern American and African countries. Proudtek deeply understand what kind of shipping method is suitable for our customer as per their schedule and budget requirement, and offer customer trouble free solution.
Proudtek is cooperating with world renowned semiconductor suppliers, including NXP, EM, TI, ST, Impinj, ATMEL, INSIDE, JEWEL, Fudan Microelectronics, and Huahong Group. The solid cooperation base with chip manufactures enable us to offer customer wide choice and stable quality of chips.
Poudtek outstanding services:
1. Quick response. Reply within 6hours within working days, 12hours within closing days
2. Free samples. Free samples are available to global countries free of charge for testing
3. Fast delivery. 3-5working days delivery time for most countries based on courier service
4. Customization. Whatever size, appearance, color, chip, we can design and develop unique transponder for you
5. Professional & effective communication.
