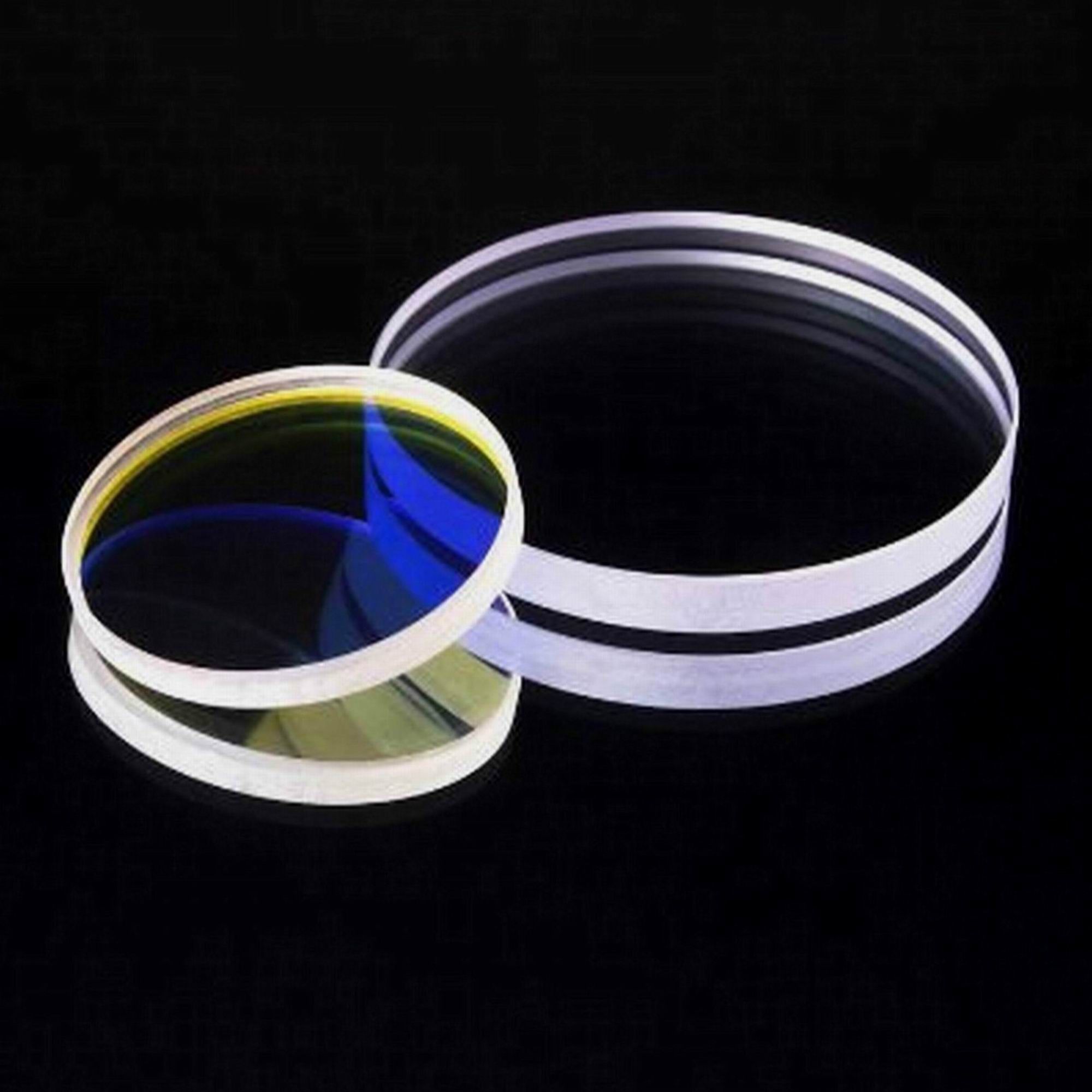

Note for sapphire window:
Sapphire windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres and they are widely used in electro-optics, aerospace, bio-medical areas.
(1) Custom-made sapphire windows at any size from Φ 1.0mm to Φ 250mm clear aperture are available.
Besides round, sapphire windows at shape of recangular, wedge, step windows or other shapes are available.
(2) Thickness from 1.0mm to 75.0 mm is available upon request.
(3) 100% clear aperture is available upon request.
(4) Sharp edge is available upon request.
(5) Sapphire windows with Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating are available.
| Attribute | Specification |
| Diameter (Φ mm) | 1.0~250.00 |
| Thickness (mm) | ≥ 0.1 |
| Diameter Tolerance (mm) | ± 0.05 |
| Thickness Tolerance (mm) | ± 0.02 |
| Clear Aperture | > 95% |
| Parallelism | 10 sec. |
| Surface Quality | 80/50~10/5 |
| Flatness (per 25mm@633nm ) | 1λ ~λ /4@any 25.4mm area |
| Bevel (face width x 45° ) | < 0.25mm |
