| Price: | US $ 3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Product Overview:
1. DW9060 laser engraving machine used for engraving perfect pictures, portrait on the surface of all kinds and all shapes of materials, make all kinds of craftworks , also make diversified marks and brands.
2.This is a machine with good performance and reasonable price.

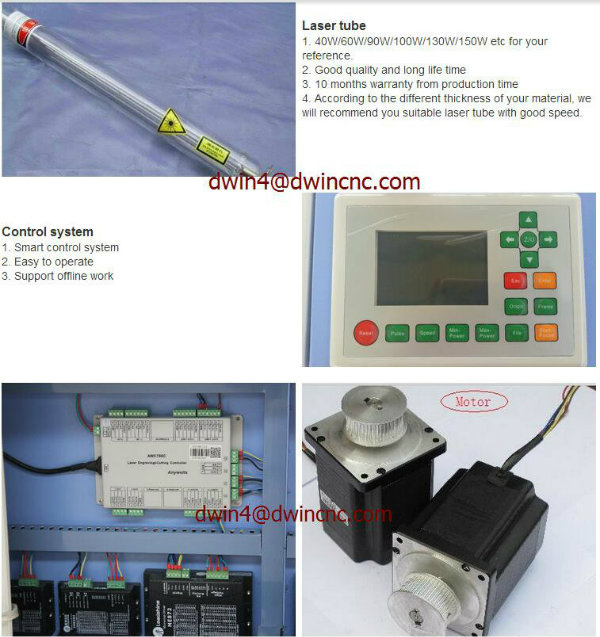

3.The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth
4.The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
5.We can supply different color shapes for your need.
Machine Parameter
| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 90cm*60cm / 35in*24in (L*W) |
| 3 | Laser power | 40W/60W/80W |
4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Clients pictures
| Prod Model: | DW960 |
|---|---|
| Laser Power: | 60W/80W/100W/130W/150W for Your Reference |
| Machine Application: | Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: | 24 Months |
| Cutting Thickness: | 0-30mm |
| Graphic Format Supported: | Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: | Redcam |
| Cutting Speed: | 1-32000mm/Min |
| Working Temperature: | 0-45 Degree |
| Working Humidity: | 5-95% (Non-Condensed Water) |
| Graphic File Format Supported: | Plt, CDR, Ai, Dwg, Dxf, Dst, BMP, JPEG, Tiff, GIF |
