SMD 5060 60 LEDs/M IP65 High Power Flexible Strip


Orient Lighting SMD 5060 RGB Flexible strip is an ideal high brightness RGB solution. The 5060 SMD LEDs not only provide brilliant brightness but also fabulous color changing properties. Red, green and blue in one 5060 LED chip allows for display of millions of different colors. With our preprogrammed RF remote RGB Controller; you will be able to reach almost any color you desire. For chasing effects, please see our Iris Artificial Intelligence Strip.
Designed for interior and exterior use such as night clubs, party rooms, shopping malls, theaters etc., they are able to bend and twist in just about any direction imaginable.
Each Ribbon LED strip comes equipped with an adhesive backing or mounting clip and can be fixed anywhere.
Non-Waterproof
Non-waterproof version can be cut every 3LEDs at 5cm length (12VDC Version) -a clearly-marked line shows exactly where to cut. Pairs of indicated solder spots provide great contacts for attaching wires -each one is indicated with a + sign for positive, and -for negative.

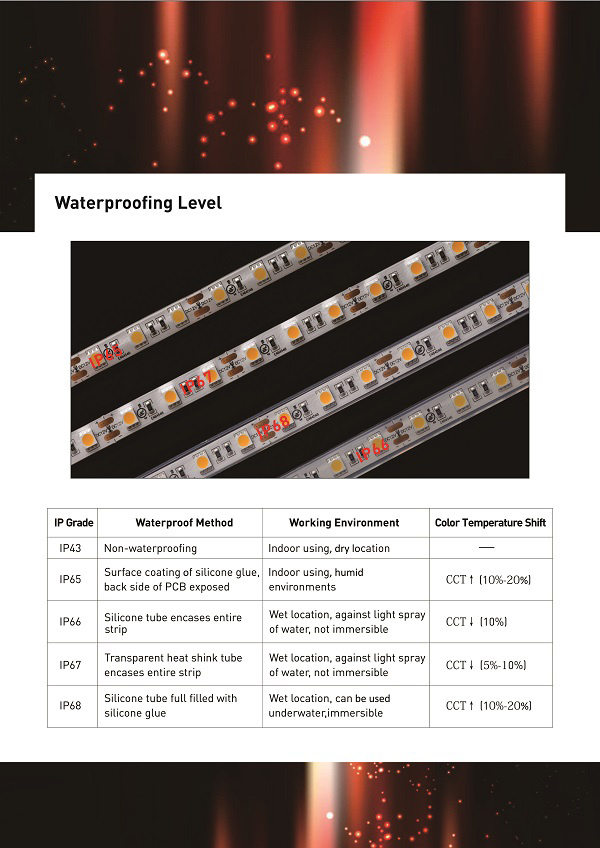

Military Standard Waterproofing
Orient Lighting adopts a unique waterproofing technique that offers double layer protection guaranteeing maximum waterproof (IP 68) levels. Unlike cheaper waterproof strips, the Orient Lighting waterproof strips are protected with SGS approved military standard material which ensures crystal clarity and a reduced haze level while still offering the best protection available. They are widely used in outdoor sign making, underwater decoration and accent lighting, although the applications are limitless given the durability of the product.
Custom lengths are available upon request.
All Iris products can work with our RGB controller to achieve more effects.

All Orient Lighting Strips are carefully designed to achieve the right balance of current, brightness and heat dissipation. This helps to ensure our strips maintain their brightness for much longer than the average strip.

Product Description

Non-waterproofing 5060 SMD Flexible Strip
60 LEDs/M
12/24VDC
Max 14.4W/M
Beam Angel 120°
1x20cm 20AWG 4pins Wires out
200MP 3M tape,  Bronze/White PCB
960-1000 Lumin/M at White
10mm Width
5 Meters/Roll
IP43
RGB color



Applications

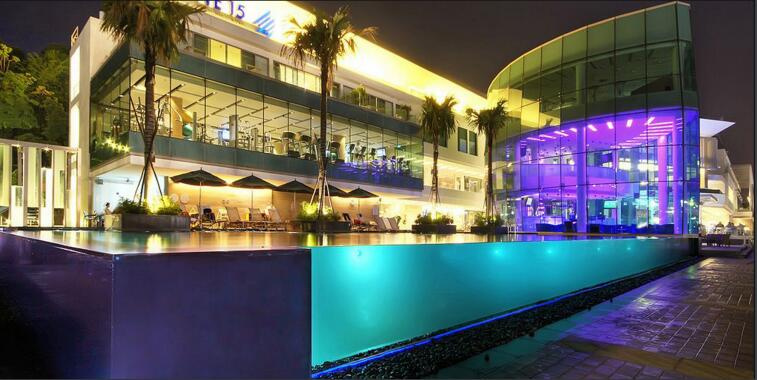

1) Architectural decorative lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Emergency exit path lighting
11) Cove lighting
12) Edge-lit acrylic panel lighting

Please note:
Delivery Time : 7 working days
Custom Lengths and connection type are available

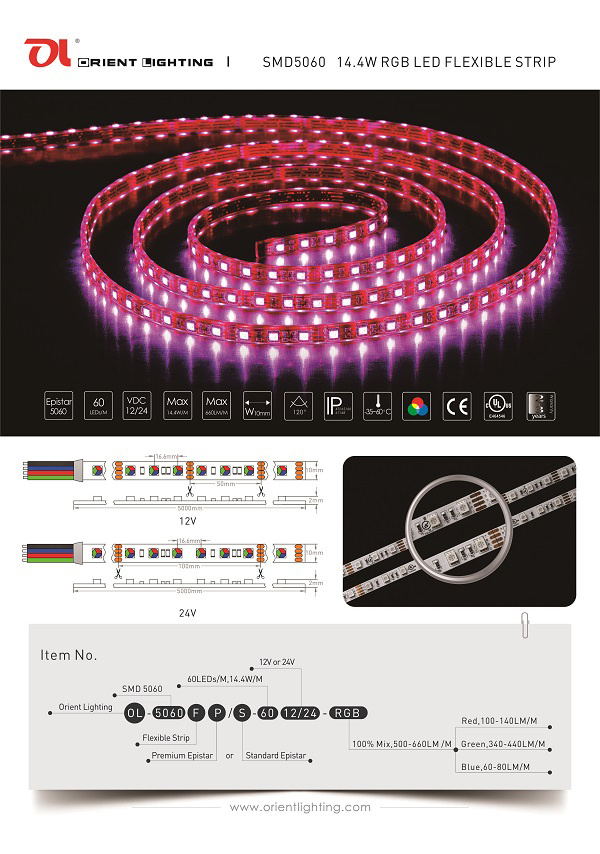

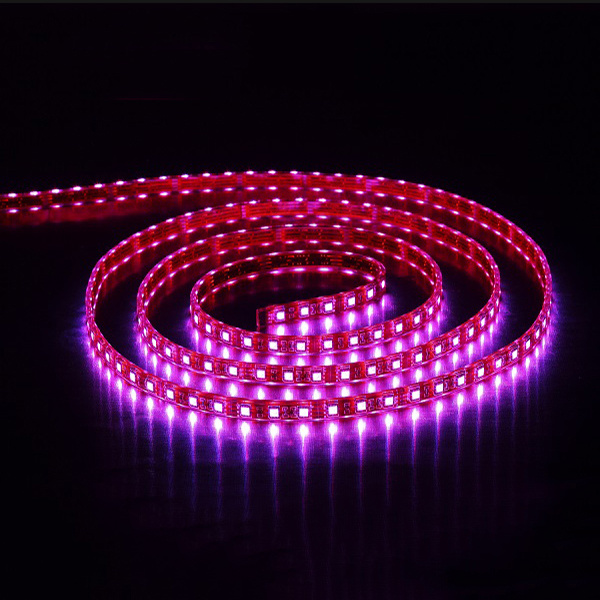

Product picture:




Item No.	Details
OL-5060FP-6012--RGB	Non-waterproofing 5060 SMD Flexible Strip, 60 LEDs/M, 12/24VDC, Max 14.4W/M, 120°,1x20cm 20AWG 4pins Wires out, 200MP 3M tape,  Bronze/White PCB, 960-1000 Lumin/M at White, 10mm Width, 5 Meters/Roll, IP43, RGB color.
