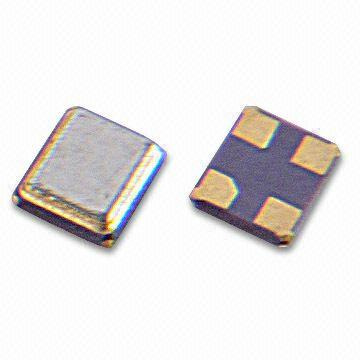

4 Pad SMD3225 Quartz Crystal Oscillator
Features :
3225 size, 1.0mm high, ultra small SMD seam sealed clock oscillator unit.
High precision characteristic covering up to wide frequency range : 1MHz ~125MHz
Supply voltage: 1.8V~5.0V. 3-state function.
Automatic mounting and reflow soldering.
Power consumption.
High stability, low jitter, low
RoHS Compliant / Pb-Free
Application :
Peripherals, Bluetooth, DSC, PC, Mobile phone, PDA, DVC, Telecommunications, NFC, etc.
General Specification :
Frequency Range : 1.000-125.000MHz
Oscillation Mode : Fundamental / 3rd Overtone
Frequency stability : ±20ppm, ±25ppm, ±30ppm, ±50ppm
Output Type : CMOS
Output Load : 15pF, or specify
Supply Voltage : 1.8V, 2.5V, 2.8V , 3.3V , 5.0V
Operating temperture: -10C--+60C , -20C--+70C , -30C--+80C , -40C--+85C
Voltage Vol (Max.) / Voh (Min.) : 0.1VDD / 0.9VDD
Rise(Tr) / Fall(Tf) Time : 8ns Max.
Current Consumption : See below
Symmetry : 40~60%
Start-up Time : 5ms Max.
Phase Jitter (12KHz~20MHz) : 1ps Max
Aging: <=3ppm/year
RoHS compliant , Pb free
Current Consumption :| Frequency(MHz) | Supply Voltage (V) | Current Consumption(mA) |
| 1 - 75 / 75 -125 | 1.8 | 5 Max / 15 Max |
| 1 - 75 / 75 -125 | 2.5/2.8/3.3 | 10 Max / 20 Max |
| 1 - 75 / 75 -125 | 5.0 | 20 Max / NA |

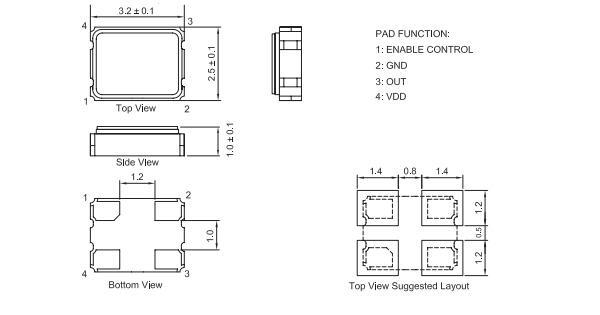

Dimensions:
