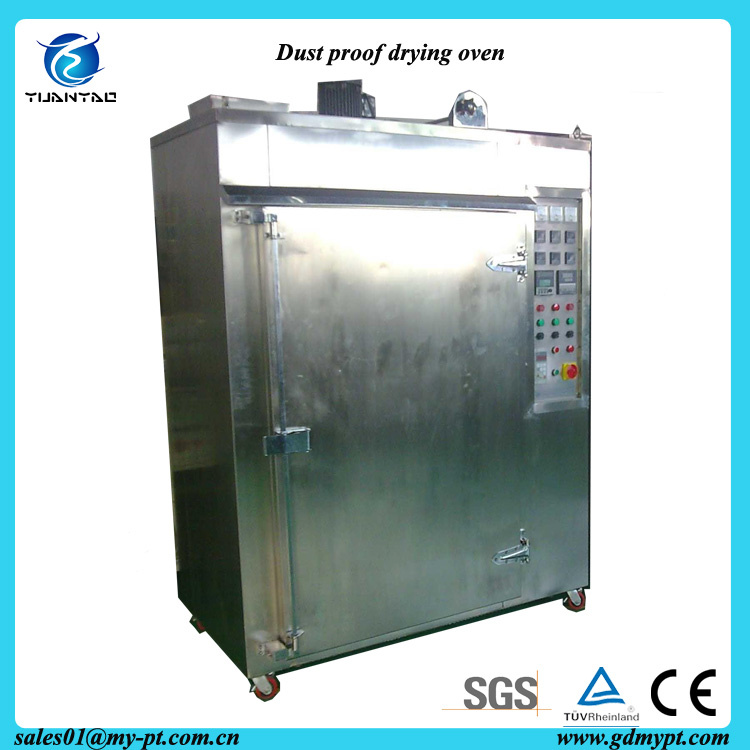

Stainless Steel Class 1000 Heating Endurance Test Unit
Introduction:
Stainless Steel Class 1000 Heating Endurance Test Unit provides clean high temperature environment for the test samples. Air closed cycle, high efficiency air filter(100 level) for several times, makes indoor oven work in clean condition. Stainless steel structure, temperature is automatically controlled by temperature controller with timing device. It is widely applied to electronic liquid crystal display, LCD, CMOS, IS, medicine, laboratory and other production and scientific research departments, and it is also applied to non-volatile and non flammable explosive drying, heat treatment, aging and other high temperature test.
Feature:
1 Microcomputer electronic digital control, precision&reliability.
2 High temperature endurance&non-aging.
3 SUS#304 stainless steel inner chamber and excellent argon arc welding to prevent dust coming in
4 Forced circulation air, the temperature rise fast, even distribution.
5 PID control, double overheating protection, safety and reliability.
6 Two groups of moving plates can be adjusted height.
7 High efficiency filter and imported differential gauge, class 100/1000.
8 Best after sales service: One year free parts maintenance.
9 Meet international test standards.
10 Customization is available & welcomed.
Technical parameters: See the label.
Except Stainless Steel Class 1000 Heating Endurance Test Unit, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
| Specification |
| MODEL | YPO-072 | YPO-270 | YPO-480 | YOP-600 | YPO-720 |
| Internal Sim.WHD(mm) | 400×450×400 | 600×900×500 | 800×1000×600 | 1000×1000×600 | 1200×1000×600 |
| External Dim.W×H×D(mm) | 750×1200×550 | 1150×1650×740 | 1300×1700×840 | 1500×1750×840 | 1850×1750×840 |
| Temp.Range | Room Temp.+10ºC---+200ºC(300ºC) |
| Ferformance | Temp.&Humi,Constancy | ±0.3ºC |
| Temp.&Humi,Constancy | ±0.1ºC AT 200ºC;±1.5% AT 300ºC |
| Indication Resolution | 0.1ºC |
| Heat-up Time( min.) | Approx.30min. |
| Material | Filters | HEPA Filters |
| Exterior and Interior | Iron Sheet+Baked Enamel; SUS#304 stainless steel piate |
| Insulation | Fiberglass Wool |
| SYSTEMS | Cirulation | Circle Fan |
| Heating | Chrome Steel Strip Wire Heater |
| Controller | Electric Digital Control+S.S.R. |
| door | Single-Wing | Double-Wing |
| Other Components | Environmental Control Indicator Lights, |
| Experiment Separation Shelves(2 pcs). |
| Sevey Devices | Overheating Prevention Circuit breaker, |
| Control System,Breakdown Indicator Light. |
| Power Source[K.W.] | AC 1Ψ 220V ; 3Ψ 380V 60/50Hz |
| Customization of inner chamber size, temperature range, etc. |
