Product Specifications
| Prod Model: |
SUNY-1480 |
| Working Area: |
1400*800mm |
| Laser Power: |
60W/80W/100W/130W/150W |
| Laser Tube Lifespan: |
10000hours |
| Machine Size: |
1950*1280*1150mm |
| Machine Weight: |
300kg |
| Color: |
Any |
| Certificate: |
Ce FDA |
| Speed: |
800mm/S |
| Lead Time: |
5 Working Days |
Product Description
Strong Power 130W Laser Cutting Machine with Ce FDASpecifications:| Control system: | DSP control system |
| Laser type: | Sealed CO2 glass laser tube |
| Working area: | 1400*800mm(55.12*31.50inch) |
| Work platform: | Honeycomb platform |
| Laser power: | 60w/80w/100w/130w/150w |
| Pass-thru doors: | Allow to cut extremely long materials(max thickness 40mm) |
| Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
| Memory: | 64Mb Buffer Memory |
| Driver system: | Stepper motor |
| Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
| Laser Tube life hours: | 10000 Hours |
| Repeating precision: | ±0.05mm |
| Moving system: | CNC controlling units |
| Cooling mode: | Water-cooling and protection system |
| Max speed: | 600mm/s for engraving, 300mm/s for cutting |
| Working voltage: | AC110/220±10% 50/60Hz |
| Whole power: | <1250W |
| Operating temperature: | 0-45°C(32° - 113° F) |
| Operating humidity: | 5%-95% |
| Controlling software: | Original sunylaser software |
| Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,
JPC,PGX,RAS,PNM,SKA,RAW etc |
| Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, photoshop etc |
| Resolution: | 4000DPI |
| Machine dimension: | 1950*1280*1150mm |
| Packing dimension: | 2050*1400*1300mm |
| Net weight: | 300kg |
| Gross weight: | 370kg |
| Packing: | Plywood case |
Standard accessories:1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Water pump/Industrial chiller(cool the lase tube)
4) 1×Water protection(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool box

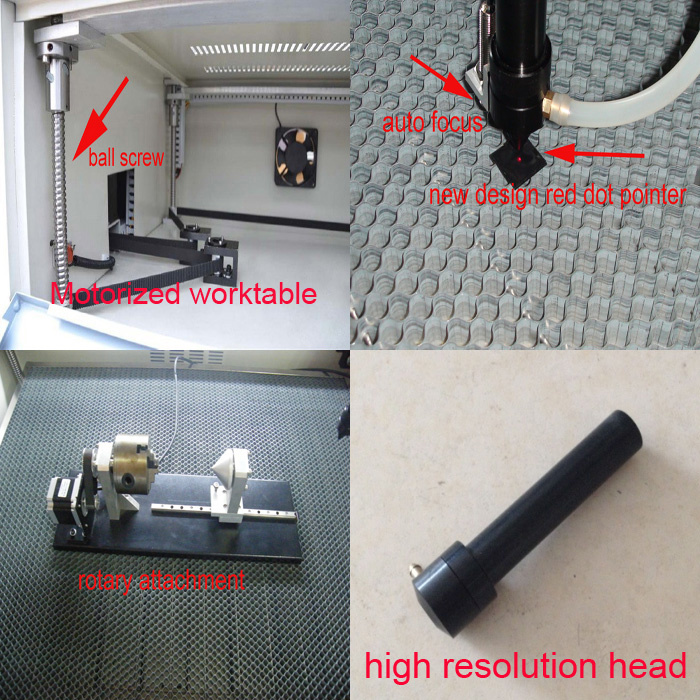

Optional accessories:1) Motorized up and down worktable(used to engrave thick materials).
2) High resolution(for engraving extremely high quality photos, even 3D photos).
3) Rotary (for engraving round items).
4) Auto focus(help to get the best focus distance).
5) New red dot design(make the laser beam visible).
6) High pressure air compressure set(used to cut thick materials).
Shipping:1) We will send the machine in 5 working days to your named seaport or airport.
2) We will arrange telex release for you or send original BL to you for customs clearance.
3) For shipping purpose, please tell us your phone number and detailed contact information after you confirm the order.
Payment terms:1) We accept LC TT and Paypal etc, if you want to use other ways, please advise us.
2) We will start to prepare your order after you make the payment.
After-sales Services:1) If you meet any problem or have any question about the machine and software, please feel free to contact us, we will help you to solve the problems as soon as possible.
Warranty:1) The warranty of the whole machine is one year, the warranty of laser tube, mirror and lens is six months.
2) Laser tube, lens and mirror, in six months we will send you free replacement.
3) Other parts, in one years we will send you free replacement.
4) Mirror and lens, we will send you extra one lens and two mirrors for free with machine.
5) Beyond the date of warranty, we will charge you the replacements.
6) The warranty is dated from the date you received the machine.

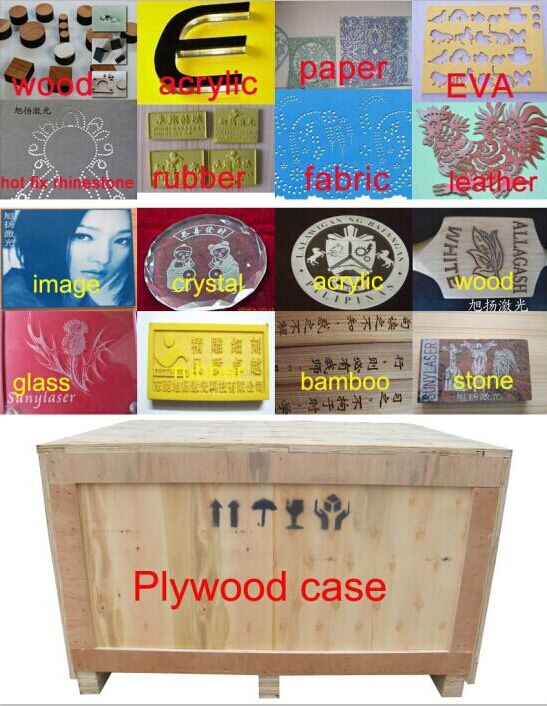

Workable Materials: Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal,Bowler, Bamboo, Marble, Granite, Tile, Delrin, Doublecolor board, Glass, Painted metals, Anodized aluminum, EVA, etc.
| | Engrave/Etch/Mark | Cut |
| Acrylic | √ | √ |
| Delrin | √ | √ |
| Cloth | √ | √ |
| Leather | √ | √ |
| Wood | √ | √ |
| Mat Board | √ | √ |
| Melamine | √ | √ |
| Paper | √ | √ |
| Mylar | √ | √ |
| Pressboard | √ | √ |
| Rubber | √ | √ |
| Wood Veneer | √ | √ |
| Fiberglass | √ | √ |
| Plastic | √ | √ |
| Cork | √ | √ |
| Corian | √ | √ |
| Twill | √ | √ |
| Anodized Aluminum | √ | |
| Painted Metals | √ | |
| Tile | √ | |
| Glass | √ | |
| Coated Metals | √ | |
| Ceramics | √ | |
| Marble | √ | |
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metal | * | |
