Switchable Laminated Glass

Switchable Laminated Glass
Price: US $ 22-60/Square Meter
Min Order: 500/Square Meter
Pay Type: L/C,T/T
Product Description

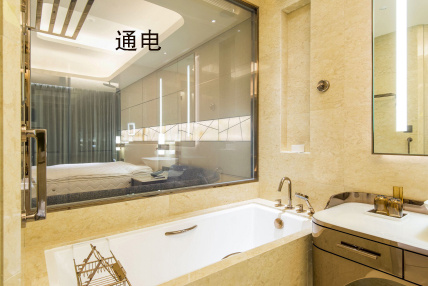

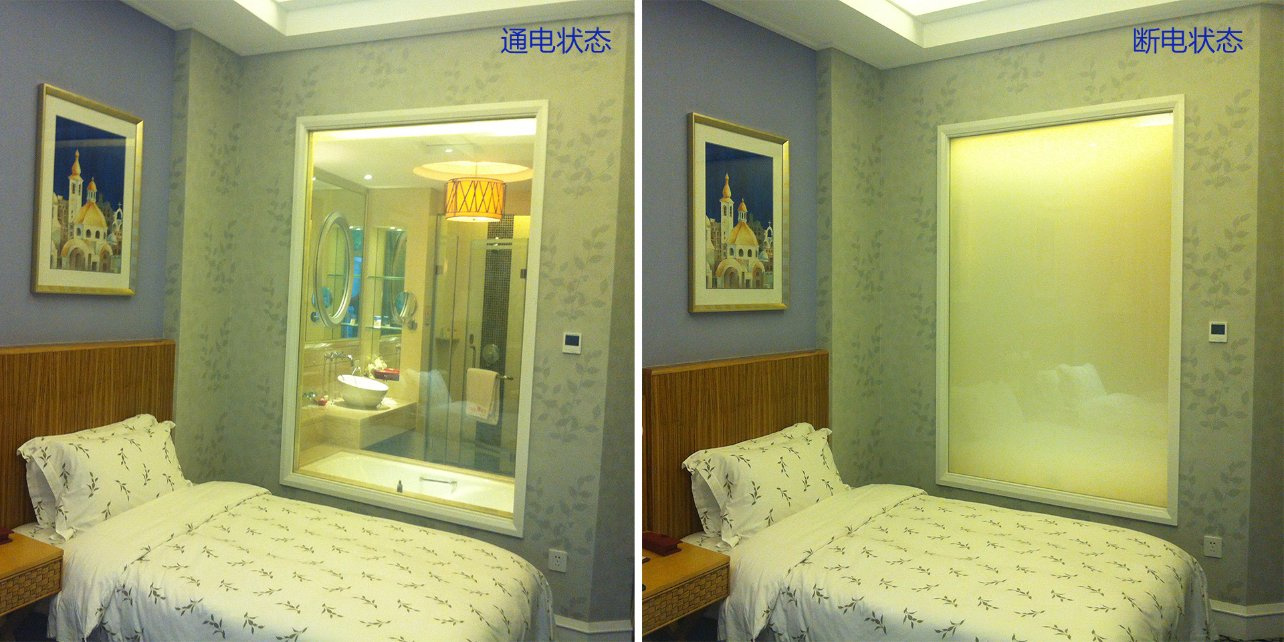

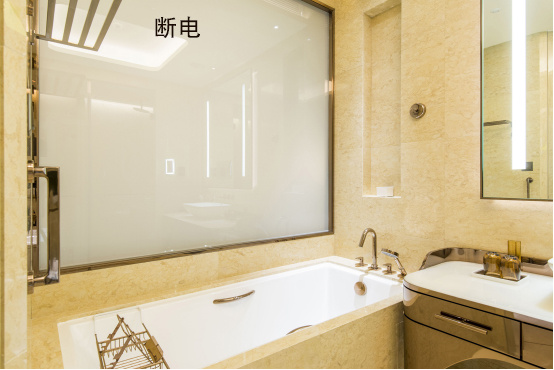

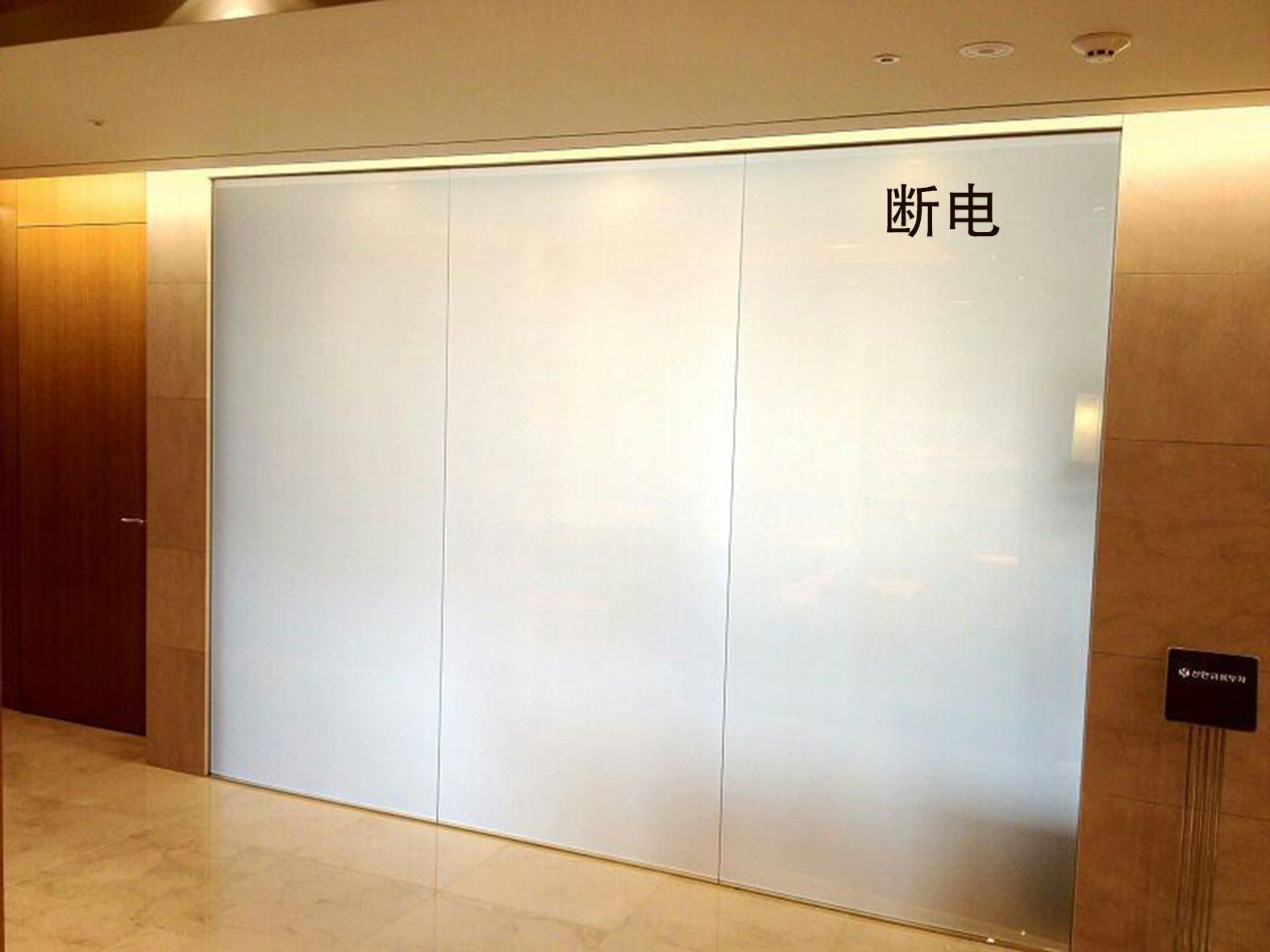

The dimmer glass is a new type of special photoelectric glass product which combines the liquid crystal film into two layers of glass and is formed by the combination of high temperature and high pressure. The user controls the transparency and opacity of the glass by controlling the flow of the current. Not only it

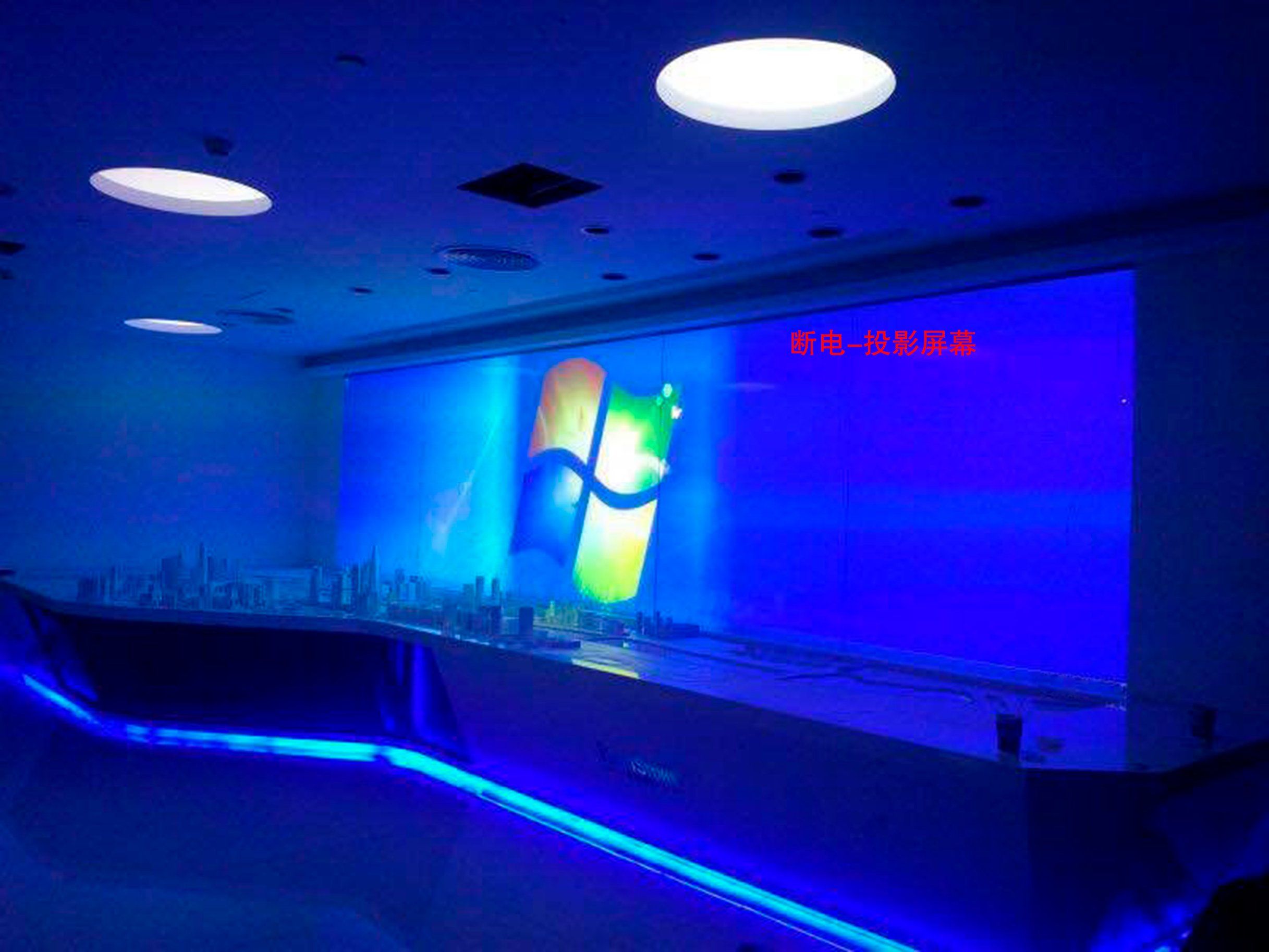

has all the characteristics of safety glass, but also glass itself has control of transparent glass or not privacy protection function. Due to the characteristics of the liquid crystal film sandwich, dimming glass can also be used as a projection screen, instead of ordinary curtain to get high-definition image in a glass
FEATURE:
Thickness of glass: 10mm-19mm(5+5-19+19)
Sandwich thickness:1.5mm
Working temperature : minus 10 degree to 50 degree
Working voltage:24VAC, 48VAC or 65VAC (Higher than 65VAC is not recommended for non-safe voltage.)
Light transmittance: about 75%
Privacy distance: Shielding any image from 3cm on the other side of the glass.
Visual angle: about 120 degree
Average of power consumption : 5 Wh/sqm.
Ordinary life: over 10 years

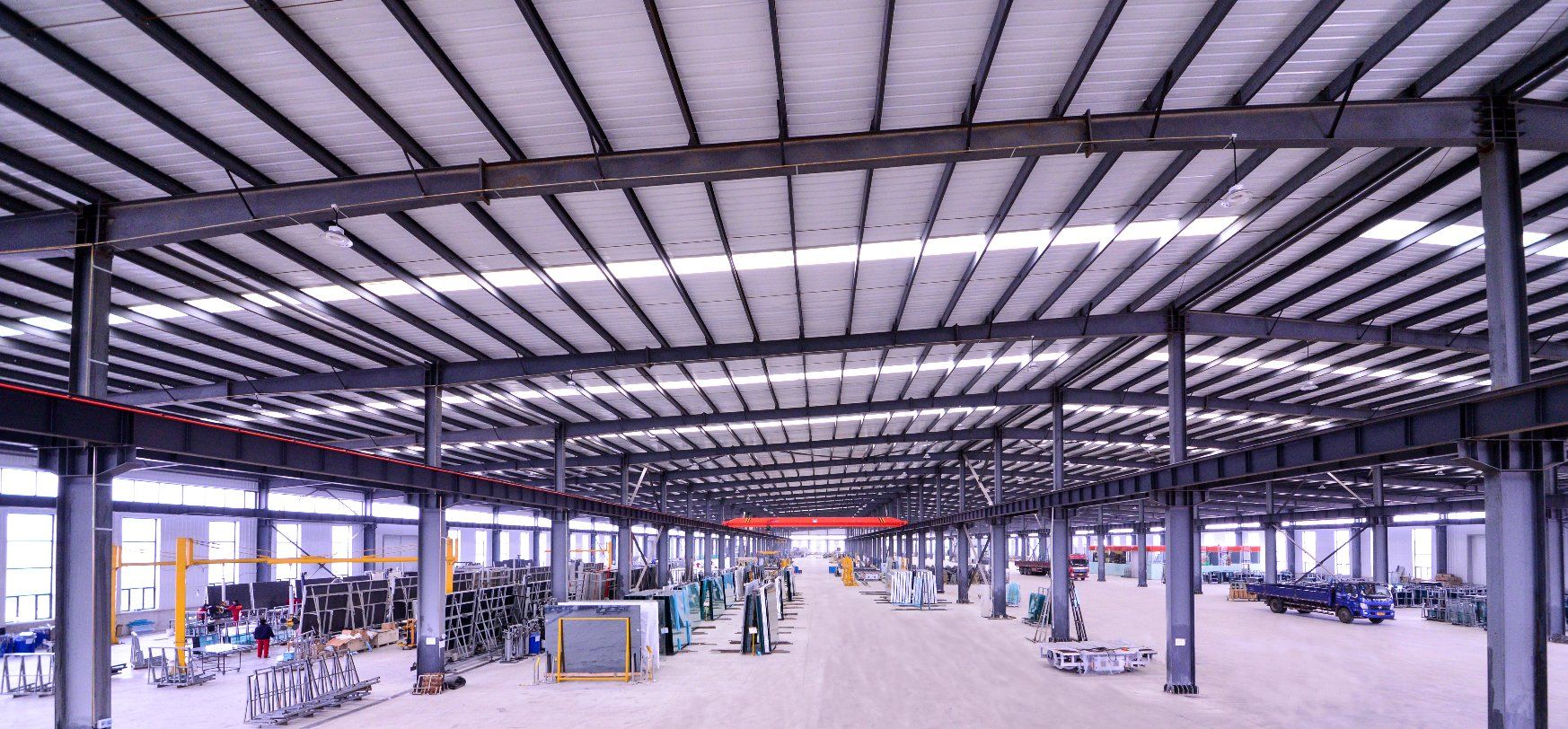

Our Production Machinery:





















Prod Model: T6
Edge: Could Be Customized
Printing Color: Could Be Customized
Printing Pattern: Could Be Customized
Cut Shape: Customized
Certificate: CCC
Raw Material: Float Glass, Tempered Glass
Type: Float Glass
Shape: Flat
Customized: Customized
Usage: Window
Structure: Laminated
Pattern Style: Customized
Color Type: Customized
Color: Customized
Yingkou Huaqiang Special Energy Efficient Glass Co., Ltd. Was founded in February 1, 2013, By the established in 2008, yingkou city expansion and become strong glass Co., Ltd. is one of the most powerful architectural glass deep-processing enterprises in the Northeast zone, and a production service company professionally manufacturing the tempered glass, laminated glass, hollow glass, LOW-E hollow glass and other products. The company is located in No. 1, East of Xinlian Street, Coastal Industrial Base, the scenic Liaoning (Yingkou).

The products produced by our company cover all building energy conservation and environnment protection glasses, the main equipments are completely from different famous glass deep-processing equipment manufacturers in the world, and we have established a long-term strategic alliance with the CSG, Weihai Blue Star, Xinyi Glass. Huaqiang Glass has established the strategic cooperative partnership with the well-known real estate developers in the domestic, the projects mainly are Hengda City in Shenyang, Yingkou Hengda Oasis, Anshan Vanke, Panjin Jiazhaoye, Shenyang National Games Village, Bayuquan Poly Theater, etc. With its rich experience in glass deep-processing, superior product quality and honest, flexible marketing methods, Huaqiang Glass has dedicated to providing the tailor-made solutions in glass processing and comprehensive, full processing, expert-level services for all friends from all social circles.

Yingkou Qingqiang special Energy Efficient Glass Co., Ltd. Was established in April 17, 2008, is one of the most powerful architectural glass deep-processing enterprises in the Northeast zone, and a production service company professionally manufacturing the tempered glass, laminated glass, hollow glass, LOW-E hollow glass and other products. The company is located in SME Park, Xianrendao Energy Chemical Zone, Gaizhou, the scenic Yingkou, Liaoning.

The products produced by our company cover all building energy conservation and environnment protection glasses, the main equipments are completely from different famous glass deep-processing equipment manufacturers in the world, and we have established a long-term strategic alliance with the CSG, Weihai Blue Star, Xinyi Glass. Qingqiang Glass has established the strategic cooperative partnership with the well-known real estate developers in the domestic, the projects mainly are Hengda City in Shenyang, Yingkou Hengda Oasis, Anshan Vanke, Panjin Jiazhaoye, Shenyang National Games Village, Bayuquan Poly Theater, etc. With its rich experience in glass deep-processing, superior product quality and honest, flexible marketing methods, Qingqiang Glass has dedicated to providing the tailor-made solutions in glass processing and comprehensive, full processing, expert-level services for all friends from all social circles.
