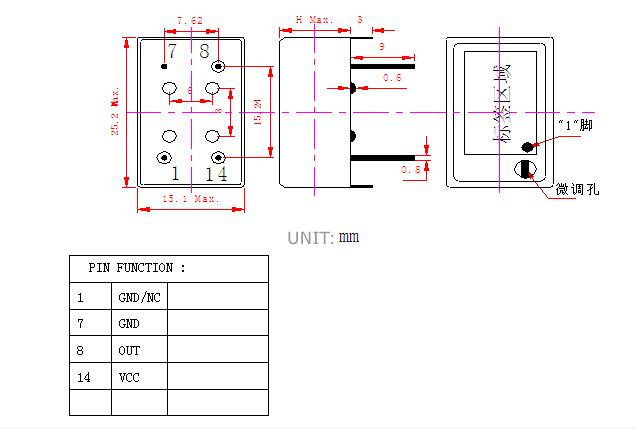

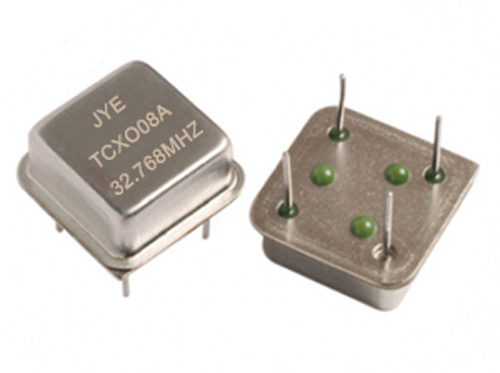

Temperature Compensated Crystal Oscillators with Size DIP08 and DIP14
| Price: |
US $ 1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Principal Parameters |
Parameter | JYT25A | | Parameter Value | | Frequency Range | 5 ~ 30 Mhz | | Frequency Accuracy | +/-0.5 PPM Max . ( Center Control Voltage ) | | Frequency Stability vs Temperature | +/- 1 PPM ~ +/- 5 PPM | | Aging | +/-1 PPM / year | | Output Type | SINE/Clipping Sine | | Supply Voltage | + 9.0 VDC, 12.0 VDC | | Frequency Stability vs Load | +/- 0.3PPM vs +/- 10% load change | | Frequency Stability vs Voltage |
+/- 0.3 PPM vs +/- 5 % voltage change | | Supply Current | 10 mA (Typical ) | | Adjustable Frequency Range |
+/-100PPM/V | | Control Voltage Range | 0 V +/-1 V | | Slope | Negative | | Linearity | +/- 10% | | Phase Noise (10Mhz ) | 1kHz , -130 dBc/ Hz | | Storage Temperature Range | -50 ~ +90 ºC |
|
| Application |
| Mobile Communication Equipments, 3G Communication , Wireless Base Station, Repeater , GPS , GSM,CDMA ,SDH/SONT, PDH , Instruments and meters with high precision ,Electricity Measure Equipments , Specialized Network, Military Radio Stations and Radar Equipments, Remote Sensing and Consumer Electronics Products Etc . |
| Feature |
| High Stability ,Low Aging ,Small Size , Wide Temperature Range |
JY Electronics Co., Ltd. is a professional manufacturer of frequency control device with many years in China. Our products are mainly used in RF radio circuit, microwave communication, component of Choose frequency GSM/CDMA and base station/direct increase station, 3G, 4G communication, GPS, satellite TV, satellite transmission, wireless security system, radar, electron resist, aviation, spaceflight, and other communications products, consumer electronics products etc.
Our main products are following:
1. Quartz Crystal Resonator and Oscillator ( VCXO, OCXO, TCXO )
2. SAW Resonator and Filter
3. Microwave Dielectric Ceramic Resonator
4. Microwave Dielectric Ceramic Filter and Duplexer
5. LC Filter and Duplexer
6. Cavity Filter
7. Dielectric Ceramic Patch Antenna ( Double-Frequency Antenna )
8. GPS Active Antenna (Module)
Our factory located Jiangsu Province, established in 1987, which has been awarded the authentication ISO9000: 2000, ISO14000, The specialty engaged in research and development, Production and sale of high performance RF & microwave ceramic components and quartz crystal frequency control devices.
We are in the characteristic of the high quality, and the rate of high performance and price, it can as per the clients' requests to custom-design new products and special products with different kinds of the working frequency.
The products are equipped with some important engineering, large-scale war industry unit and move off Asia, Europe, the Far East and North America etc. Obtained spacious consumer's consistent high praise by the high quality product and the high-grade service.
