Tempered Solar Glass Clear Patterned
| Price: |
US $ 5-50/Square Meter |
| Min Order: |
300/Square Meter |
| Pay Type: |
T/T |
Shandong Paneu Glass Co. Ltd. one of the most professional architectural/specility glass manufacturer in China, our products mainly include architectural glass, solar galss, greenhouse glass, borosilicate glass etc.Product IntroductionSolar glass consists of low-iron glass, solar cells, film, back glass, special metal wire and other components. It is the solar cell through the film sealed in a low-iron glass and a back glass in the middle. It is the most innovative High-tech glass products for construction.
Product Series1.Low iron float glass/ultra clear float glasUltra clear float glass is with low iron content, for 6 mm thickness, the visible light transmission can reach 91%+. Basing on brilliant characteristics, low iron glass is widely used everywhere now and usually called "King of the crystal". With higher physical, optical and mechanical features, low iron glass can be deeply processed like normal annealed glass. Because of excellent features, low iron glass has prosperous future market.Performance

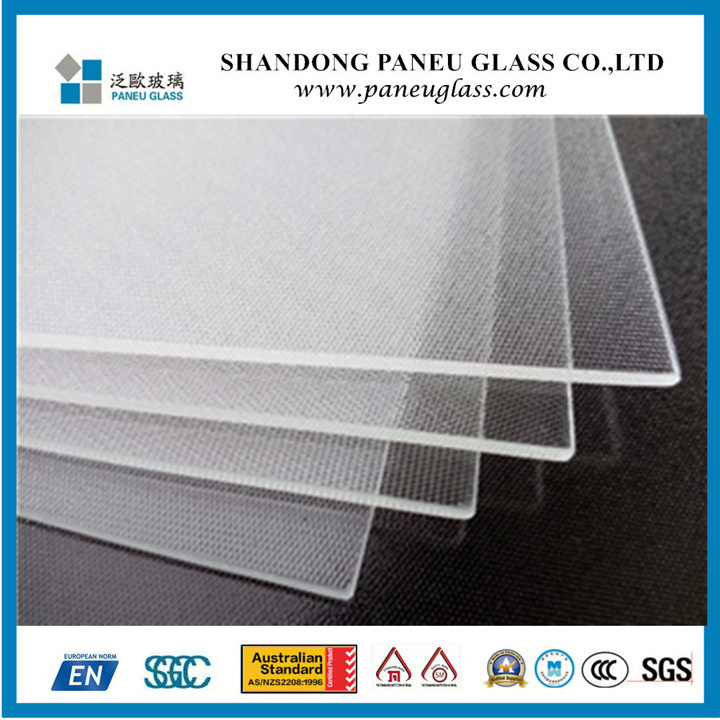

Characteristics: 1.With exclusive formula of materials, low iron glass with long duraility, and difficult to be stained.2.With lower iron content, more bright, and higher solar transmission.3.More workable to be processed, less tempering blowing mark and rainbow.2.Low iron rolled glass Low iron rolled glass is also called low iron pattern glass. The common technique of production for solar glass is Rolling Process.The process is using rollers to press special pyramid pattern on the bottom surface and special designed matt patterns on the upper surface of the low iron glass. This process reduces direct reflection and internal reflection.as well as improves the efficiency of solar energy. Solar glass is a very important component of the solar cell.Our AR solar glass can raise the photoelectric conversion efficiency by3%, and a yearly energy output by8%-10% Performance Data| Surface | S Clear SM/0.015/3.2
Diffusion/Prism | S Clear SM/M.015/3.2
Diffusion/ Diffusion |
| Surface hazy effect | High | High |
| Solar permeability(Tsol) | 91.34% | 91.63% |
| Sun permeability(Tvis) | 91.66% | 91.94% |
| Density(T/m³) | 2.51 | 2.51 |
| Heat conductivity(W/mºC) | 1.05 | 1.05 |
| Expansion Coefficient | 8.614*10-6/ºC | 8.614*10-6/ºC |
| Young Modulus(GPa) | 69 | 69 |
| Hardness(Moh's Scale) | 5.5-6.5 | 5.5-6.5 |
Mean Specific Heat(J/kgºC)
(25ºC~850ºC) | 1162 | 1162 |
Characteristics:1.High solar transmission2.The special rolled pattern diffuses the direct sunlight, and improves the Photovoltaic Module absorbing sunlight, finally increases efficiency of solar energy.3.TCO glass( on-line TCO &off-line TCO) TCO glass, namely transparent conducting oxide coated glass, is made by coating a transparent conducting oxide film (mainly including In, Sn, Zn and Cd oxide and composite multiple oxide film) uniformly on the surface of flat glass by a physical or chemical coating method. Typical Performance Data
| Size |
| Length | 1245+/-1mm |
| Width | 635+/-1mm |
| Thickness | 3.2+/-0.1mm |
| Diagonal different tolerance≤2mm |
| characteristics |
| Transmittance | >80% |
| Conductivity | <10Ω |
| Haze | 12-16 |
| Main defect | Quality request |
Bubbles | Length and Nos allowed |
| L | L | L |
| 0.3mm<=L<=0.5mm | 0.5mm<=1mm | L>mm |
| 3 | 2 | No |
| Impurity | 0.3mm<=L<=0.5mm | 0.5mm<=1mm | L>mm |
| 2 | 1 | No |
| Dots defec density< | Bubbles length>1.0mm,Impurity length>0.5mm or the distance between bubbles and impurity should be >300mm |
| Sctraches | Length, Width &Nos. Allowed |
| W:0.2mm L:40mm, max 2 Nos |
| Edge breakage | Depth 100-300um | Depth>300um | Crack |
Characteristics1.High spectral transmittance: Absorb and use more sunlight, improve transfer efficiency.2.Conductivity: The conductivity principle of TCO conductive film is mixing other trace elements into intrinsic semiconductor with weak conductivity to make the electrical conductivity of semiconductor generate significant change.3.Haze: To increase the capacity of semiconductor layer of thin-film cell in light absorption, PV TCO glass needs to improve the scattering power of transmission light, and the capacity is expressed by haze.
Certificate

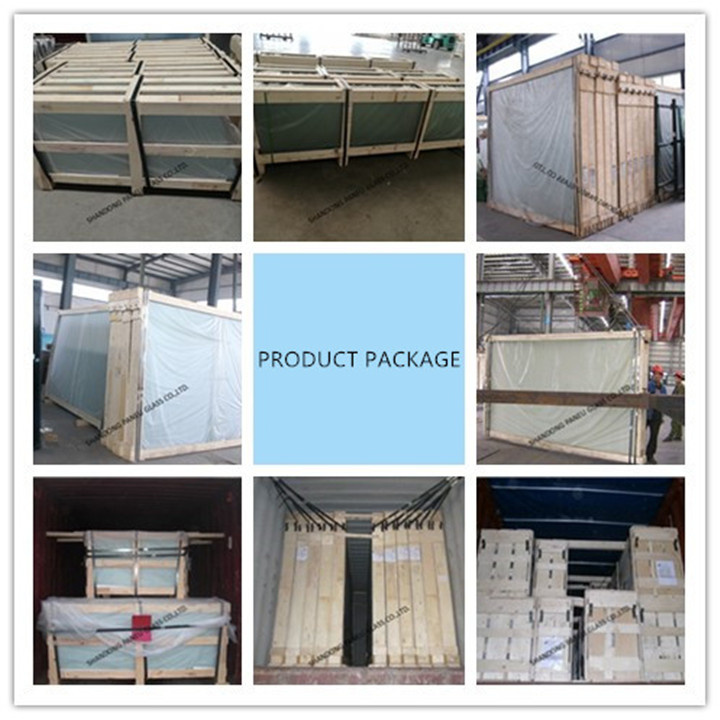

Packaging and Delivery1. Safe polywood crates 2. Strong support for crates in shipping containers3. Full and experienced containers lading method
Why choose PANEU GLASS?PANEU GLASS Advantages 1. 20years on glass manufacturing, wide range architectural glass production capacity, including 5tempering lines, 3laminating lines, 2cerimic friting produciton lines,4insulated glass production, 2 digital printing lines, including one Dit-Tech, 2. One-stop glass solution:from tempered glass, laminated glass, ceramic frit and digitl printing glass, Insulated glass, Solar glass, Greenhouse glass, decorative glass, borosillicate glass, and son on, we can meet any glass for your kinds of projects 3. Safety packaging for ocean and land transportation: we package the glass and load the containers with safe and strong packaging, to deliver our customer the glass in good condition. 4. Fast and quickly delivery: with large production capacity, and two production base, we can make the fast and quickly delivery within 30days after receipt the deposite.5. Professional production and sales team: we have excellent tecnique, production and export team, to produce top quality products, strict QC procedures, and professional sales and after-service with competitive prices. Our products are certified by European EN, US SGCC, Australia AS/NSZ, Israel SII standards etc..6. Powderful overseas sales channel: we have set up 3offices in Sweden, Israel, and Malaysia, and sold our products more 100countiryes and regions Paneu Glass, pursite of perfection! We will adhere to the concept of "Top Quality, Fast Delivery, Best Services", to create a better future with you!
Shandong Paneu Glass Co., Ltd., was established in 1998, head office located in Zibo city and factory in Tai'an City, at the root of the famous Mount Tai. After nearly 20 years of development, we have a world-leading set of processing equipment, industry-leading technical team and modern management concepts. We currently have 4 automatic Insulated Glass production lines, 5 Tempered Glass production lines, 3 automatic Laminated Glass production line, 2 lines of DIPTEC ink-jet printing. Our annual sales in 2016 is 130 million RMB, 70 percent is from exporting market.
We are specializing in architectural glass (curtain wall, window&doors, handrails, U glass, and decorative glass ), greenhouse glass, solar glass and borosilicate glass. All products are certified by European EN, US SGCC, Australia AS / NZS, Israel SII standards. We have many typical project cases around the world.
Product quality is the life, to win the trust of our customers, we always focus on the best quality and service after sales. After ten years more efforts, we have sold our products around the world more than 100 countries and regions, mainly to the European market. We have set up 3 offices which locates in Israel, Malaysia and Sweden.
Paneu Glass, the pursuit of perfection! We will consistently adhere to the quality first, the concept of win-win cooperation, development together with you, to create a better future.
