Test Machine Thermal Impact Machine

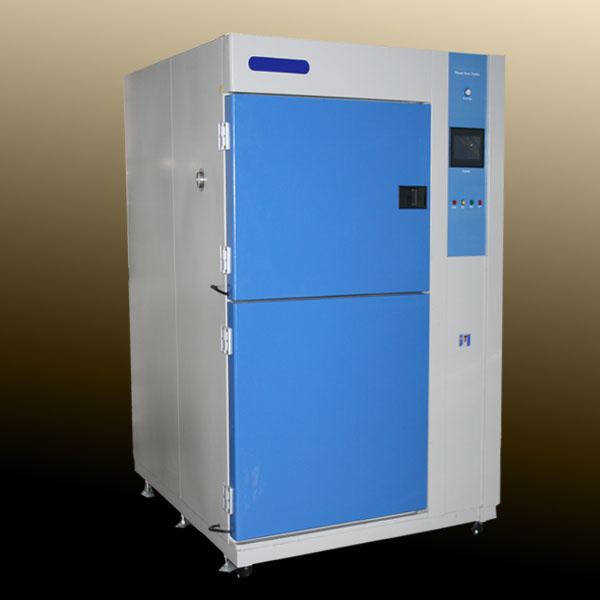

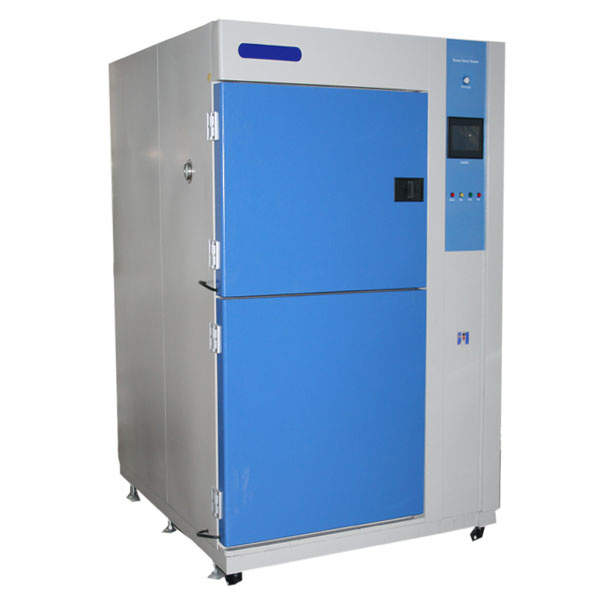

Thermal shock chamber

Application

To test the changes in physical of the electronic chip IC, PCB, semiconductor ceramic and polymer materials. And composite material and material structure's result which under continuous environment with high temperature or low temperature shock in short time; It means this product can test the material's chemical change or physics change by expansion and contraction within short time. It's application to metal, plastic, rubber, electronic etc.

Package and Delivery

Package: Wooden cases, meet the international standard.
Delivery time: In 15-20 working days after order confirmation.

Specification

1. Display Chiness/English
2. Controller: Digital indicators
3. Excellent performance and resonable price

Feature

1. Provide with RS-485 communication interface device, capable of controlling/editing/recording with the computer. Two sets of TIMER SIGNAL RELAY Use convenient.
2. High formula memory capacity can be set to 120 patterns. The maximum cycle's setting is 9999. The maximum setting time of each pattern is 9999Hrs 59 minutes.
3. The machine is divided into three sections: The high temperature chamber, the low temperature chamber, and testing chamber.
4. The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted.
5. All equipment is fully automatic, and all process are precisely controlled with P. L. C. 'S.
6. Thermal Shock Tester is divided into three sections: The high temperature chamber, the low temperature chamber and the testing chamber.

Except Thermal Shock test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Should any of items be of interest to you, please let me know.




Model			YTST-108		YTST-216		YTST-252
Test Area Dim. (mm) W× H× D			400× 600× 450		600× 600× 600		600× 700× 600
External Dim. (mm) W× H× D			1720× 1920× 1560		1700× 2250× 1820		1700× 2350× 1820
High Temp. Range			+80º C~+200º C
Low Temp. Range			-10º C~-40º C;         -10º C~60º C;           -10º C~-70º C
Test Temp. Range			+60º C~-150º C; -10º C~-40º C;           -10º C~55º C;           -10º C~-65º C
Performance	Temp. Constancy		± 2º C
	Temp. Recover Time		3  to 5min
	Heat-up Time	º C	150		150		150
		min	30		40		40
	Pull-down Time	º C	-40 -55 -65		-40 -55 -65		-40 -55 -65
		min	80  90  100		90  100 110		100  110  120
Material	Exterior		Stainless steel plate+Powder Coated
	Interior		SUS#304 stainless steel plate
	Insulation		PU & Fiberglass wool

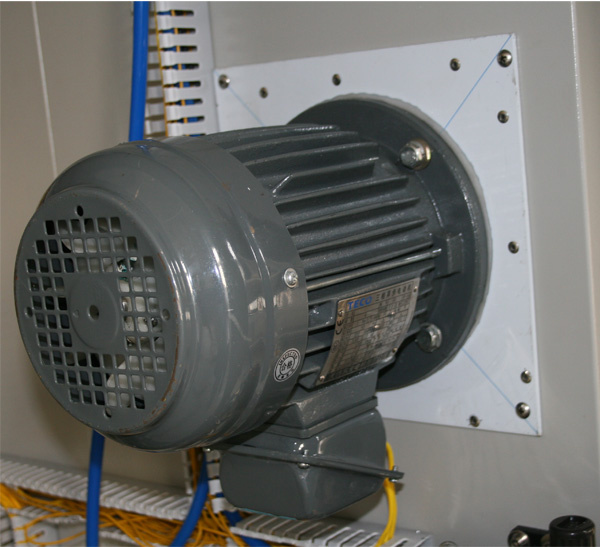

Systems	Circulation		siroco fan
	Heating		Chrome steel strip wire heater
	Cooling		Compressor+evaporator fins+air-cooling(or water-cooling)condenser
	Controller		CLCD-9800
Other Components			Control status indicator lights, experiment separation shelves(freely adjustable 2pcs)
Safety Devices			Overheating prevention circuit-breaker, compressor overload protection, control system overload prevention, breakdown idicator lihgt, high-low compressure protection swith.
Power Source(K. W. )			AC 3Ψ 380V 60/50Hz
			22  23  25		28  35  45		30  40  50
