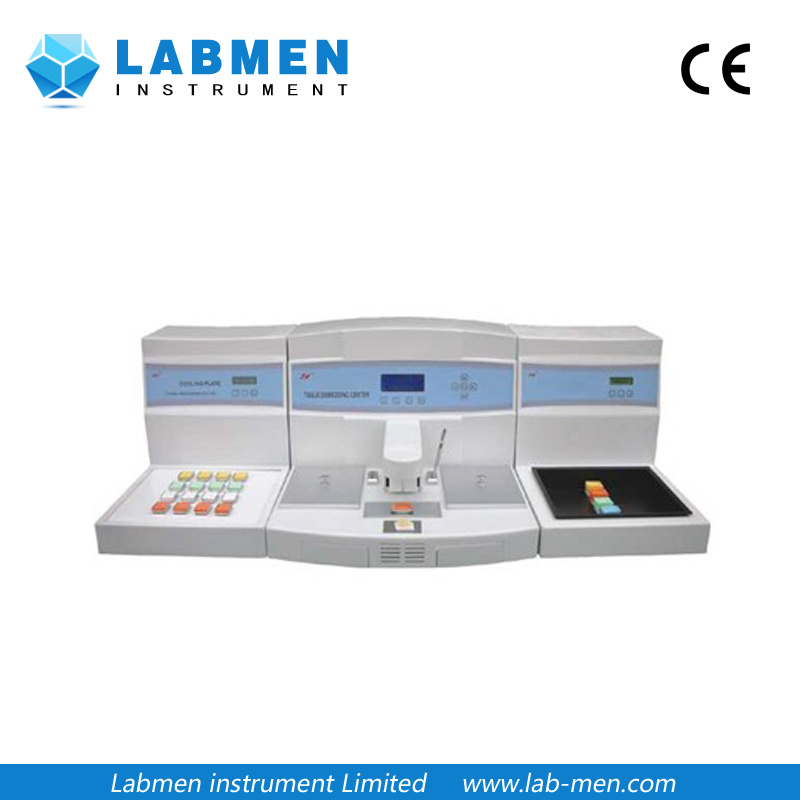

Tissue Freezing Embedding with Store Table

1.1  Description
Features:
1. Computer automatic program control that can preset any boot or shutdown time within a day or a week;
2. Using silicone rubber heating element, quick and uniform heating, energy-saving and reliable;
3. Using integrated module for temperature measurement , with high precision and reliable performance, liquid crystal display; icon display of working status;
4. Paraffin cylinders, paraffin mouth, left and right saving box and working table work independently, five temperature control channels and multi-temperature protection devices; safe, reliable and energy saving;
5. With memory and automatic recovery functions, automatically keep the preset temperature after running;
6. Split design, free combination of embedded center and freezing table;
7. Using new frequency-conversion compressor with freezing temperature adjustable;
8. The temperature of freezing table can be set as +50ºC~-35ºC;
9. Small cooling units can freeze embedded tissues;
10. Large capacity (5 liters) of melting paraffin cylinder to ensure the completion of embedded tissue at one time;
11. Low-voltage lighting system, safe and reliable, manual and foot-operated switches;
12. The heating of working table and storage units facilitate tissue embedding;
13. High precision of time showing of the clock, convenient timing;

1.2  Specification
Main Technical Parameters:
Adopted advanced heating theory
Volume of paraffin tank:5 liters
Range of temperature-control of force holder :ambient~99ºC
Range of temperature in paraffin tank :ambient~99ºC
Range of temperature in storing box: ambient~99ºC
Range of temperature at workstation: ambient~99ºC
Range of temperature of heating system: ambient~99ºC
Tolerance:±1%
Mode of wax-flow: automatic soft-touching manual switch ,foot switch
Time presetting: presetting the start time of any weekday during one week
Temperature of  cooling -plate: ambient ≤-20ºC,protection function of time delay
Dimension of cooling plate:330 x 322mm
Nominal Voltage:AC220V  50Hz     AC110V  60Hz
