Product Specifications
| Prod Model: |
IPC-B080-N2800-RT |
| Screen Size: |
8" |
| Screen Type: |
Resistance Screen |
| Operating System: |
Windows |
| Memory: |
2GB |
| Hard Disk Capacity: |
32G |
| CPU Core: |
Dual-Core |
| Webcam: |
Without Webcam |
| Built-in Bluetooth: |
Without Bluetooth |
| Built-in Microphone: |
Without Microphone |
| Card Reader: |
Without Card Reader |
| Fingerprint: |
Without Fingerprint |
| Network Mode: |
LAN |
| CPU Type: |
Intel Atom N2800 1.86GHz Dual-Core |
| Battery Capacity: |
DC 12V Power Input (Optional 9-36V Wide Voltage) |
| Rear Camera Pixel: |
None |
| Front Camera Pixel: |
None |
Product Description
TOESEE Brand Fanless All in One 8 Inch Touchscreen Industrial PC Tablet With High temperature resistance IPC-B080-N2800-RT
Product Introduction:
Using the onboard Intel Atom N2800 1.86GHz dual-core processor + Intel NM10 high-speed chipset high-performance, low power 3.5 "embedded fanless industrial motherboard;
8 inch 4: 3 positive screen, 1024 * 768 high score, well-known brand A regulation perfect LED liquid crystal display;
The machine is made of thin and easy portable design, so as to save the cabinet space more. It is made of CNC machine with durable, high strength, corrosion resistance, shock and vibration. It can be processed by CNC machine (optional NEMA4 / IP65 protection class) Anti - dust);
The use of industrial-grade resistive touch screen, stable performance, high accuracy and not afraid of dust, water vapor, oil, etc., to adapt to a variety of harsh environments (optional multi-point capacitive touch screen);
DC 12V 5A power input (optional 6-30V wide voltage input);
Interface, rich, free connection to external devices, 5 * COM (RS232), 4 * USB 2.0, 2 * LAN, 1 * VGA, 1 * HDMI;
Operating system: support MS series winXP, win 7, Win8 and Linux operating system.

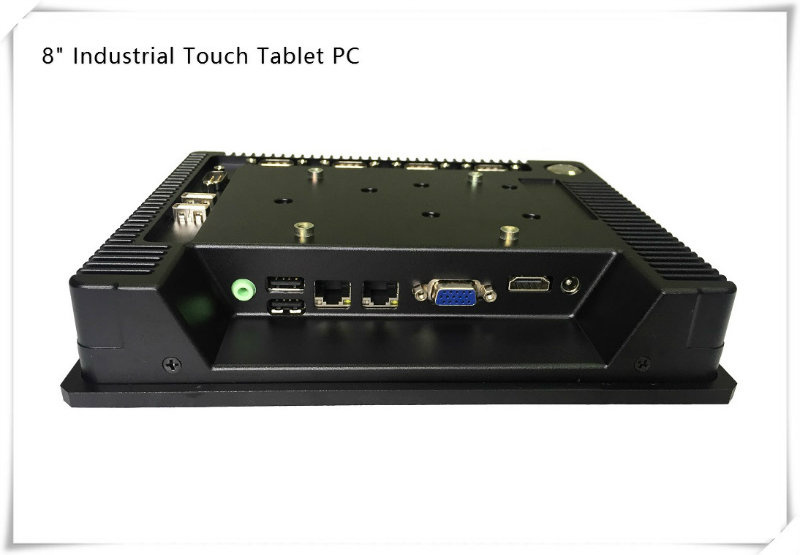

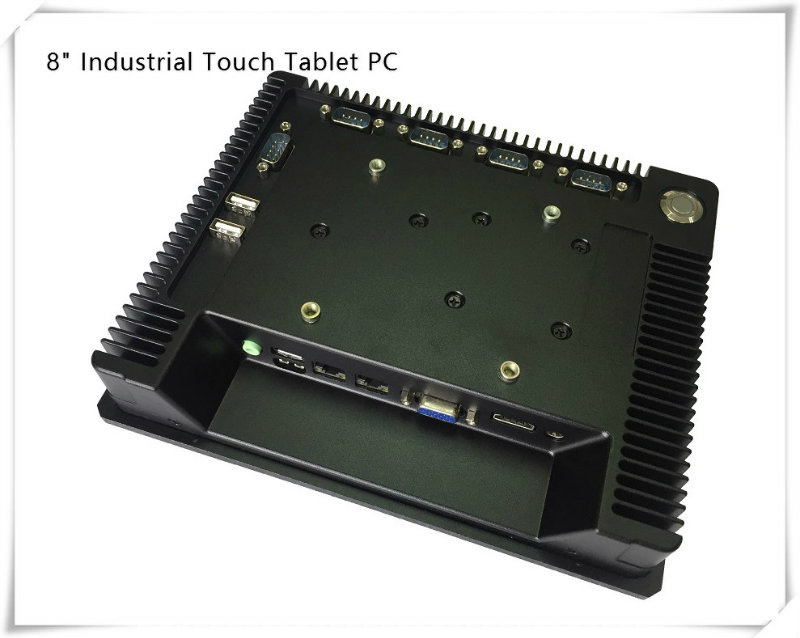

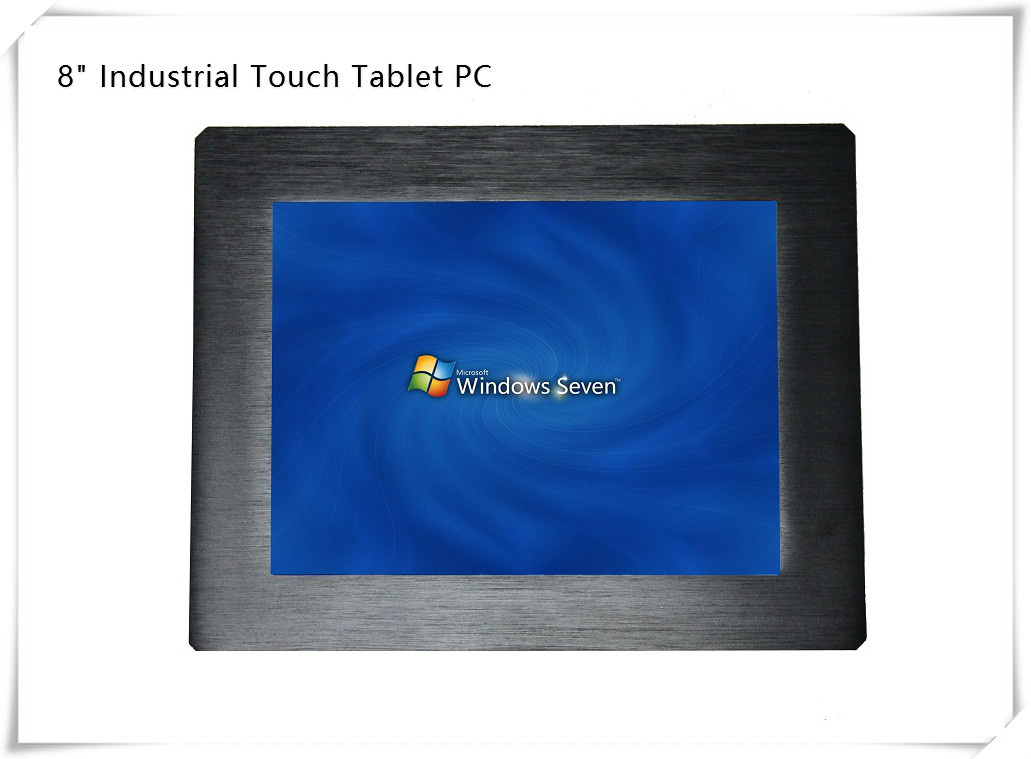

Product picture:
Parameters: | Host parameters | CPU processor | Intel Atom N2800 1.86GHz dual-core
(optional upgrade J1900 quad-core) |
| chipset | Intel NM10 Express Chipset |
| Video card | Intel® 3650 Graphics Core Graphics |
| RAM | DDR3 2GB 1066/1333 / 1600MHz (maximum support 4GB) |
| Hard disk | 32GB SSD (optional other capacity SSD) |
| Network LAN | Onboard 2 RTL8111E Gigabit Ethernet |
| Structural parameters | Special performance | Corrosion resistance, high temperature, anti-interference, high stability |
| Structural material | The machine is made of aluminum alloy CNC machine, panel oxidation drawing / sandblasting treatment |
| Shell color | Black (optional silver) |
| Design Features | Light and portable, beautiful appearance |
| Installation method | Support embedded, wall mounted, standing |
| Display parameters | Size | 8 inch 4: 3 color industrial display |
| Resolution | 1024*768 |
| Brightness | 250cd / Square meters (optional other brightness, such as the sun under the visual 1000cd / Square meters) |
| Other parameters | Contrast: 700: 1 (Typ.); Viewing angle: 75/75 (U / D), 75/75 (L / R) |
| Touch parameter | Touch type | Industrial resistive touch screen |
| Specifications | Surface hardness >= 3H; click life >= 50 million times;
touch intensity <= 45g ~ 250g |
| Material | Reinforced plexiglass |
| Interface parameters | I / O interface | 5*COM/4*USB/2*LAN/1*VGA/1*HDMI/1*DC IN |
| Optional interface | RS485/WIFI/4G/3G (optional) |
| Environmental parameters | Temperature | Working temperature: 0 ºC ~ 60 ºC (optional -20 ºC ~ 70 ºC);
Storage temperature: -20 ºC ~ 70 ºC |
| Relative humidity | 10 ~ 90%, no condensation |
| Dimensions | Appearance size | 218*175*42mm |
| Installation size | 211*167mm (embedded hole size);
75*75mm (VESA bracket wall mount) |
| Power support | DC power supply | DC 12V power input (optional 9-36V wide voltage) |
| Shipping accessories | Standard | Power adapter + touch screen drive CD + touch pen + embedded mounting clip |
| Operating system | | Support MS series winXP, win 7, Win8 and Linux operating system |
| Warranty | | 12 months (longer warranty time optional) warranty |

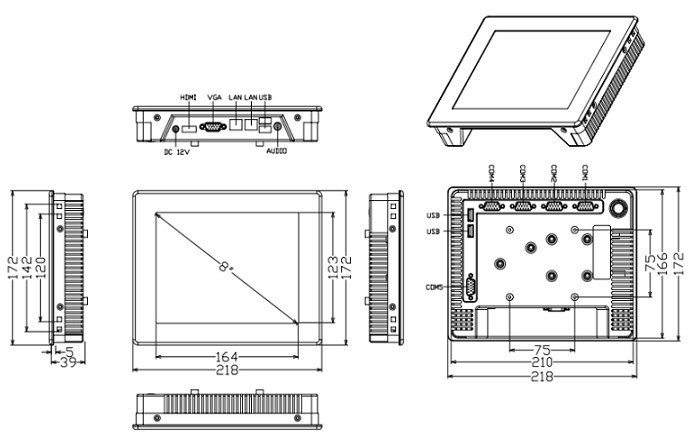

Engineering structure
