| Price: | US $ 10000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 2040 |
|---|---|
| Service: | Offering Oversea Service |
| Table: | T-Slot Aluminum +PVC or Vacuum |
| Spindle Power: | 9kw(Without Spindle) |
| Driver: | Leadshine M860 |
| Motor: | Stepper 450b or Servo |
| X,Y,Z Traveling: | X, Y, Z Traveling |
| Inverter: | Fuling or Delta |
| Control System: | Weihong or DSP or Syntec |
| Votage: | 220AV/380AV |
| Cooled: | Water or Air |
Technology Features:
1. Rack and pinion transmission for the X and Y axes, transmission by the ball screws for the Z-axis, this machine ensures high precision and fast speed
2. Whole machine by 5mm steel pipe welding, solid, resistant, rigid
3. Motorized by stepper motor, double drive on the Y axis which allows stable operation
4. Equipped with the Italian mark HSD spindle that allows stable operation and high precision
5. Adopt vacuum system, configured with vacuum pump of high absorption which can absorb different size materials
6. Humanistic design, the machine can be disassembled, easy and convenient to carry
7. This machine is with automatic tool sensor, convenient and saves time to adjust the tool.
Application:
This is a cost effective CNC Router.Suitable for middle or small wood working factory and other advertising company.Easy to operate.Hand held keypad interface allows operator to set job parameters,jog the machine,perform system tests and download jobs from a remote computer system.Productivity software Type3 or Artcam is support as optional.
Technic specification

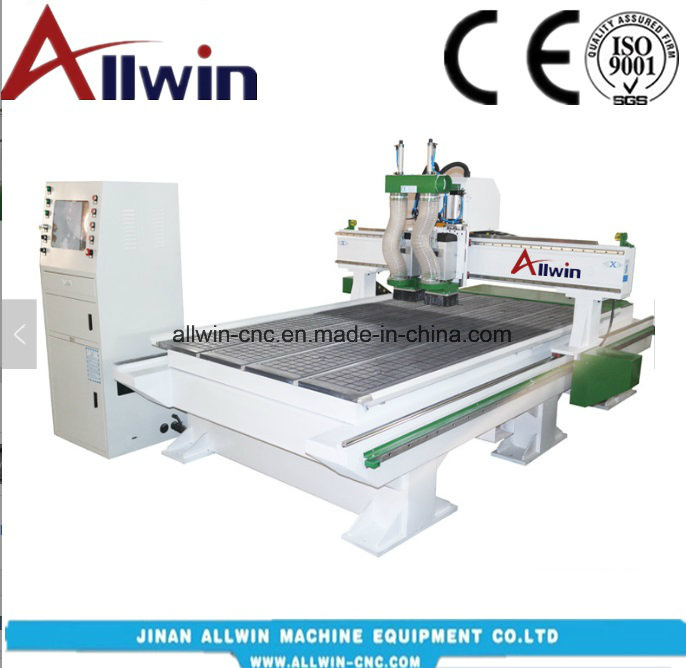

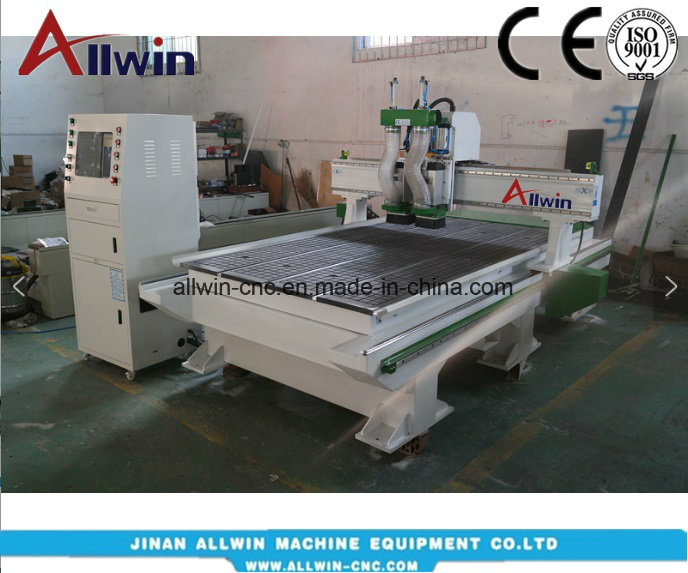

Model | ALLWIN-2040 CNC Router |
ER Clamp Holder | ER 25 |
Frame | 15mm steel pipe welding |
X,Y,Z Working Area | 2000x4000x200mm |

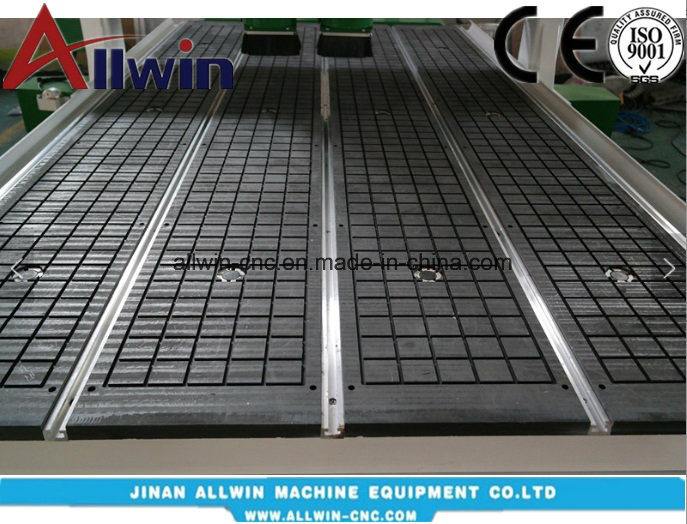

Table Surface | T-slot Aluminum +PVC or Vaccum absorption table |
X, Y Structure | Oblique rack gear transmission |
Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Max. Power Consumption(Without Spindle) | 2.5kw-3kw |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 18000mm/min |
Spindle Power | 6kw water cooling spindle |
Spindle Speed | 0-24000 RPM |
Drive Motors | Stepper Motor |
Working Voltage r | AC 220V/380V, 50/60 Hz |
Operating System | Ncstudio or Mach3 PC Software |
Computer Interface | USB |
Flash Memory | 256M(U Disk) |
Software Compatibility | Type 3/Artcam/Ucancame V9 for option |
Command Language | G code |
Running Environment Temperature | 0-45°C |
Relative Humidity | 30%-75% |
X,Y Resolution | <0.01 |
Inverter | Fuling or Delta |
Electrical components | Schneider |
Limit switch | Omron |
Driver | Leadshine or Yako |
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Yes
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
.Packing & shipment :
Save space as much as possible for container loading.
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
