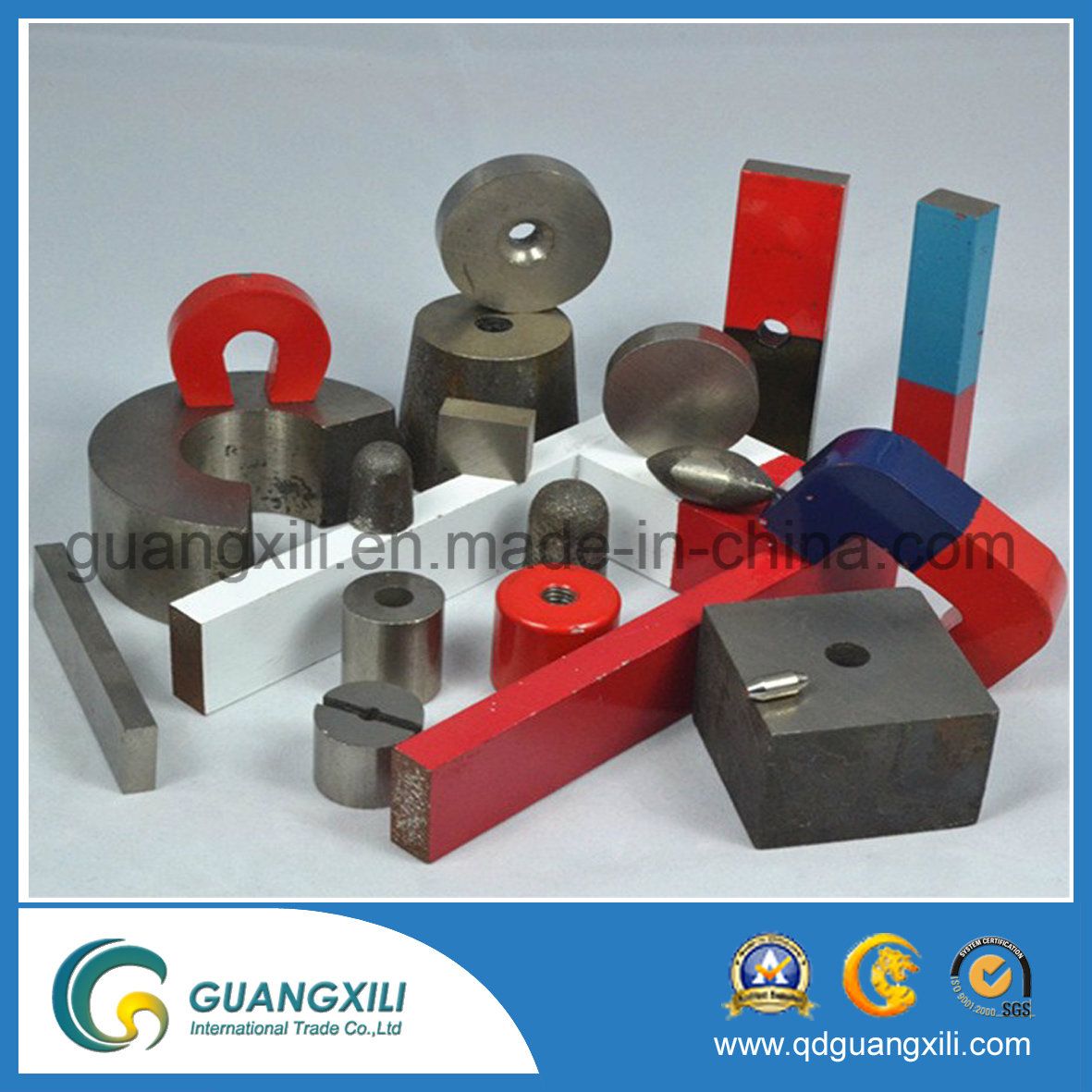

U Shape/ Bar Education AlNiCo Magnet for Teaching
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
U Shape/ Bar Education AlNiCo Magnet for Teaching
AlNiCo magnets are made primarily from aluminum, nickel, cobalt, copper, iron and sometimes titanium. Sintered AlNiCo magnet is manufactured using a powder metallurgy process.
A. Product details
| Material | aluminum, nickel, cobalt and iron with varying additions of other elements |
| Grade | LN10; LNG13; LNG37; LNG40; LNG44; LNG52; LNG60; common Alnico5
or you can choose Alnico2,3,5,8,9 |
| Shape & Size | Bar,
Common size: D0.5x3 inch, D0.5x2 inch (D12.7x76.2mm,D12.7x50.8mm),or Customized |
| Features | Compact crystal, high intensity, good chemistry stability, strong anti-corrosion, even elements, excellent magnetic performance, excellent temperature stability, highest usage temperature reach 550 °c |
| Production chart: | Raw material---mixing---modeling---melting---heat treatment---testing---
cutting and grinding---inspection---packing---shipping---after- sale service. |
| Application | Motor, sensor, meter, sound device, magnetic separator, automobile, aviation,
aerospace and other application |
B. Alnico Magnetic Parameter table
| Grade | Br | HcB | Hcj | (BH)max | Br | Hcj | Max Temp | MMPA
Equivalents |
| KGs | mT | kOe | Ka/m | kOe | Ka/m | MGOe | Kj/m³ | TK(Br)%/K | TK(Hcj)%/K | ºC |
| ISOTROPIC CAST ALNICO |
| LN10 | 6.5 | 650 | 0.48 | 38 | 0.5 | 40 | 1.25 | 10 | -0.035 | -0.025 | 450 | ALNICO3 |
| LNG12 | 7.5 | 750 | 0.56 | 45 | 0.58 | 46 | 1.5 | 12 | -0.03 | -0.02 | 450 | ALNICO2 |
| LNGT18 | 5.5 | 550 | 1.13 | 90 | 1.21 | 97 | 2.25 | 18 | -0.025 | 0.01 | 550 | ALNICO8 |
| ANISOTROPIC CAST ALNICO |
| LNG34 | 11 | 1100 | 0.63 | 50 | 0.65 | 52 | 4.25 | 34 | -0.02 | 0.01 | 525 |
ALNICO5 |
| LNG37 | 11.8 | 1180 | 0.61 | 49 | 0.64 | 51 | 4.63 | 37 | -0.02 | 0.01 | 525 |
| LNG40 | 12 | 1200 | 0.63 | 50 | 0.65 | 52 | 5 | 40 | -0.02 | 0.01 | 525 |
| LNG44 | 12.5 | 1250 | 0.65 | 52 | 0.68 | 54 | 5.5 | 44 | -0.02 | 0.01 | 525 |
| LNGT34 | 11.5 | 1150 | 0.73 | 58 | 0.75 | 60 | 3.5 | 28 | -0.02 | 0.03 | 525 | ALNICO6 |
| LNG52 | 13 | 1300 | 0.7 | 56 | 0.73 | 58 | 6.5 | 52 | -0.02 | 0.03 | 525 | ALNICO5DG |
| LNG60 | 13.5 | 1350 | 0.73 | 58 | 0.75 | 60 | 7.5 | 60 | -0.02 | 0.03 | 525 | ALNICO5-7 |
| LNGT38 | 8 | 800 | 1.38 | 110 | 1.4 | 112 | 4.75 | 38 | -0.025 | 0.01 | 550 |
ALNICO8 |
| LNGT40 | 8.5 | 850 | 1.44 | 115 | 1.46 | 117 | 5 | 40 | -0.025 | 0.01 | 550 |
| LNGT44 | 9 | 900 | 1.44 | 115 | 1.46 | 117 | 5.5 | 44 | -0.025 | 0.01 | 550 |
| LNGT36J | 7.2 | 720 | 1.88 | 150 | 1.9 | 152 | 4.5 | 36 | -0.025 | 0.01 | 550 | ALNICO8HC |
| LNGT60 | 10 | 1000 | 1.38 | 110 | 1.4 | 112 | 7.5 | 60 | -0.025 | 0.01 | 550 |
ALNICO9
|
| Magnetic properties of Cast AlNiCo magnet: |
| Equivalent | Grade | Remanence | Coercive Force | Max. | Density | Rev. Temp. Coef. | Curie Temp. | Max. |
| MMPA | | |
| Class | energy product | operating Temp. |
| | Br | Hc | (BH)max | D | Br | Hc | Tc | Tw |
| | mT | KGs | KA/M | Oe | KJ/m3 | MGOe | g/cm3 | %/° C | %/° C | ° C | ° C |
| ALNICO 3 | LN9 | 680 | 6.8 | 30 | 380 | 9 | 1.13 | 6.9 | -0.03 | -0.02 | 810 | 450 |
| ALNICO 2 | LNG12 | 720 | 7.2 | 45 | 500 | 12.4 | 1.55 | 7 | -0.03 | -0.02 | 810 | 450 |
| LNG13 | 700 | 7 | 48 | 600 | 12.8 | 1.6 | 7 | -0.03 | -0.02 | 810 | 450 |
| ALNICO 5 | LNG37 | 1200 | 12 | 48 | 600 | 37 | 4.65 | 7.3 | -0.03 | -0.02 | 810 | 525 |
| LNG40 | 1250 | 12.5 | 48 | 600 | 40 | 5 | 7.3 | -0.02 | 0.02 | 860 | 525 |
| LNG44 | 1250 | 12.5 | 52 | 650 | 44 | 5.5 | 7.3 | -0.02 | 0.02 | 860 | 525 |
| ALNICO 5DG | LNG52 | 1300 | 13 | 56 | 700 | 52 | 6.5 | 7.3 | -0.02 | 0.02 | 860 | 525 |
| ALNICO 5-7 | LNG60 | 1350 | 13.5 | 59 | 740 | 60 | 7.5 | 7.3 | -0.02 | 0.02 | 860 | 525 |
| ALNICO 6 | LNGT28 | 1000 | 10 | 58 | 720 | 28 | 3.5 | 7.3 | -0.02 | 0.03 | 860 | 525 |
| ALNICO 8HC | LNGT36J | 700 | 7 | 140 | 1750 | 36 | 4.5 | 7.3 | -0.025 | 0.02 | 860 | 550 |
| ALNICO 8 | LNGT18 | 580 | 5.8 | 100 | 1250 | 18 | 2.2 | 7.3 | -0.025 | 0.02 | 860 | 550 |
| ALNICO 8 | LNGT32 | 800 | 8 | 100 | 1250 | 32 | 4 | 7.3 | -0.025 | 0.02 | 860 | 550 |
| LNGT40 | 800 | 8 | 110 | 1380 | 40 | 5 | 7.3 | -0.025 | 0.02 | 860 | 550 |
| ALNICO 9 | LNGT60 | 900 | 9 | 110 | 1380 | 60 | 7.5 | 7.3 | -0.025 | 0.02 | 860 | 550 |
| LNGT72 | 1050 | 10.5 | 112 | 1400 | 72 | 9 | 7.3 | -0.025 | 0.02 | 860 | 550 |

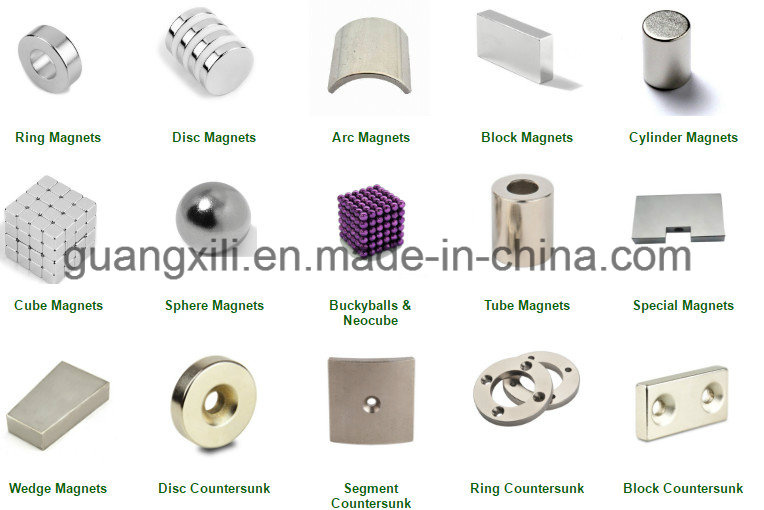

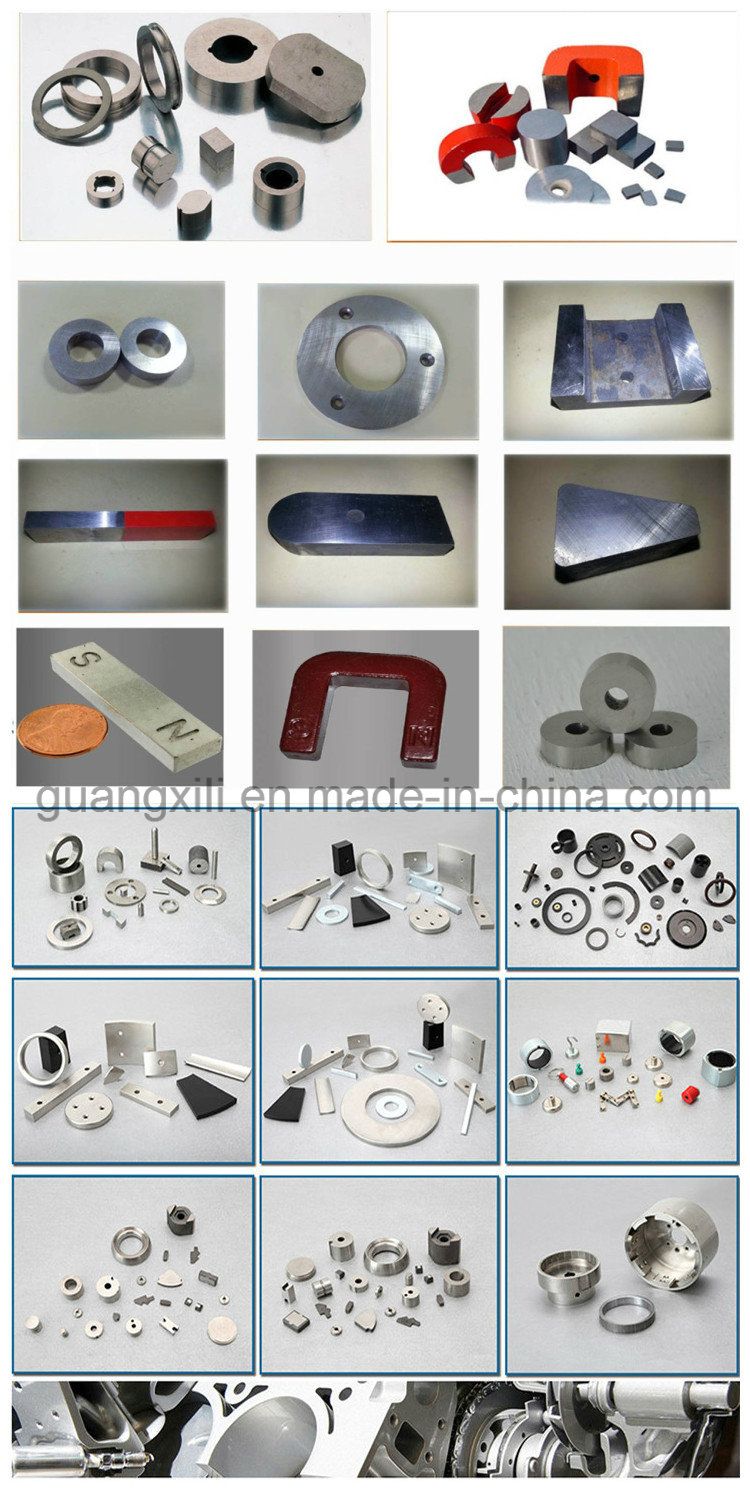

D. More Product

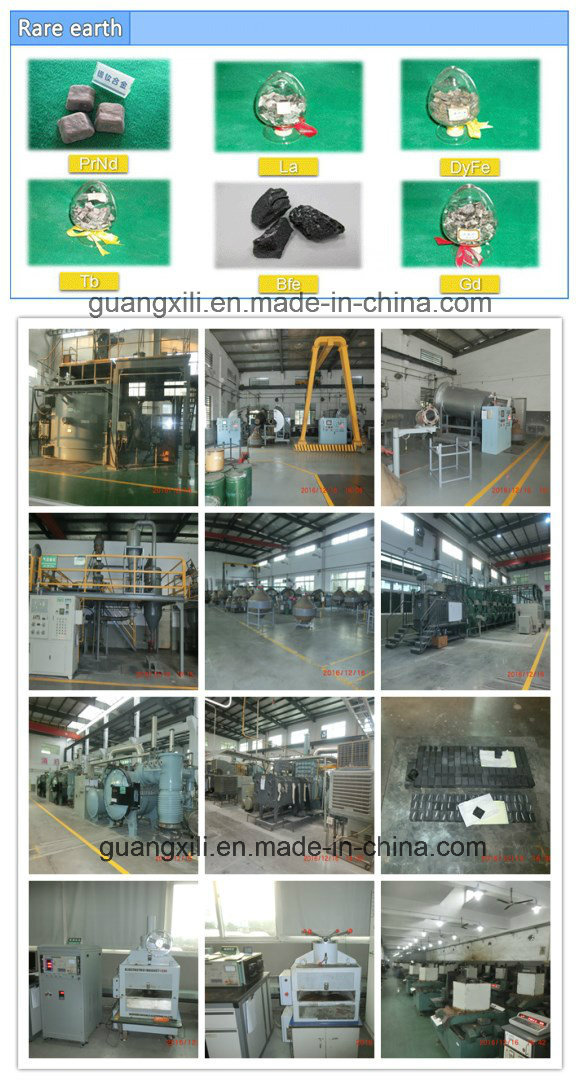

E. Raw Material&Production ProcessRaw materials mixing→Smelting →Powder Production→Molding→Sintering→Magnetic property testing→Fine machinery processing→Surface Coating→Finished Inspection→Magnetization and packing
F. Advantages
Sintered Alnico Magnets:- Excellent temperature stability
- Strong corrosion resistance
- The maximum working temperature is up to 500°c
- Fine grain
- Compact crystal.
- Excellent magnetic consistence and evenness.
- Suitable for small volume and complex shape magnets.
Cast Alnico Magnets:- Excellent temperature stability
- Strong corrosion resistance
- The maximum working temperature is up to 500°c
- Excellent capacity
- High density and magnetic properties
- Shorter production lead time
- Temperature factor of Br is the smallest among all the permanent magnets
- Cast Alnico magnets can be produced in relatively complex shapes
- Tooling for cast Alnico magnets is relatively low, since sand molds are generally used for the casting process

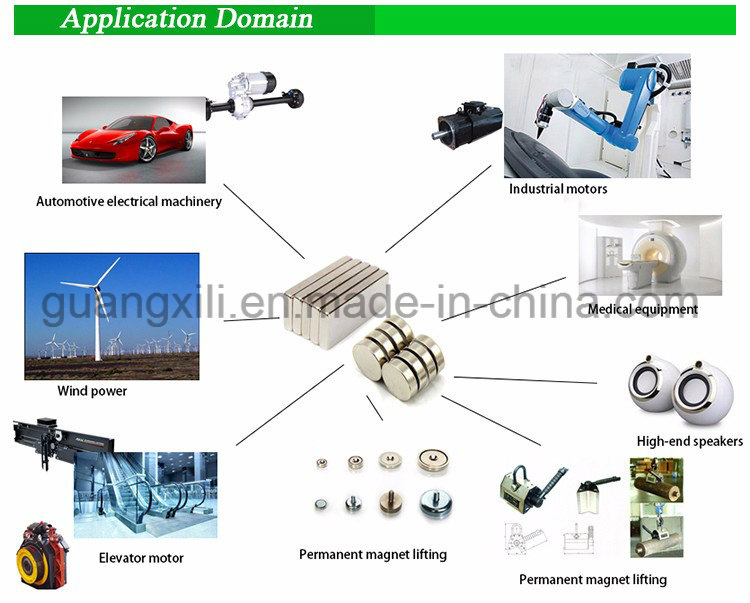

G. ApplicationAlinico Magnets are used in Speedometer, Magnetic Separators, Magnetos, MagneticSensors, Electron tubes, Traveling wave tubes, Radar, Holding magnets, Receiver, Clutches and bearings, Motors, Relays, Controls, Generators, Telephones, Microphones, Loudspeakers, Bell ringers, Security systems, Cow magnets.
H.Packagea: the weight is under 40Kg,we will choose FedEx,DHL or UPS with shielding box for you;
b: the weight is over 100Kg,we will choose shipping for you;
c: the weight is between 40Kg-100Kg per you request;
I. Payment & Delivery
FAQ1. Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please kindly advise the following items:
Dimensions, sizes, shape and drawing with tolerances.
Material grade or magnetic properties.
Magnetic direction, quantity. Surface coating (if necessary). 2:Q: How about the quality of the magnets?
A:We can offer the certification of ISO14001,OHSAS18001.Our factory participate in the sub-project of the nations's 863 research project High performance sintered NdFeB magnets's production and application. 3. Q: What about the sample time and charge?
A: (1) 7-10 days if you want to customize your logo, charge according to your design
(2) 3-7 days for our existing samples for reference 4. Q: What about the delivery time of our products?
A: 10-15days.
Fast Delivery when you choose the item and decide your design, we can produce it as fast
as possible, and deliver it as quick and convenient as possible. 5. Q: Could you provide me the shortest lead time?
A: We have materials in our stock,if you really need, you can tell us and we will try our best to
satisfy you. 6. Q: What is your MOQ?
A: 1-10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process.
MIN and SMALL quantity accept accordingly. 7. Q: How to pay you?
A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
Western Union cash - for small order or samples order.
Other payment: L/C,D/A,D/P,MoneyGra,Paypal or Escrow.
Different areas may exist some differences. 8. Q: Could I pay a visit to your factory?
A: Yes, of course, if you need, we will help you visit our cooperative factory, everything will be well arranged.
9. Q: What about OEM and ODM?
A: OEM and ODM Accept. We have our best designers, we can produce any design you wanted to meet your needs.
10. Q: If I have more questions, where can I get the answer?
A: Any issue, please feel free to contact us any time.
Fiona Sun
Mobile:0086-13963975915
| Prod Model: |
LN10; LNG13; LNG37; LNG40; LNG44; LNG52; LNG60; LN |
| Tolerance: |
+/-0.025mm |
| Rare Earth Magnet, Samarium :25composite: |
Permanent Alinico Magnet |
| Model: |
AlNiCo5~AlNiCo9 |
| Max Temp: |
500 |
| Material: |
Aluminum :8%, Nickel: 14%, Cobalt:24% |
| Color: |
as Demands Painting |
| Delivery Time: |
Within 3-30 Working Days |
| OEM: |
Yes |
| Processing Technical: |
Cast |
| Product Name: |
U Shape/ Bar Education AlNiCo Magnet for Teaching |
| Application: |
Motor Magnet |
| Shape: |
Ball. Bar, Block, Round, Square, Sheet, Ring |
| Coating: |
Painting |
| Grade: |
Ln10; LNG13; LNG37; LNG40; LNG44; LNG52; LNG60; Ln |
