| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 50/Piece |
| Pay Type: | T/T,Western Union,Paypal |
Product size:118*72*38mm Mechanical Life: 100,000 Times of Operation Working Voltage:110v-270v AC Output:3-1000w per gang,total 2000w Panel material: Crystal toughened glass panel Operating Environment: -20~70 Centigrade Self Consuming Power:0.006w Current: 5A, |
smart wall switch 's installation diagram
A.Rotate the screwdriver to open the panel
B.Use the wire connect switch
C.Turnover the switch
D.Place the switch into the mounting box after connecting the wires.
E.Mount with two screws.

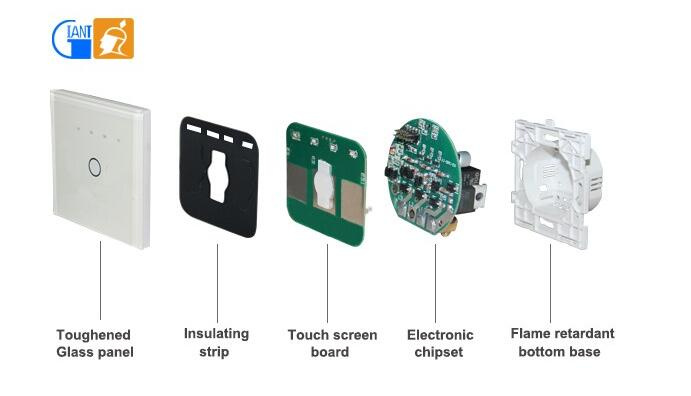

The smart wall switch 's components
Note:
1. The electric power should be off during installing.
2. This touching switch do not have RF remote control, dimmer function.
3. Wiring must be done according to the wiring diagrams.
4. Each load capacity is minimum 15W and maximum 1000W.
5. The size of the installing screw hole is 83mm, and the dimension of mounting box is at least 86 x 86 x 34 mm.
6. If the touch testing is operated without the glass panels, please shut down the power first, then if the switch and install the glass panel, connect the power at last.
7. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand. Make sure you don't mind before you bid.
8. Please allow 1-5mm differences due to manual measurement.
| Prod Model: | JJ-US-01 |
|---|---|
| Brand: | Giant |
| Mechanical Life: | 100,000 Times of Operation |
| Working Voltage: | 110V-270V AC |
| Output: | 3-1000W Per Gang,Total 2000W |
| Panel Material: | Crystal Toughened Glass Panel |
| Certification: | CE |
| Type: | Wall Touch |
| Principle: | Touch |
| Standard: | Us Standard |
| Application: | Home/Hotel |
