UV Flatbed Printer 2030 with Printhead Ricoh Gen5 with High Precision

Name: UV Flatbed Printer 2030 with Printhead Ricoh Gen5 with High Precision
Brand: china-crystals.com
SKU: 734146362
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 30000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

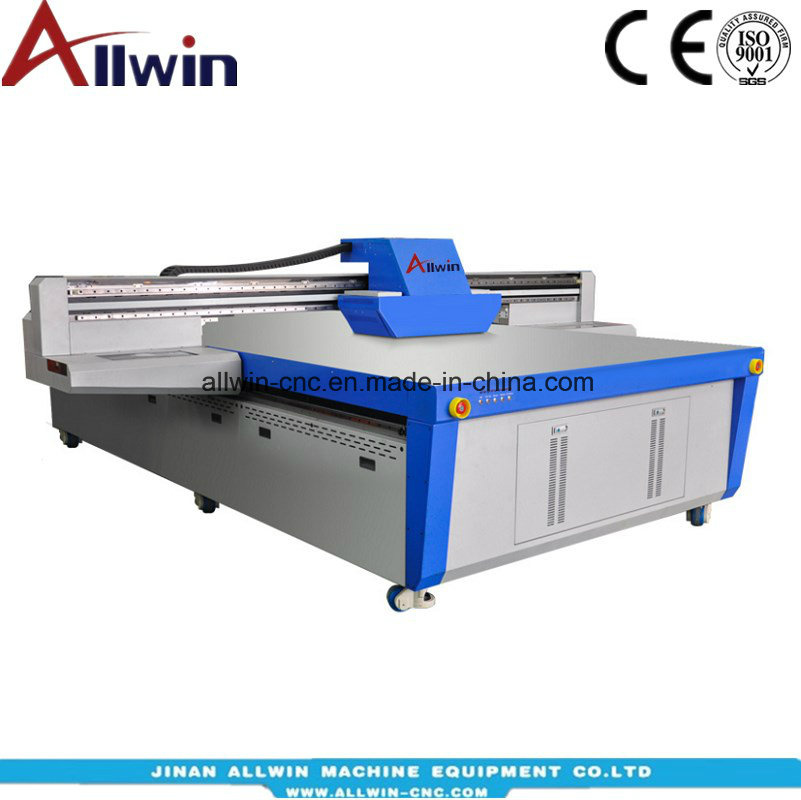

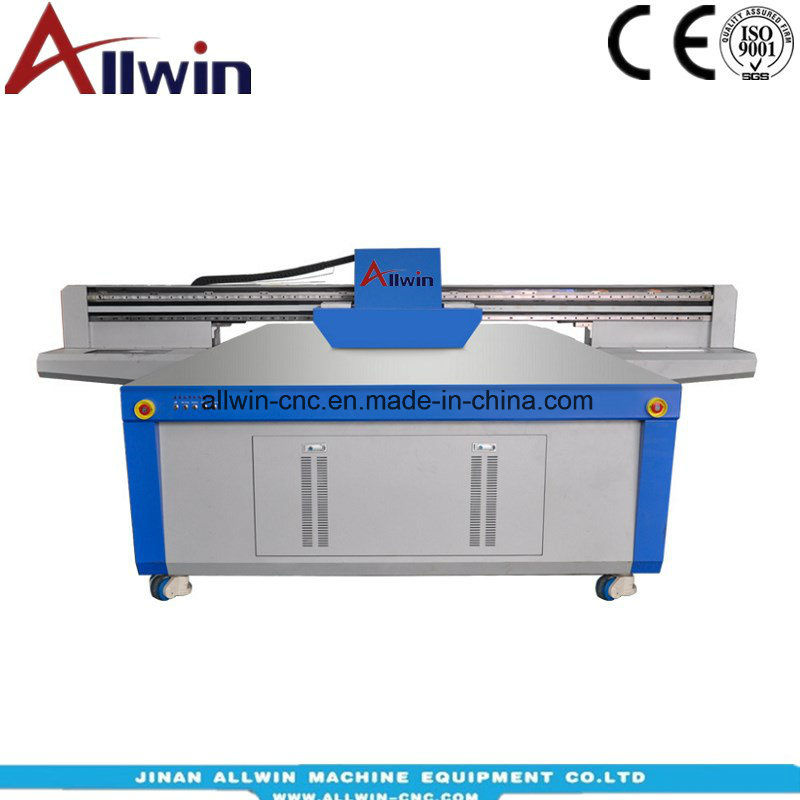

UV Flatbed Printer 2030 with printhead Ricoh Gen5 with high precision

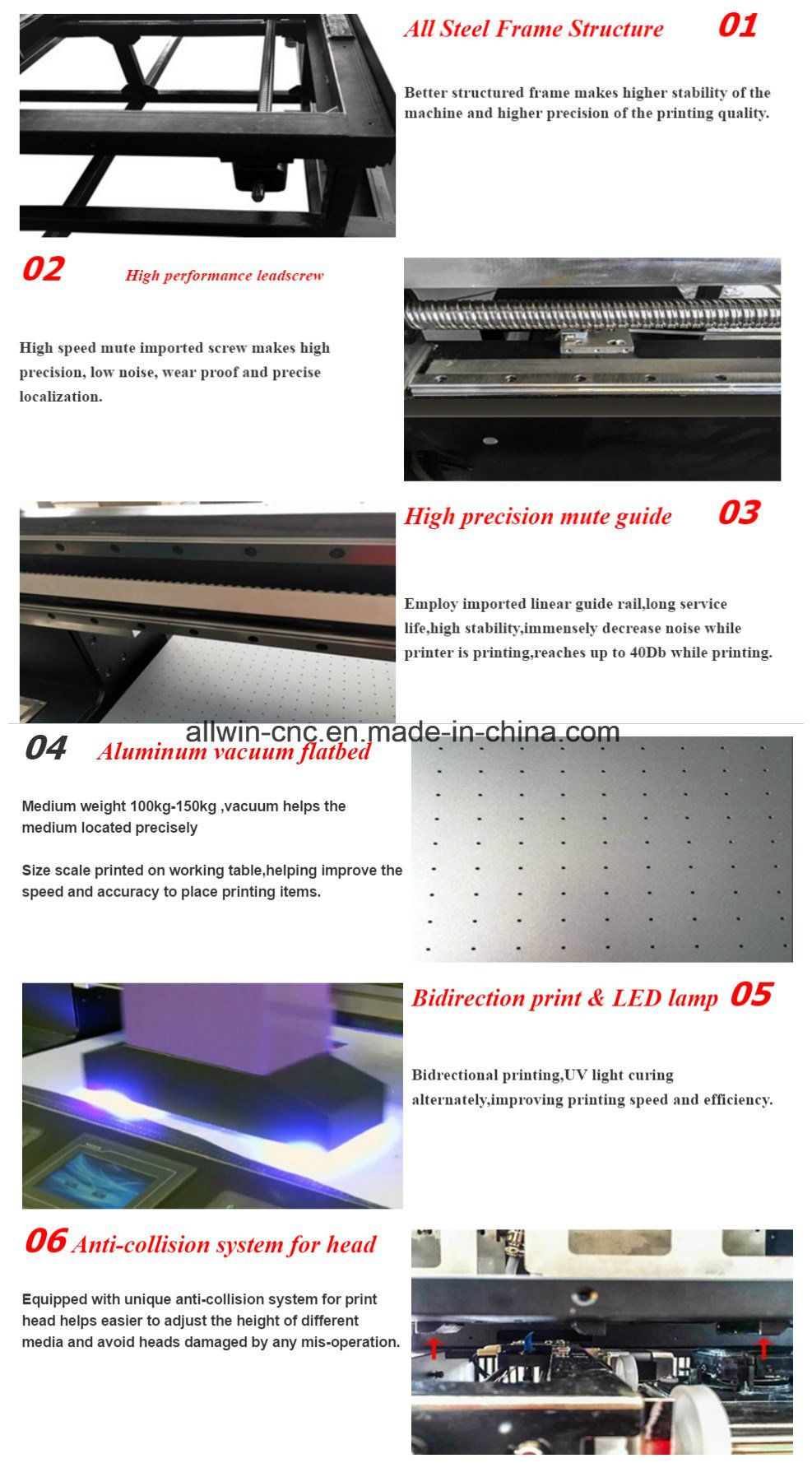

Product Description:

Large format sheet printing preferred models
5PL fine ink dots
Nozzle warranty for two years
Automatic positioning function
Spray head intelligent collision avoidance system

Product Application

UV Printer is a high-tech film-free full color digital printing machine: It is suitable to print on any materials,Such as T-shirts, sliding doors, cabinet doors, wooden doors, glass, plates, signs, crystal, PVC, acrylic , Metal, plastic, stone, leather and other surface color photo-level printing. No need to plate once the printing is completed, rich and colorful colors, abrasion resistance, UV protection, easy operation, printing images fast, in full compliance with industrial printing standards. UV2030 flatbed inkjet printer,flatbed printer price,good quality uv led flatbed printer.

SPECIFICATIONS FOR UV2030 flatbed printer
Print Resolution	Speed model	360*1440dpi	>=30m²/per hour
	Standard model	720*1440dpi	>=12m²/per hour
	High quality model	1440*1440dpi	>=10m²/per hour
Main performance parameters	G5 Printer head
	UV Curing System with LED UV lamp (Water Cooling)
	Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet

Machine Type	Flatbed UV inkjet printer
Features	Auto height measurement Auto cleaning system * Auto height measurement * Positive pressure Auto cleaning system * Auto adjustment of deviation * Finished products is Water proof, UV proof, and Scratch proof * Finished product is suitable for outdoor use * Platform:Aluminum Vacuum absorption platform with 4 pcs engines Dual negative pressure ink supply system Aluminum double filter ink box *3 in 1 high speed CPU servo driver

UV Curing System	LED UV Light (Water Cooling system)
Printing Method	Drop-on-demand Piezo Electric Inkjet
Printing Direction	Smart Bi-directional unidirectional Printing Mode

Warranty	1 year warranty for all machine parts excluding the printer head.
Maintenance	Lifetime online and phone support on machine maintenance.

Max. Print Format	98.5''*51.1' (250x130cm)
Max. Print Height	10cm
Power Requirement	50/60HZ 220V(±10%)<5A
Environment	20 ~ 28 ºC HR40-60%

No. of Printhead	2/3/4/6/8 pcs one pcs with two color printing
RIP Software	SAi PhotoPrint DX or DX Plus
Operation System	Microsoft Windows 98 / 2000/XP/Win7/Win8

Interface	USB2.0/3.0 Port
Languages	English,Other language available
Ink Colors	CMYK / CMYK+LC+LM+WW / CMYK+W+V / CMYK+LC+LM+W+V
Ink Type	UV LED ink

Ink Supply	2000 ml/Bottle CISS Built Inside With Ink Bottle
Height Adjustment	Automatic with Sensor.
Driving Power	110 V/ 220 V.
Power Consumption	8300W

Ink Consumption	30ml/SQM.
Working Environment	18-28 degrees.
Packing	Wooden Case
Machine Net Weight	1280Kg

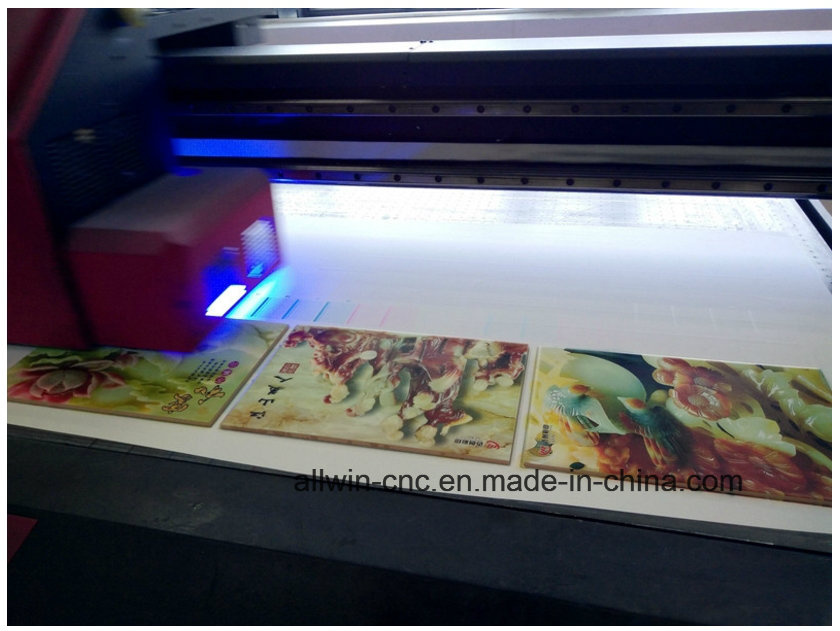

Samples:

Package and shipping:

FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents

Contact information:

Prod Model:	2030
Plate Type:	Flatbed Printer
Model Number:	Allwin-UV2030
Usage:	Card Printer, Label Printer, Paper Printer, Tube
Automatic Grade:	Automatic
Color & Page:	Multicolor
Voltage:	110V/220V
Dimensions:	(LWH): L3970mmW2100mmH1400mm
Product Name:	UV2030 Flatbed Printing Machine
Certification:	Ce Certification
After-Sales Servive:	Engineers Available to Service Machinery Overseas
Printer Material:	Card Printer, Label Printer, Paper Printer, Tube
Type:	UV Printer
Software Format:	Sai Photoprint Dx or Dx Plus

Jinan ALLWIN CNC Machinery Co. Ltd is located in Jinan, Shandong Province, which specializes in manufacturing CNC and laser machines.

ALLWIN CNC Machinery Co. Ltd is a platform for equal and mutual benefit, no cheating but a win-win. We are friends of suppliers as well as buyers, our aim is to let buyers to find great products at a reasonable price.

Our main products are CNC Router and Laser Machine, 5 Axis ATC CNC Router, General 3 Axis CNC

Router, CNC Plasma Cutting Machine, The application covers Woodworking, Advertising, Marble,

Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in European, American countries

Africa, Asia, etc.

And we also have some very gold partner for Laser engraving machine and cutting machine.

We are trying our best to produce innovative products to help customers lower their cost and our business is to improve your business. We offer overservice to our clients and we are looking for sales agent over the world
