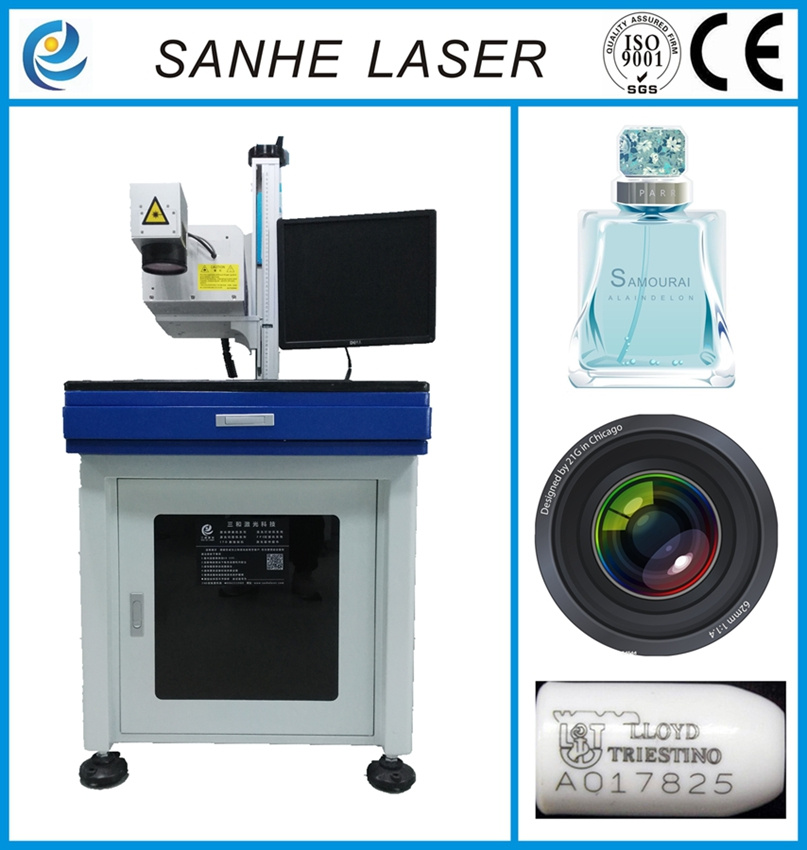

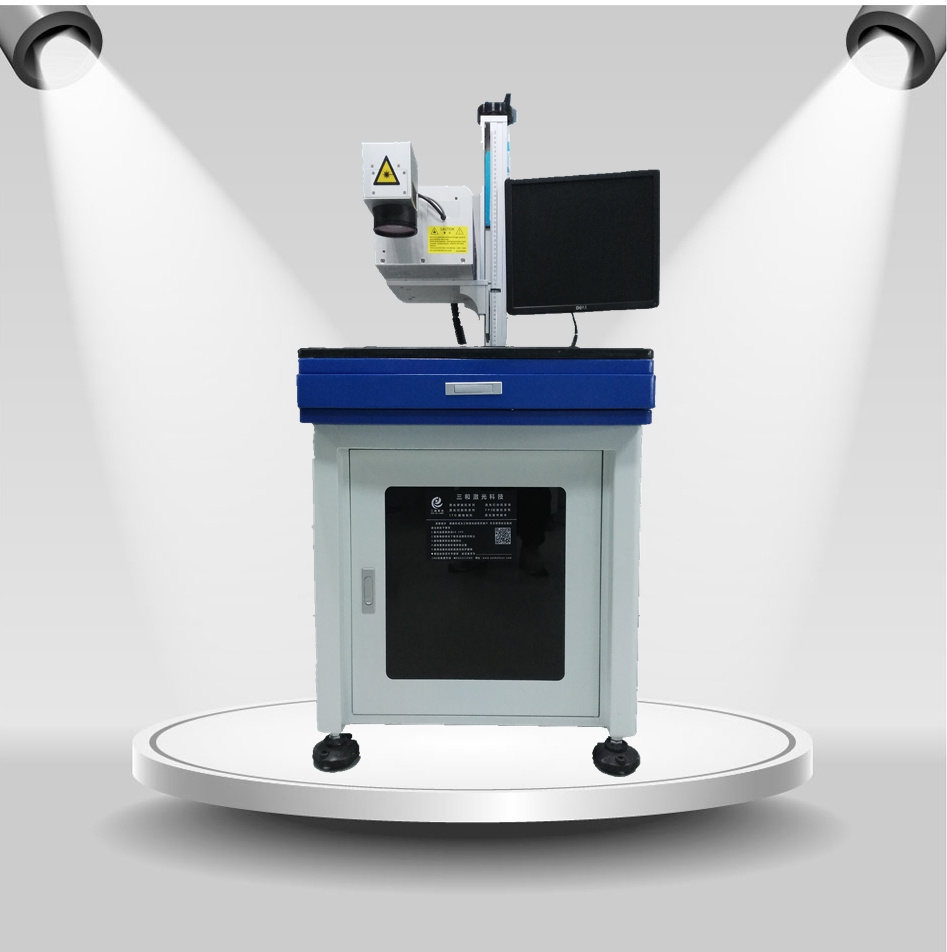

UV Laser Marking Laser Marker Machine Ce ISO
| Price: |
US $ 15000-21300/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Technical parameters:
| Machine model | 3HE-UV3W/5W | 3HE-UV8W |
| Laser wavelength | 355nm |
| Pulse repetition rate | 20-100KHz | 15-100KHz |
| Pulse width | <20ns@30KHz | <25ns@10KHz |
| Average power(W) | 2.0-3.0@30KHz | 4.0-5.0@40KHz | 7.0-8.0@50KHz |
| Average power stability | <±2% over 8 hours |
| Pulse-to pulse instability | <3%rms |
| Spatial mode | TEM00(M2<1.3) |
| Beam divergence | <2mrad(full angle) |
| Beam diameter | 0.6±0.1mm |
| Beam roundness | >90% |
| Pointing stability | <50urad |
| Polarization direction | Horizontal |
| Polarization ratio | 100:1 |
| Cooling method | Air-cooling | Water-cooling |
| Ambient temperature(°C) | 15-30 |
| Storage temperature(°C) | -10-50 |
| Relative humidity | 10%-80%(non-condensing) |
| Warm-up time(mins) | <10 |
| Operating voltage | 90V-260V |
Product application :
UV laser marking machine main used for all kinds of glass,
Charger shells,TET ,LCD , plasma screens, textiles,thin ceramic,
Silicon, IC Crystal, Sapphire,polymers,drug, cosmetic,polymer
materials such as wire, bottles(boxes) surface marking , and micro-
holes.
Product features:1.UV laser with stable Water-cooling.
2.UV laser temperature control PID with high precision.
3.Machine choose a variety of modes for first pulse suppression, to
achieve the best inhibitory effect.
4.UV laser machine can offer a variety of different average laser
power and pulse width, fit for different processing requirement.
Looking forward to cooperating with you !
| Prod Model: |
3HE-UV3W/5W/8W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Model: |
3he-UV5w |
| Wavelength: |
355nm |
| Pulse Repetition Rate (kHz): |
20-100 |
| Pulse Width(Ns): |
<20ns@30kHz |
| Average Power (W): |
4.0-5.0@40kHz |
| Average Power Stability: |
<+(-)2%Over 8hour |
| Colling: |
Air-Cooling |
| Spatial Mode: |
Temoo(M2<1.3) |
| Operating Voltage(V): |
90-260 |
| Certification: |
CE, ISO 9001 |
Dongguan Sanhe Laser Technology Limited Company is a professional manufacturer of laser equipment and the modernization of production and application of high-tech enterprises. In this eight years, Outstanding Sanhe team has been committed to the study and practice of light conversion, take lifting laser value as our business goals, take promoting Chinese national laser industry to the international for our glorious mission. We believe that if you want to succeed, you must professional, and professional derived from the practical, and pragmatic is responsible. We insist on professional skills and pragmatic approach to service each customer.
We are ISO international quality system performer. It is also the European CE mechanical testing and certification practice. With advanced technology and excellent quality to open up more and more market at home and abroad constantly. Our devices have been sold in South Korea, Thailand, Germany, the United States, Japan, Malaysia, Vietnam, the Philippines, India, Pakistan, Indonesia, Canada and other countries.
Sanhe Laser has a young, professional, innovative and passionate team for research and development and production. They witnessed the birth and beyond of every new technology. We maintain a long-term and stable cooperation relationship with Beijing Institute of Opto-electronic, Anhui Machine Institute, Huazhong University of Science, Dongguan University of Technology and other well-know Institute and Universities. For our products innovation to provide a solid technical support and security.
Our annual production capacity up to 1000 sets, include laser welding, marking cutting three series nearly hundred model products. Equipment is widely used in hardware, electronic, sapphire, medical care, jewelry, automotive, communications, printing, plastic products and more than 200 industry sectors. Some of the equipment allows for automated flow, and with other equipment to achieve prefect docking.
Sanhe Laser has branch or offices in Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.
We have a dream in heart to ignite hope of success on the road; We holds professional to create a new direction of the laser industry; We stick together to accumulate strength for the new brand; Sanhe Laser has been leading the line to soar.
