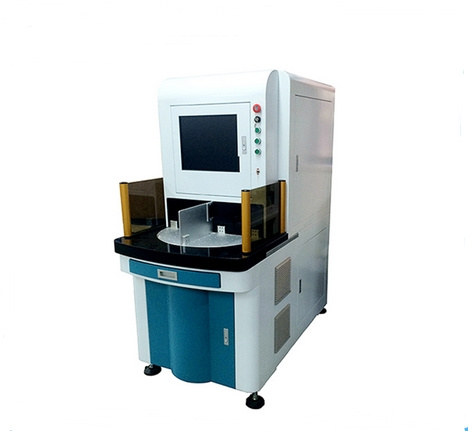

UV Laser Marking Machine For All Materials Plastic Laser Marking Machine
Purple light laser marking machine takes 355nm pumped purple light laser device as the light source and takes advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect. The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer's demand of higher marking requirements.
Product features
(1) Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
(2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it's very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
(6) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
(7) It can mark date, bar code and two-dimension code automatically.
(8) Superior performance, stable, high conversion rate and low energy consumption.
Product advantages
(1) This machine is designed by our talented designer who has many years work experience. Mature technology of design ensures good attenuation resistance and shock resistance of laser. The exquisite seal design can make the pressure inside and outside different to avoid any dust. At the same time, effectively reduce the laser radiation to human body.
(2) Most of laser power supply and power supply control chip adopt foreign brands, the power switch used Taiwan brands, all these guarantee the stability of the machine to a large extent.
(3) This machine can only be operated by key and urgent stop switch at the control of integration of intelligent software. Humanized operation process produces less damage due to wrong operation and other accidental issues.
(4) Continuous operation for 24 hours meet the needs of industrialized mass production of online or offline.
Applicable Area and Material
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
Main Technical Data
| Model | DPL-UV-3W/5W | DPL-UV-7W/10W/15W |
| Laser type/wave length | 355nm |
| Laser output power | 3W/5W | 7W/10W/15W |
| Beam qualitym*m | <1.1 | <1.3 |
| Marking speed | 400 characters per second | 500 characters per second |
| Repeated accuracy | ±0.001mm |
| Working area | 110×110mm or 180×180mm ( adjustable ) |
| Machine power | 800W | 1200W |
| Power supply | 380V/50-60Hz or 220V/50-60Hz |
| Minimum character | 0.1mm |
| Minimum line width | 0.015mm |
| Life of the laser machine | 50,000* 100,000 hours |
| Cooling system | Water Diode Cooling |
| Control interface | Standard USB |
| Overall dimensions | 900mm×680mm×1200mm |
7.Repair service:
I. We can provide the main component for each marking machine, because we do not have the maintenance department at overseas . You can send back the problem spare parts to maintenance or replacement the new spare parts for your marker. II. We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us. III. If you have any particular suggestions or questions on our products, please feel free to contact us. We will be very grateful and reply your email or fax within 24 hours.
8.Warranty Services:
One year warranty period (man-made damage is negotiable). Lifelong maintenance and spare parts supply. Free design of fixtures as customers required. Free training for operation staffs. Free marking samples of customer provided.
