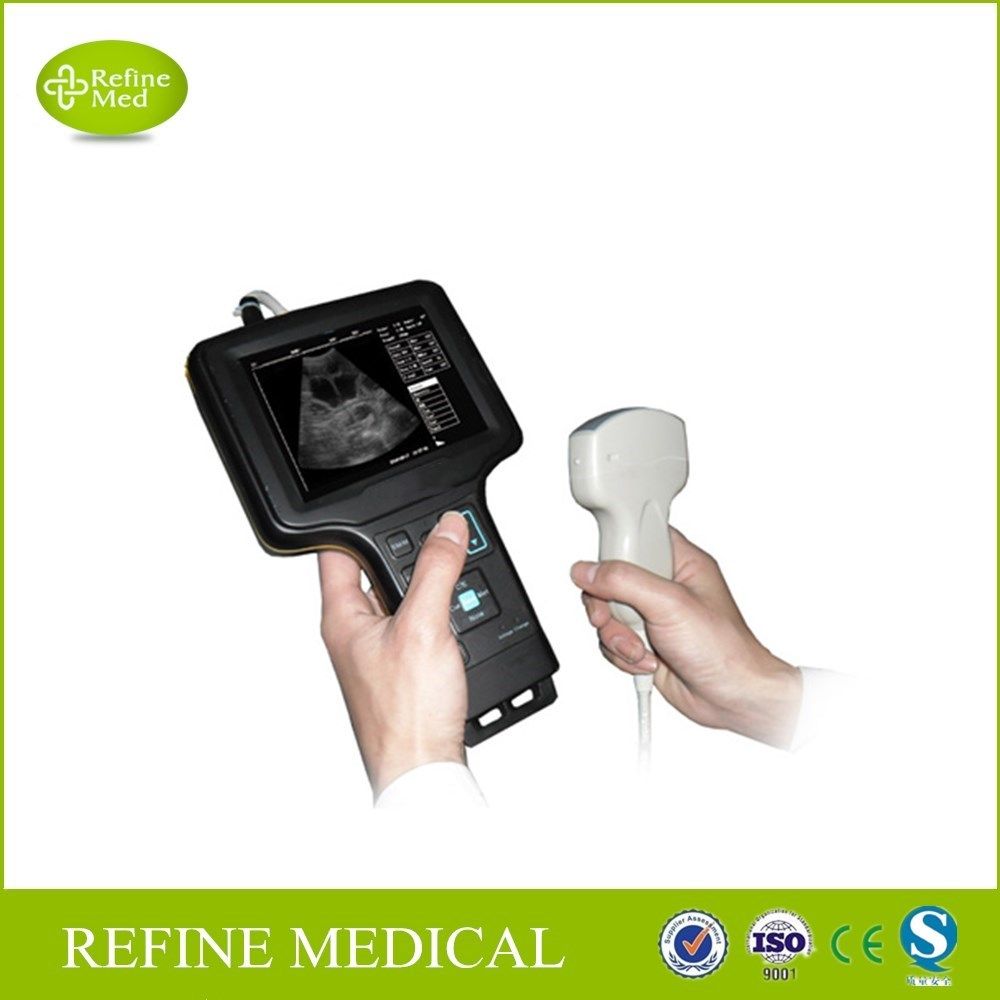

V6 Handle Imaging System Ultrasound Scanner
Feature:
-5.6 inch TFT screen
-Pretty and very light
-Full digital imaging technology, crystal-clear Image
-Simple and convention on operation
-Low power consumption
-8G Large volume storage image
-Built-in battery
-Solid shell and structure
-Waterproof
-Low cost
Specifications:
-Display screen: 5.6" TFT colr screen
-Scanning manner: Electronic convex array, electronic linear array
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B
-Scanning range: Convex array 60°~150°
-Amplification factor:1.0, 1.2, 1.5,2.0
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Battery capacity: 3000mAH/7.4V,can work more than 2 hours
-Memory capacity: 8GB, can optional to 32GB
-Report function: auto make report
-Output interface: USB port, video.
-Overall size: 225mm×145mm×25mm
-Weight: 900g(with battery)
-Waterproof: IP65Standard Configuration:
Host, convex probe, built-in battery,
power adapter, bag.
Optional:
Extra battery; Larger storage;
Can customized to with linear probe, Micro-convex probe, Rectal probe, Backfat probe.
