Walk-in Temperature Humidity Environmental Test Machine Testing Equipment
| Price: |
US $ 33000-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Walk-in Temperature Humidity Environmental Test Machine testing Equipment Applicable rangeWalk-in Temperature Humidity Environmental Test Machine testing Equipment are applicable for testing the performance indexes of aeronautic & astronautic products,ships,weapon, accdemies, motorcycle, information electronics,instruments & meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, materials, plastics, medical and so on in high-low temperature and humidity alternation environment.
Features(Walk-in Temperature Humidity Environmental Test Machine testing Equipment )1. High intelligence: according to the test condition and requirements, the equipment can automaticly control to reach the set value with max ability and to keep the set value with the minimum ability so as to achieve the optimal control of the whole. 2. High reliability: in order to improve the reliability of the whole equipment, all of the main parts are provided by each well-known professional manufacturers.
3. Energy saving and low consumption: the unique design of energy saving technology can greatly reduce running cost of the equipment.
4. Special design: could design and satisfy the customer's special demand according to customer's requirements.
5. Control interface: LIK design color liquid crystal touches dyadic display screen operating system.
6. Special improvement design feature | Chamber materials | 1.inner wall: SUS304 stainless steel plate.
2. bottom board: SUS304 stainless steel plate and it's reinforced by the well type
high strength square pipe.
3. External: cold rolled steel with power coated; power coated after cleaning and
phosphating treatment. |
| Insulation materials | The thickness of the insulating layer of inner box is 100mm, and the fire resistance
material is high strength PU polyurethane foam insulation(which is more thermal and
refractory than common PU);
thermal insulation coefficient: less than 0.0212kcal/m.hr, and the layer with fire
protection design; the insulation layer has high temperature resistance rock wool
plus fire gypsum layer which can guarantee the thermal insulation materials doest not
melt and burn although catch fire during test. |
| Pressure balancing port | An electronic pressure balance with controllable pressure. The device can keep the
pressure balance inside and outside of test chamber at any time under the conditions
of high temperature, high humidity and wet freezing cycle, and avoid the expansion
of the chamber caused by the increase of the pressure. |
Safaty protection
function | There are environmental safety production and explosion-proof safety protection and
explosion venting function could ensure that the battery fire or explosion in any case,
will not harm to people and the environment. Automatic alarm linkage typeFM200
total flooding extinguishing system. |
|
Intake and exhaust
device | The test chamber is equipped with 1 set of inlet and exhaust device, you can
manually control the exhaust action through the operation panel switch to intake a
large number of air rapidly to discharge the harmful gas in test chamber to outside
of the laboratory through the air duct . In order to avoid the harmful gas harm people. |
| Control panel | Using 10 inch Chinese color LCD touch type man-machine interface and high performance
programmable logic controller(PLC), fault indication lamp, adjustable over temperature
protection, total power switch and USB interface. |
| subequipment | a set of subequipment, material SUS304 stainless steel, high temperature resistance
-70ºC~+150ºC, nontoxic and odorless in high temperature; |
7. Electric Control System1. temperature and
humidity sensor | Armored platinum resistor PT100 Germany JUMO;
Humiditu sensor: Finland VAISALA0.8 class humidity module sensor,
humidity range 0-100%RH, temperature range: -100-200 ºC. |
| 2. Touch screen | Adopt 10 inch color LCD touch type man-machine interface. |
| 3. Showing contents | It can input, display and control the temperature directly. It is equipped with the special
software of our company's test chamber, and the control system adopts the man-machine
dialogue mode. It has automatic, intelligent and humanized design. The control system
can display and set the test parameters, program curves, operating time, the working
state of the heater, chiller and blower. At the same time with the test procedures for
automatic operation and PID parameters self turning function; automatic combination
heating system, cooling system, circulating fan, over-temperature alarm system,
so as to ensure the high quality of the temperature control system.
The main parts are SCHNEDER brand.
Temperature display accuracy is 0.01 ºC and analytical precision control is 0.001. |
| 4.Software | Software V1.0. Machine records of curves and date can be stored computer and
networked use,storage date can not be changed, you can alway stransfer date,
in any office can view the date. National computer software copyright registration
certificate no. 0698434, soft landing. |
| 5. Software integration (optional) | Our company has cooperate with the United States AV, Austria AVL, Gemany Krisler,
Taiwan CHROMA, Aidekesi and other well known brand company.
And we integrated and controlled with the total control system of the production line,
also we could enter the ERP system according customer's requests. The most mature
case of our company is the charging and discharging motor in new engergy filed,
aging cabinet for Delta and rapid temperature and humidity chamber. |

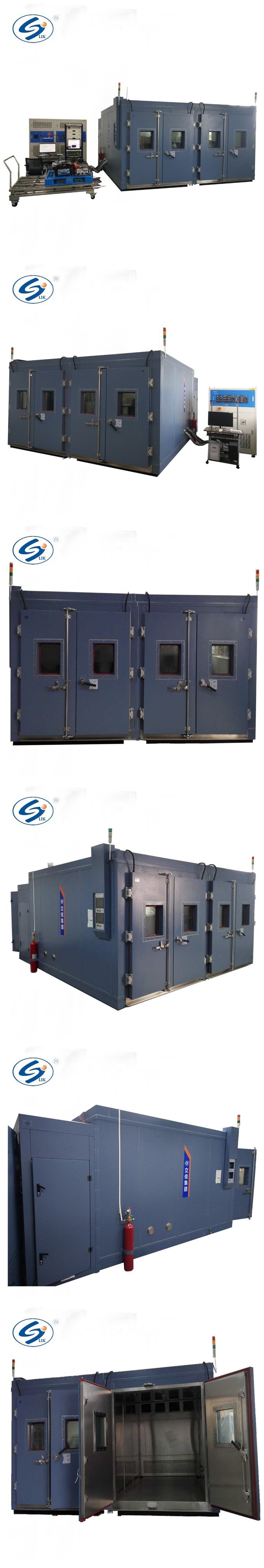

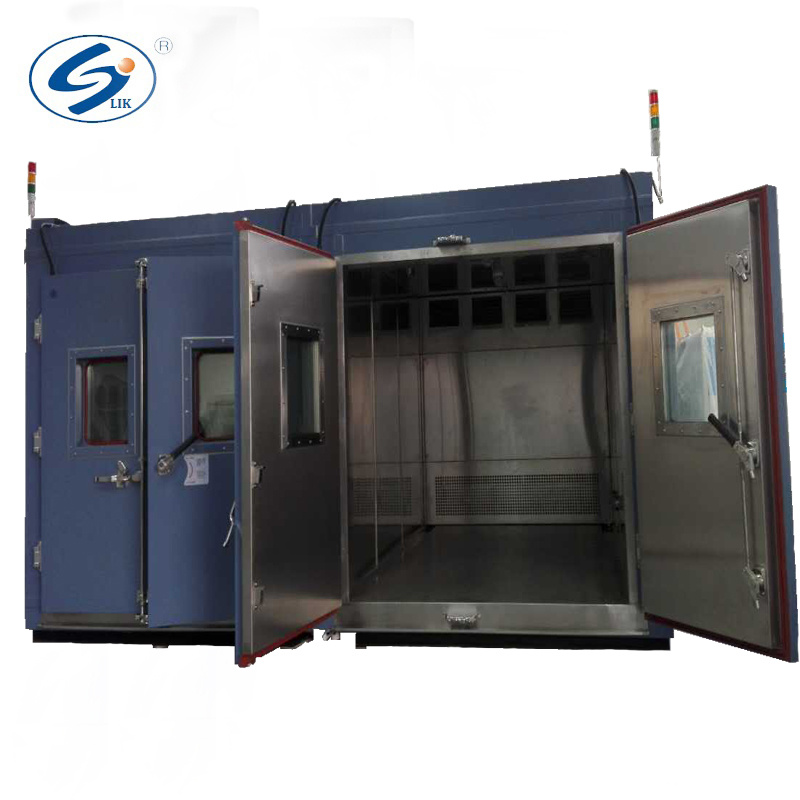

Product Image
(Walk-in Temperature Humidity Environmental Test Machine testing Equipment )
Specifications and technical parameters | Model | LJBT(H)P-10 | LJBT(H)P-12 | LJBT(H)P-17.5 | LJBT(H)P-22 | LJBT(H)P-32 | LJBT(H)P-40 | LJBT(H)P-60 |
Inside volume
(m³) | 10 | 12 | 17.5 | 22 | 32 | 40 | 60 |
Inner size:
W*D*H(cm) | 200*250*200 | 200*300*200 | 350*250*220 | 250*400*220 | 340*240*390 | 340*240*480 | 500*200*600 |
| Performance | temperature
range | R: -20ºC~150ºC; L: -40ºC~150ºC; U: -60ºC~150ºC |
| Humidity | 20%~98%RH |
Temp.
fluctuation | ±0.5ºC |
Temp.
deviation | ±2ºC |
Humidity
deviation | ±3.0%RH(>75%RH), ±5.0%RH(≤75%RH)*4 |
| Heating time | 20→85ºC within 60 minute |
| Colling time | 20ºC→rated min. temperature within 60/90/120 minute |
temp. and
humidity
adjust method | BTHC balance adjust temperature(humidity) way. |
Chamber
materials | Polyurethane foam plastics compound board(inner: stainless steel pate;
Outer: galvanized copper plate with power coating. |
|
| Controller | Heater | Nickel chromium alloy electrical heater |
| Humidifier | Steam humidifier |
| Fan | Centrifugal fan |
Refrigeration
method | Mechanical compression single grade refrigerating or
mechanical compression two element superposition
refrigeration(water*5) |
Refrigeration
compressor | full closed or semi-closed compressor |
| Refrigerant | HCFC-22 or HCFC-23 |
Refrigeration
heat exchanger | Finned heat exchanger |
Controller
appliance | Operation
interface | 10.5" 800*600 dot matrix color LCD touch screen |
| Running mode | Constant running, Program running |
Procedure
memory
capacity | 120 programmable programs; each program have 100
steps(paragraph), 10 cycle steps(each step have 99
cycles at most) |
| Setting range | Temperature: -100ºC~300ºC ; Humidity:
0%~99.9%RH*4 |
Resolution
ratio | Temperature: 0.01ºC ; Humidity: 0.1%RH*4 |
| Input | PT100 |
Controlling
mode | PID control |
Communication
function | RS-232 interface(optional) |
| Print function | Mini-digital printer(optional) |
Subsidiary
Function | Alarm functions of the upper and lower limits,
self diagnosis, alarm warning, power off protection,
timing fuction(automatic starting and stopping) |
| Water supply | Humidity
system | Epuipped with multistage filtering antipenetration water
purifier(user offer tap water) or user offer distilled
water*4 with resistivity not less than 500Ωm. |
Cooling
recirculating
water system | Water supply pressure: 0.2~0.4MPa;
water temperature<=30ºC. |
| Power supply | AC380±10%V 50±0.5Hz 3-phase 4-wire+protective earth line. |
Standard
configurations | Electrothermal glass observation window, leading hole(80mm), lighting lamp,
accumulative timer. |
| Safaty device | Current circuit breaker, dry heating protector(humidifying system), the water system protection,
the fan overheating protection, compressor overprocess,overheating and overcurrent protection,
open-phase protection, over temperature protection,. |
|
Customized
service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |
Corresponding test standards:(Walk-in Temperature Humidity Environmental Test Machine testing Equipment )| GB/T2423.1-2001 | test A:low temperature test method |
| GB/T2423.2-2001 | test B:high temperature test method |
| GB/T11158-2008 | technical condition of high temperature test chamber |
| GB/T10589-2008 | technical condition of low temperature test chamber |
| GB/T 2423.22-2008 | test Nb:temperature variation test |
| GB/T 2423.4-2008 | test Db:alternating temperature humidity test |
| GB/T 31467.1-2015 | Lithium-ion power battery packs and systems designed for electromobile part 1:
high-power applications test specification. |
| GB/T 31467.2-2015 | Lithium-ion power battery packs and systems designed for electromobile part 2:
high-power applications test specification. |
| GB/T 31467.3-2015 | Lithium-ion power battery packs and systems designed for electromobile part 3:
security requirement and test method. |
| GB/T 31484-2015 | cycle life-time requirements and test method for Lithium-ion traction battery designed for
electromobile |
| GB/T 31485-2015 | security requirements and test method for Lithium-ion traction battery designed for electromobile |
| GB/T 31486-2015 | electrical property requirements and test method for Lithium-ion traction battery designed for
electromobile |
| GB/T 2423.3-2008 | Constant temperature humidity test |
| GJB150.3-2009 | high temperature test |
| GJB150.4-2009 | low temperature test |
| GJB 150.9A-2009 | test standards for temperature humidity test GB/T5170.2-2008 temperature test device. |
| GB/T5170.5-2008 | temperature humidity test devices, meet the requirements of 8.1 alternating temperature
humidity cyclic test in Lithium-ion power battery packs and systems designed electromobile
Part2: test specification for high-energy application. |

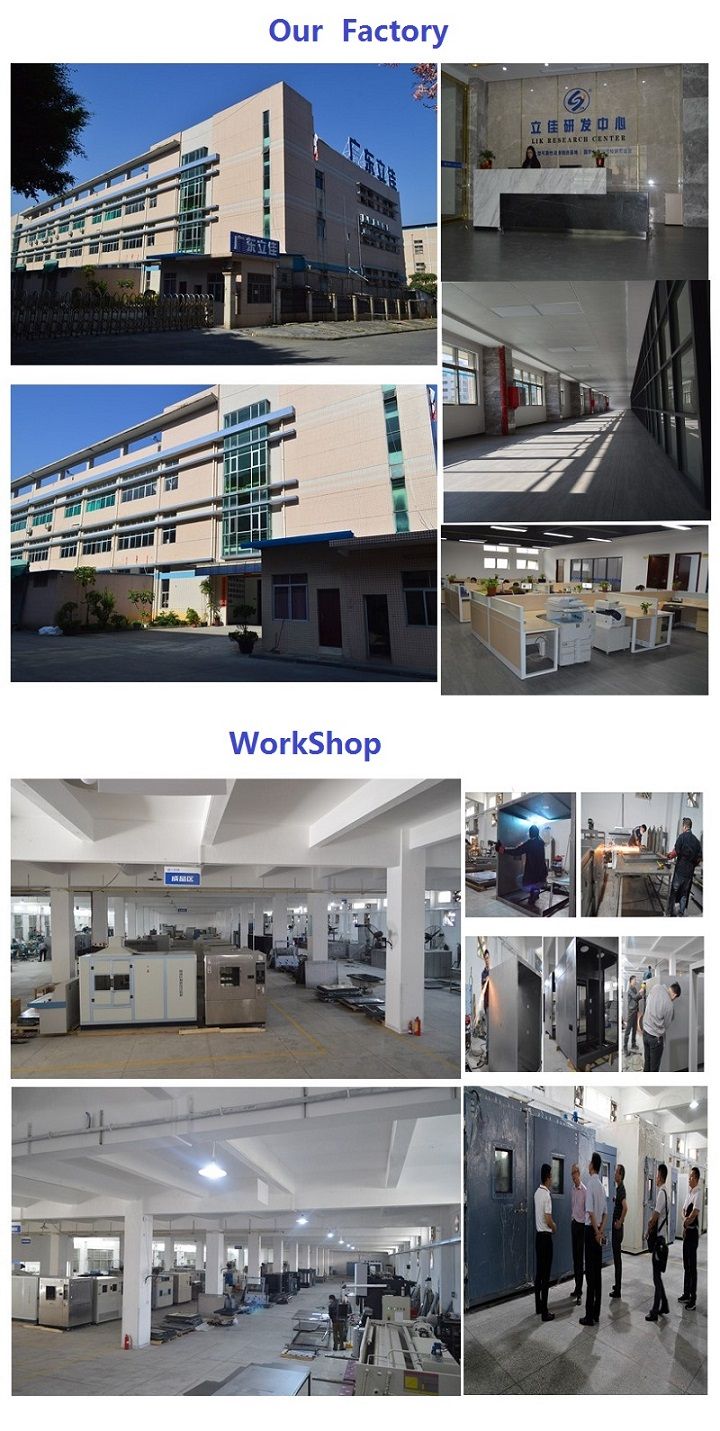

Our FactoryShort introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our ServiceIf you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.1. Pre-service24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: http://en.lik.net.cn/
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .2. After sale service1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?Q1 : Can you customize the product?

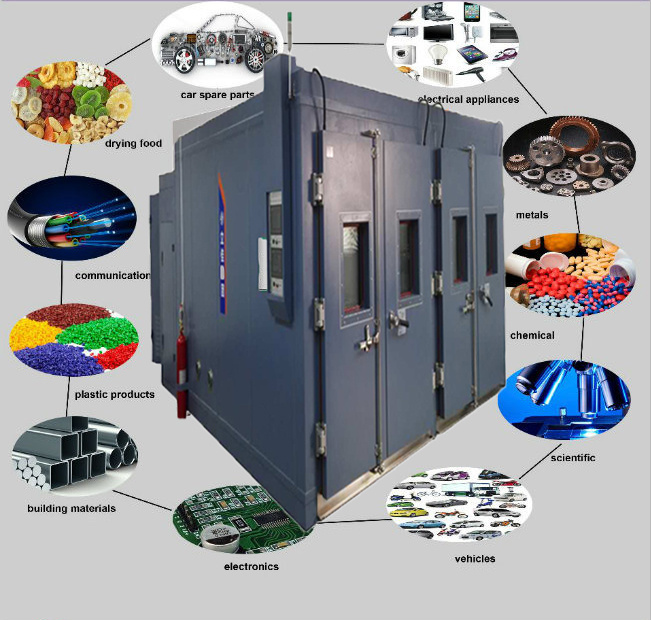

A: Yes, we can customize any products according to requirements.Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information
about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can
find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
How to Contact Us?Please Send your inquiry Details in the below Or send to my mail below directly. We promise reply your inquiry on time.
| Prod Model: |
LJBT(H)P-32 |
| Stainless Steel: |
SUS304 Stainless Steel |
| Type: |
Walk-in Environmental Test Chamber |
| Controller: |
TFT LCD Touch Screen |
| Compressor: |
Original Imported Compressor |
| Temperature Range: |
-60 Degrees to +150 Degrees |
| Humidity Range: |
20%~98%Rh |
| Temp. Deviation: |
±2ºC |
| Humidity Deviation: |
±3.0%Rh |
| Power Supply: |
AC 3 Phase 380V 60/50Hz |
| Volume: |
8-150m3 |
