Warm Edge Insulated Glass
| Price: |
US $ 10/Square Meter |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T,D/P |

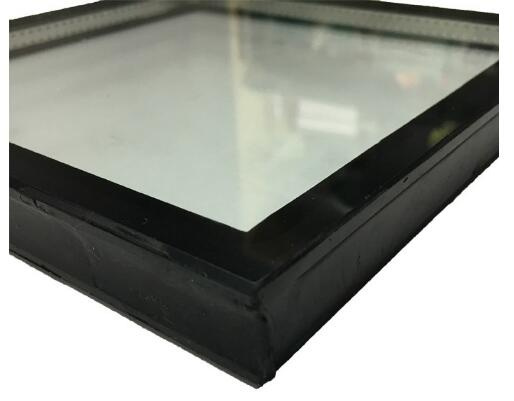

Warm Edge Insulated Glass(Double Glazed) * is manufactured by fusing together 2 panes, or 3 panels of glass spaced by warm edge spacer,filled with dry air or Argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.

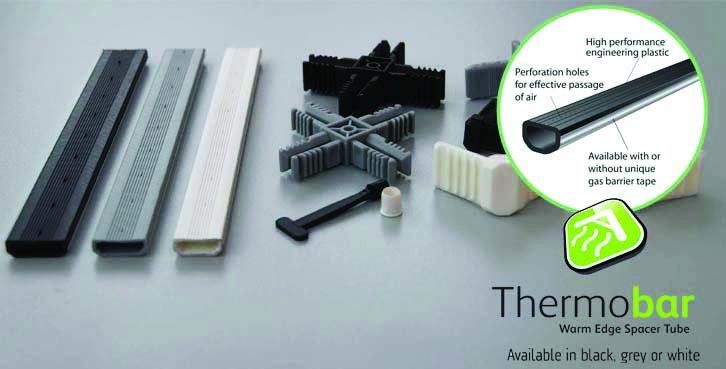

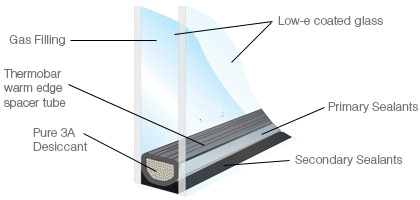

Warm Edge Bar is used to hold glass apart within a sealed unit, spacer tube helps to maintain its structural integrity. It r is a rigid warm edge tube which is made from high performance engineering plastic with a gas diffusion barrier to minimise gas loss from the surface area of the spacer bar.The composition ensures that it is structurally sound while helping to reduce the heat loss at the edge of the glazing unit.
Warm Edge space 6mm.9mm,12mm,14mm ,15mm,16mm,19mm,20mm,25mm etc.Features of Warm Edge Spacer Insulating Glass1.Thermal insulation,Energyg-saving
low heat gain and heat loss value (low U value)U value 1.1 for heat insulation
Heat insulation,which can be 2-5 folds of that commoon glass when choosing proper and different material.
2.Noise reduction,effectively reduce noise 40 db
Gerneral double glazing gkass can reduce the noise above 30dB,and the effect is much better when the inert gas included.
3.Low temperature resistance With good anti-frosting property: the enclosed mixing of desiccant and butyl-rubber ensures that the insulating glass is not dewfall at -50 °C
4.High temperature resistance: macromolecule tackifier improves the high temperature resistant and High moisture resistant properties of insulating glass
5.Ageing resistance: macromolecule raw materials, antideteriorant, ultraviolet absorber and shielded agent can effectively resist the attack of environmental extremes.6.Optical property
Its visible light transmittance is between 10% and 80%,and the reflectivity is between 10% and 40%. Specification| Glass composition | Float glass, laminated glass, tempered glass,low-E glass,tinted glass etc. |
| Thickness | 1. Aluminum Strip Width:6A,9A,12A,15A,16A,18A,19A,25A
2. Glass Thickness:4mm -19mm
Normal thickness:
3. 4mm+6A/9A/12A+4mm; 5+9A+5mm; 6+12A+6mm; 6+16A+6mm;
8+12A+8mm; 8+16A+8mm; etc
4. As customer's requirements. |
| Size | 1. Max size: 2440*6000mm, Min size:300mm*300mm
2. According to the customer requirements |
| Color | Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue,
ocean blue, bronze, dark gray, and golden etc. |
| Shape | 1. semi-circle(min curved radius 1500mm) 2. rectangle 3. arch 4. special shape |
| Filled Gas | 1. air 2. vacuum 3. argon |
| Application | 1. Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements.
2. For use in airport control towers, train windows and other environments that need regulated Airports and buildings near highways and railways,that require sound insulation properties. |
Our Advantages
1. we use top quality raw materials to manufacture insulating to ensure the safe and quality
* glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass
* top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available
* top branded silicone sealant, polysulfide sealant, butyl sealant are available
* top branded molecular or dry agent availble
2. we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.
3.most processing are automatically finished by machines ,the quality is stable

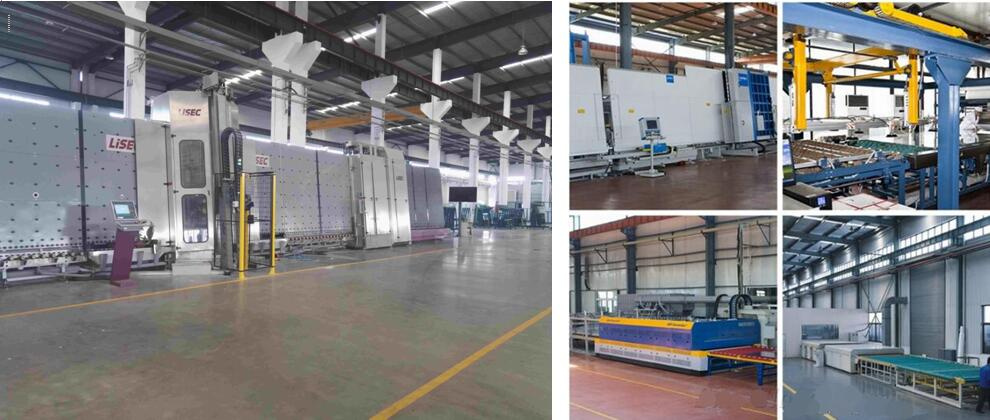

Production Equipment & Machines

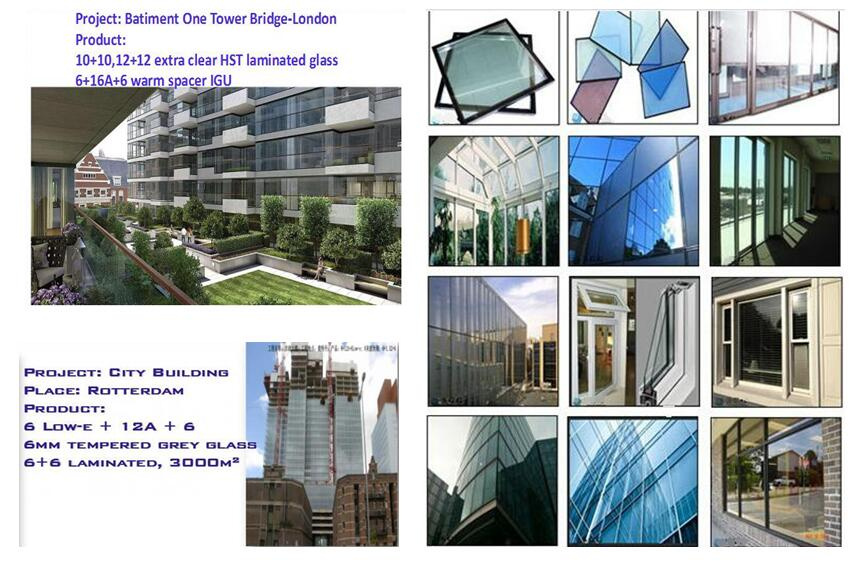

Project & Applications
Factory introductionOur glass factory was founded in 2000, now it is leading glass manufacturer in China. We have three workshops, and are specialized in manufacturing building glass, household appliances glass,with annual producing capability of 750,000sq.meters.For Building Glass, they are toughened glass, laminated glass, insulated glass, acid itched glass, heat soak tested glass, silk-screen printed glass. They are used for swimming pool fence, shower screen, balustrade, balcony, winds, doors, glass wall, glass table,elevator and so on.
For Household Appliance Glass, they are furniture glass for door,table,tv crack,microwave oven door glass, cooktop glass, range hood glass.
We have complete and advanced equipments and machines for making glass.They are imported from USA, Italy Bottero, Finland Tamglass, South Korea Ekang etc. The products have been certificated and approved by AS/NZS 2208: 1996, ISO9002, SGCC: ANSI Z97.1 CPSC 16 CFR 1201, TNO: EN12150, CCC(3C), etc. With high-grade quality and good controlling system, the products have been exported to USA, Australia, New Zealand, U. K., Holland, Norway, Germany, Japan, South Africa and Singapore.
| Shape: |
Flat |
| Structure: |
Hollow |
| Air Cavity Depth: |
12mm |
| Moh's Hardness: |
8 |
| Deep Processing Depth: |
Toughened Glass |
| Color: |
Clear |
| Usage: |
Window |
| Type: |
Insulated Glass |
| Energy Transfer: |
Low Emission |
Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters
Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).
In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.
No matter where you are! We are looking forward to working with you in the near future.
Our Business Advantage
1) stable and mature deep-processing technology
2)skilled workers and engineers team & advanced business management mode
3)specialized production & competitive cost
We manufacture the following high quality glass products
1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.
2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.
3)Laminated Glass Products: Large size laminated, color PVB film laminated
Glass, balustrade glass, ceiling glass, curtain wall glass
